HXY MOSFETDatasheet (PDF)

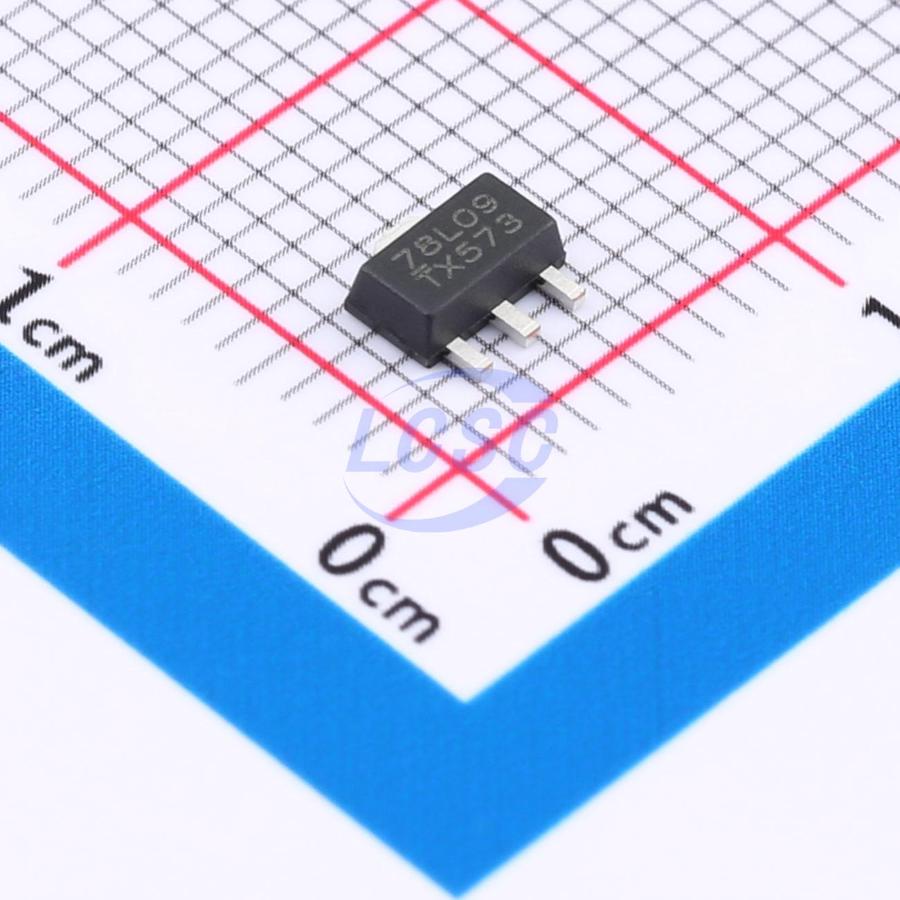

L78L09ABUTR-HXY
9V Positive Fixed SOT-89 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89RoHSActive
Low Dropout Linear Regulator
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- L78L09ABUTR-HXY
- Store part #
- C42411821
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
980 in stock
#C42411821
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.51 | ₹72.55 |
| 50+ | ₹11.47 | ₹573.50 |
| 150+ | ₹9.96 | ₹1,494.00 |
| 1,000+ | ₹8.81 | ₹8,810.00 |
| 2,000+ | ₹7.90 | ₹15,800.00 |
| 5,000+ | ₹7.45 | ₹37,250.00 |
5 × ₹14.51
₹72.55
excl. GST
₹85.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
L78L09ABUTR-HXY
₹72.55 for 5 + GST
Specifications
- Output Voltage
- 9V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 5.5mA
- Output Configuration
- Positive
- Operating Voltage
- 30V
- Output Current
- 150mA
- Output Type
- Fixed
- Features
- Thermal shutdown;Short Circuit Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.153 g
Overview
The L78LxxABUTR is a three-terminal positive voltage regulator capable of delivering up to 150mA output current. The regulator features built-in current limiting and thermal shutdown protection, making it essentially immune to overload conditions. When used as a replacement for Zener diode-resistor combinations, it provides significant improvement in output impedance while reducing quiescent current.
Key features
- Output current 150mA
- Thermal overload protection
- Short circuit protection
- Output transistor safe operating area protection
- No external components required
- Package: SOT-89
- Output voltage accuracy: ±5% tolerance
