UMW
XC6206P332MRLinear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-23
From
₹2.53
18,64,000 in stock
STDatasheet (PDF)

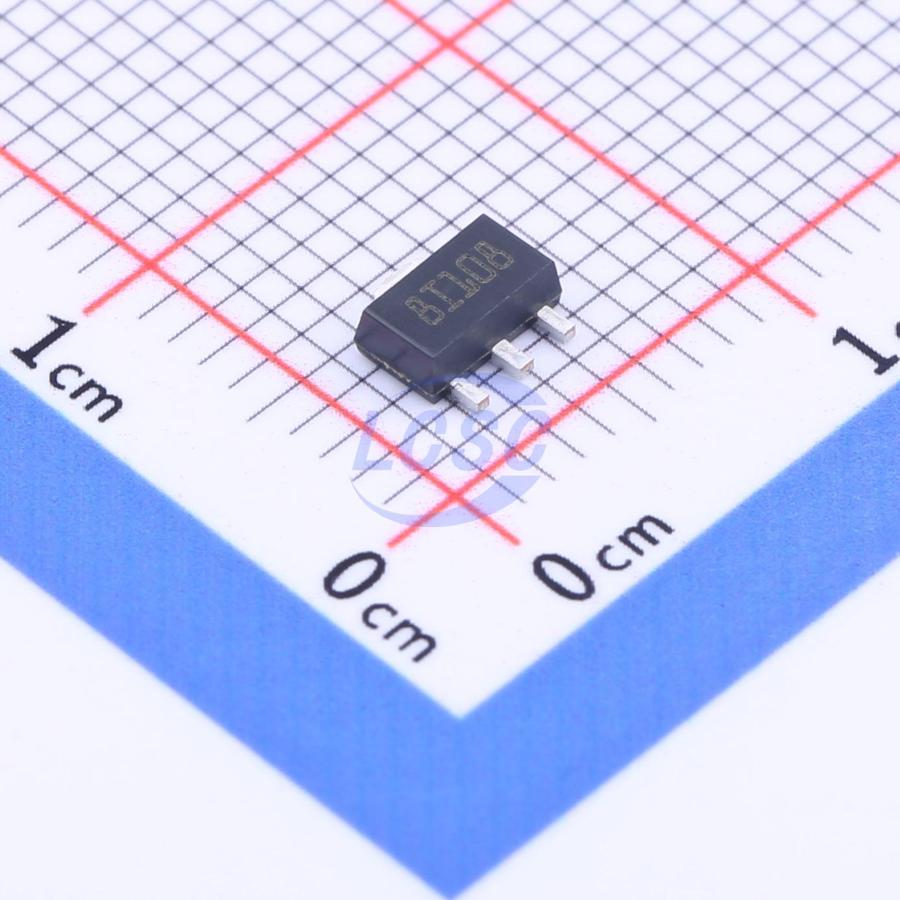

L78L10ACUTR
10V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-89-3ROHS3 CompliantActive
0.1A Positive Voltage Regulator
- Manufacturer
- ST
- Manufacturer part #
- L78L10ACUTR
- Store part #
- C222250
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,900 in stock
#C222250
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.61 | ₹153.05 |
| 50+ | ₹24.66 | ₹1,233.00 |
| 150+ | ₹22.09 | ₹3,313.50 |
| 500+ | ₹18.91 | ₹9,455.00 |
| 2,500+ | ₹17.49 | ₹43,725.00 |
| 5,000+ | ₹16.64 | ₹83,200.00 |
5 × ₹30.61
₹153.05
excl. GST
₹180.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
L78L10ACUTR
₹153.05 for 5 + GST
Specifications
- Output Voltage
- 10V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 6mA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 23V
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.186 g
Overview
The L78L series of three-terminal positive regulators employ internal current limiting and thermal shutdown, making them essentially indestructible. If adequate heat-sink is provided, they can deliver up to 100 mA output current. They are intended as fixed voltage regulators in a wide range of applications including local or oncard regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, they can be used with power pass elements to make high-current voltage regulators. The L78L series used as Zener diode/resistor combination replacement, offers e improvement along with lower quiescent current and lower noise.
Key features
- Output current up to 100 mA
- Output voltages of 3.3; 5; 6; 8; 9; 10; 12; 15; 18; 24 V
- Thermal overload protection
- Short-circuit protection
- No external components are required
- Available in either ± 4% (A) or ± 8% (C) selection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 78L10#C41424779HXY MOSFET · SOT-89 | HXY MOSFET | SOT-89 | 10 | ₹6.68 · 10 in stock | View |
 | 78L10A#C22400115Shikues · SOT-89 | Shikues | SOT-89 | 540 | ₹7.13 · 540 in stock | View |
 | PJ78L10SQ#C41784042PJSEMI · SOT-89 | PJSEMI | SOT-89 | 180 | ₹8.43 · 180 in stock | View |
 | MS78L10#C2914435MSKSEMI · SOT-89 | MSKSEMI | SOT-89 | On request | ₹9.92 · 0 in stock | View |
| 78L10#C41433762YFW · SOT-89 | YFW | SOT-89 | 920 | ₹9.02 · 920 in stock | View | |
