STDatasheet (PDF)

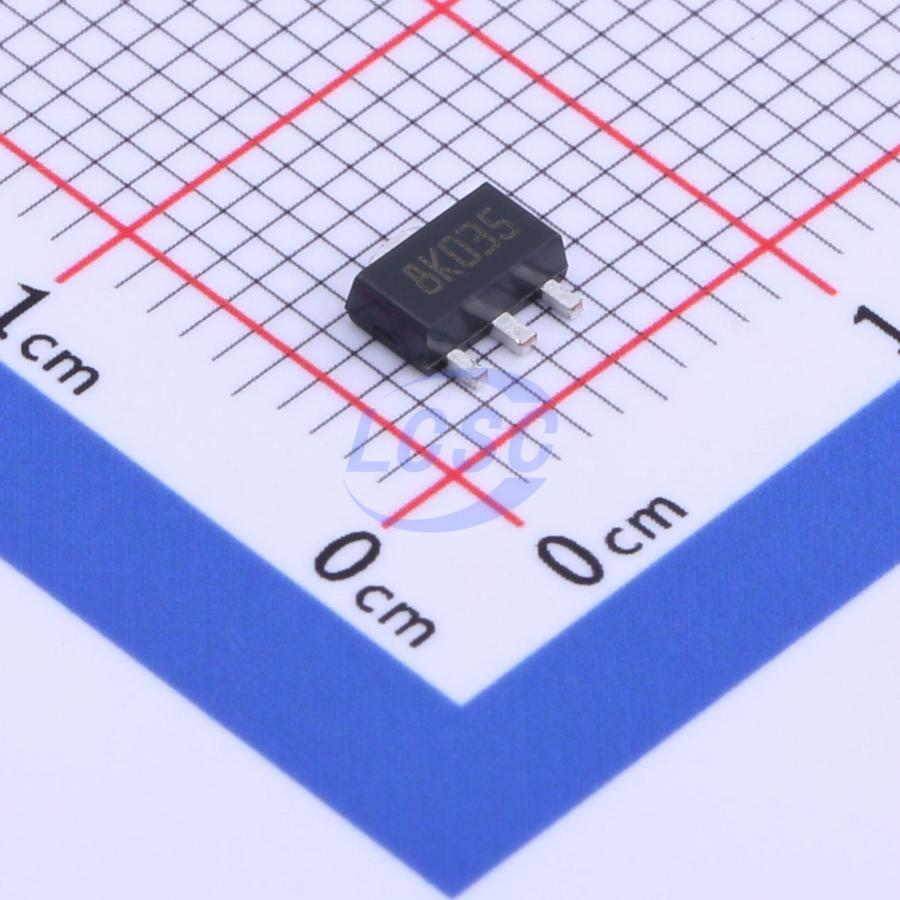

L78L12ABUTR
12V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-89-3ROHS3 CompliantActive
0.1A Positive Voltage Regulator
- Manufacturer
- ST
- Manufacturer part #
- L78L12ABUTR
- Store part #
- C915681
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
99,885 in stock
#C915681
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.64 | ₹108.20 |
| 50+ | ₹17.50 | ₹875.00 |
| 150+ | ₹15.44 | ₹2,316.00 |
| 500+ | ₹13.88 | ₹6,940.00 |
| 2,500+ | ₹12.65 | ₹31,625.00 |
| 5,000+ | ₹12.03 | ₹60,150.00 |
5 × ₹21.64
₹108.20
excl. GST
₹127.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
L78L12ABUTR
₹108.20 for 5 + GST
Specifications
- Output Voltage
- 12V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 6.5mA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 35V
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.184 g
Overview
The L78L series of three-terminal positive regulators employ internal current limiting and thermal shutdown, making them essentially indestructible. If adequate heat-sink is provided, they can deliver up to 100 mA output current. They are intended as fixed voltage regulators in a wide range of applications including local or oncard regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, they can be used with power pass elements to make high-current voltage regulators. The L78L series used as Zener diode/resistor combination replacement, offers e improvement along with lower quiescent current and lower noise.
Key features
- Output current up to 100 mA
- Output voltages of 3.3; 5; 6; 8; 9; 10; 12; 15; 18; 24 V
- Thermal overload protection
- Short-circuit protection
- No external components are required
- Available in either ± 4% (A) or ± 8% (C) selection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | UA78L12ACPKG3#C7372179TI · SOT-89-3 | TI | SOT-89-3 | 2 | ₹32.18 · 2 in stock | View |
 | CJ78L12C-P3T-ARG#C17703102JSCJ · SOT-89-3L | JSCJ | SOT-89-3L | 2,900 | ₹10.27 · 2,900 in stock | View |
 | 78L12K#C22400122Shikues · SOT-89 | Shikues | SOT-89 | 190 | ₹7.33 · 190 in stock | View |
 | 78L12#C5364240Guangdong Hottech · SOT-89 | Guangdong Hottech | SOT-89 | 80 | ₹7.86 · 80 in stock | View |
 | L78L12ABUTR-CN#C42419950ChipNobo · SOT-89-3L | ChipNobo | SOT-89-3L | 40 | ₹5.91 · 40 in stock | View |
