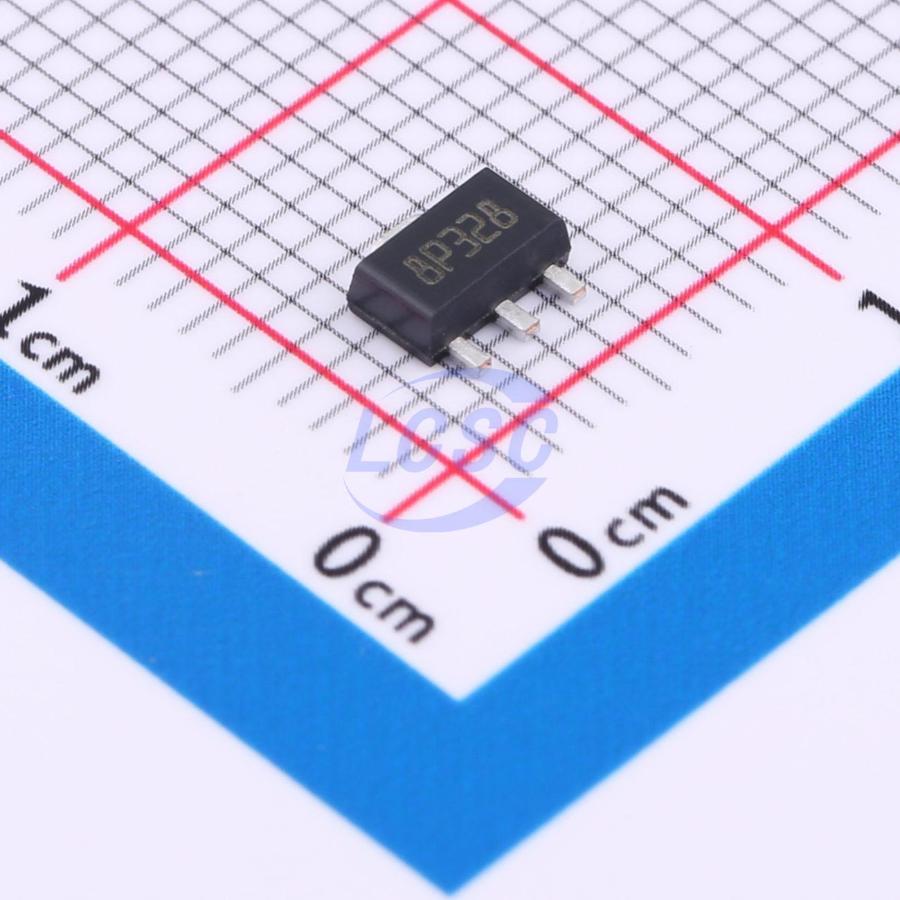

L78L24ACUTR
24V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-89-3ROHS3 CompliantActive
0.1A Positive Voltage Regulator
- Manufacturer
- ST
- Manufacturer part #
- L78L24ACUTR
- Store part #
- C130141
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,420 in stock
#C130141
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹48.17 | ₹240.85 |
| 50+ | ₹38.33 | ₹1,916.50 |
| 150+ | ₹34.11 | ₹5,116.50 |
| 500+ | ₹28.84 | ₹14,420.00 |
| 2,500+ | ₹26.49 | ₹66,225.00 |
| 5,000+ | ₹25.08 | ₹1,25,400.00 |
5 × ₹48.17
₹240.85
excl. GST
₹284.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
L78L24ACUTR
₹240.85 for 5 + GST
Specifications
- Output Voltage
- 24V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 6.5mA
- Output Configuration
- Positive
- Operating Voltage
- 40V
- Output Current
- 100mA
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.133 g
Overview
The L78L series of three-terminal positive regulators employ internal current limiting and thermal shutdown, making them essentially indestructible. If adequate heat-sink is provided, they can deliver up to 100 mA output current. They are intended as fixed voltage regulators in a wide range of applications including local or oncard regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, they can be used with power pass elements to make high-current voltage regulators. The L78L series used as Zener diode/resistor combination replacement, offers e improvement along with lower quiescent current and lower noise.
Key features
- Output current up to 100 mA
- Output voltages of 3.3; 5; 6; 8; 9; 10; 12; 15; 18; 24 V
- Thermal overload protection
- Short-circuit protection
- No external components are required
- Available in either ± 4% (A) or ± 8% (C) selection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 78L24#C49333153TECH PUBLIC · SOT-89-3 | TECH PUBLIC | SOT-89-3 | 830 | ₹8.23 · 830 in stock | View |
 | TP78L24T3#C49333206TECH PUBLIC · SOT-89-3 | TECH PUBLIC | SOT-89-3 | 2,940 | ₹9.71 · 2,940 in stock | View |
 | 78L24G#C49333154TECH PUBLIC · SOT-89-3 | TECH PUBLIC | SOT-89-3 | 850 | ₹8.20 · 850 in stock | View |
| DI78L24UAB#C3752872DIOTEC · SOT-89 | DIOTEC | SOT-89 | On request | ₹13.96 · 0 in stock | View | |
 | LM78L24F#C465005HTC · SOT-89-3 | HTC | SOT-89-3 | On request | ₹26.38 · 0 in stock | View |
