UMW
XC6206P332MRLinear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-23
From
₹2.53
18,64,000 in stock
STDatasheet (PDF)

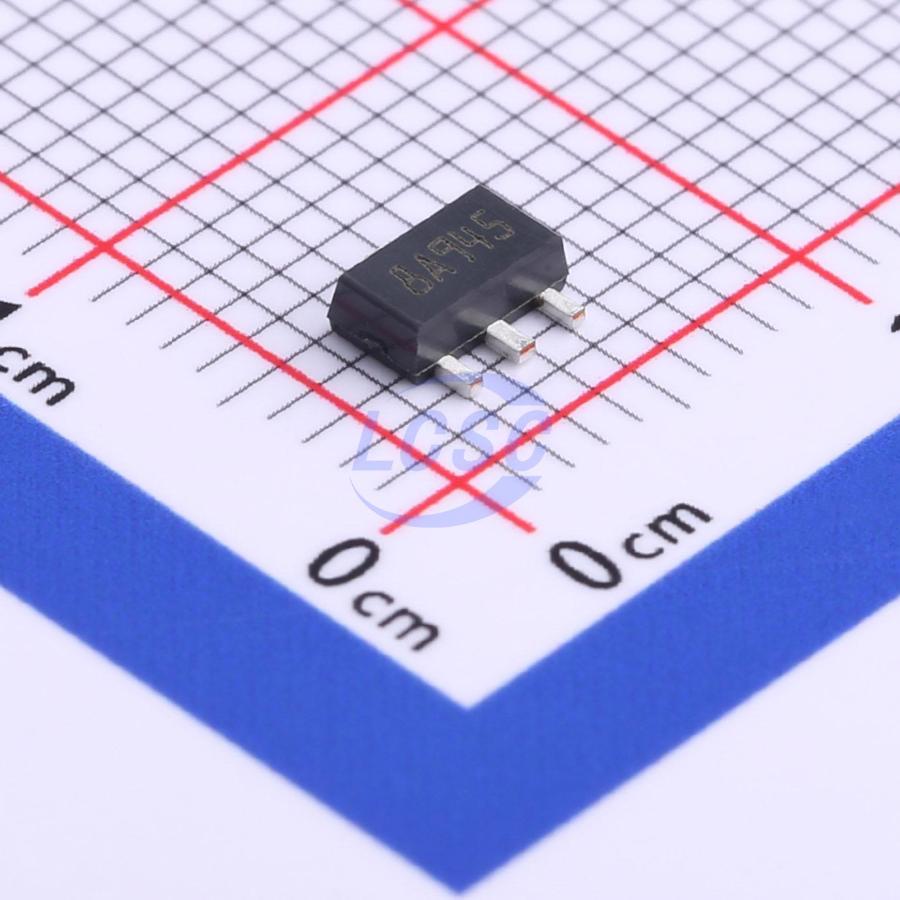

L78L33ACUTR
3.3V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-89-3ROHS3 CompliantActive
0.1A Positive Voltage Regulator
- Manufacturer
- ST
- Manufacturer part #
- L78L33ACUTR
- Store part #
- C14170
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,64,865 in stock
#C14170
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.40 | ₹92.00 |
| 50+ | ₹15.29 | ₹764.50 |
| 150+ | ₹13.75 | ₹2,062.50 |
| 500+ | ₹12.58 | ₹6,290.00 |
| 2,500+ | ₹11.66 | ₹29,150.00 |
| 5,000+ | ₹11.19 | ₹55,950.00 |
5 × ₹18.40
₹92.00
excl. GST
₹108.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
L78L33ACUTR
₹92.00 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 6mA
- Output Configuration
- Positive
- Operating Voltage
- 30V
- Output Current
- 100mA
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.253 g
Overview
The L78L series of three-terminal positive regulators employ internal current limiting and thermal shutdown, making them essentially indestructible. If adequate heat-sink is provided, they can deliver up to 100 mA output current. They are intended as fixed voltage regulators in a wide range of applications including local or oncard regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, they can be used with power pass elements to make high-current voltage regulators. The L78L series used as Zener diode/resistor combination replacement, offers e improvement along with lower quiescent current and lower noise.
Key features
- Output current up to 100 mA
- Output voltages of 3.3; 5; 6; 8; 9; 10; 12; 15; 18; 24 V
- Thermal overload protection
- Short-circuit protection
- No external components are required
- Available in either ± 4% (A) or ± 8% (C) selection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 78L33-150#C42370415UMW · SOT-89 | UMW | SOT-89 | 550 | ₹7.00 · 550 in stock | View |
 | 78L33#C2999140Shikues · SOT-89-3 | Shikues | SOT-89-3 | 37,190 | ₹9.70 · 37,190 in stock | View |
 | L78L33ACUTR-HXY#C19626996HXY MOSFET · SOT-89 | HXY MOSFET | SOT-89 | 65 | ₹10.98 · 65 in stock | View |
 | SL78L33#C5330401Slkor · SOT-89 | Slkor | SOT-89 | 850 | ₹12.32 · 850 in stock | View |
 | 78L33#C46061585GOODWORK · SOT-89 | GOODWORK | SOT-89 | 3,410 | ₹5.83 · 3,410 in stock | View |
