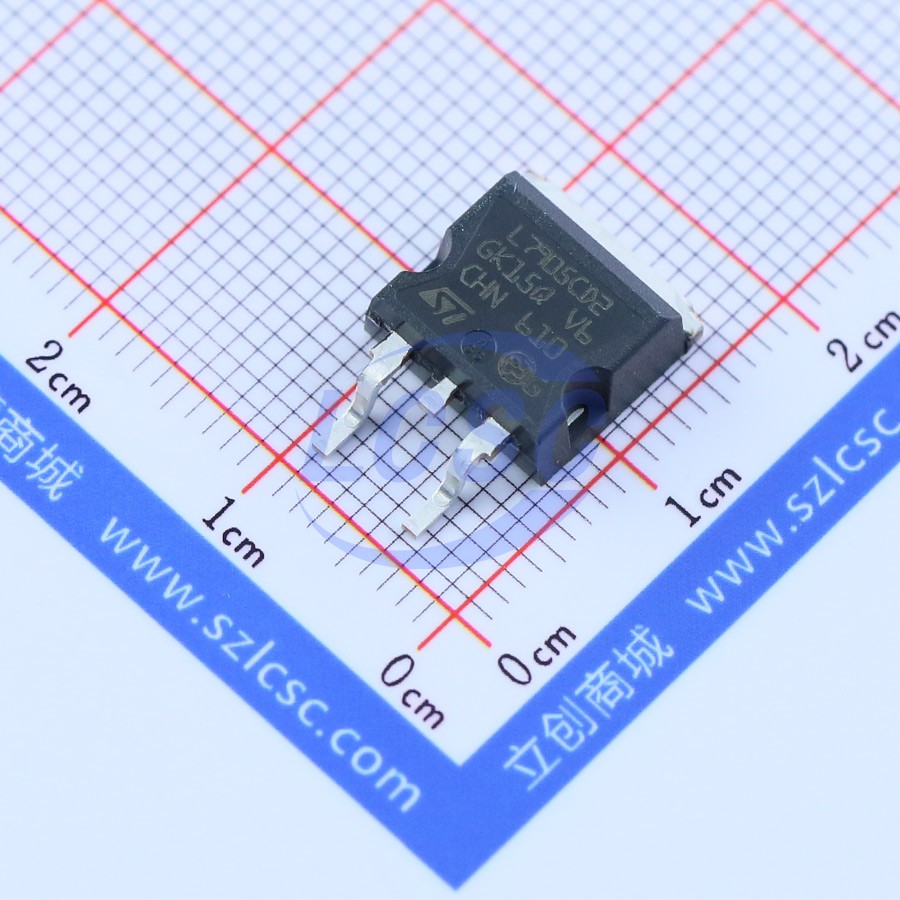

L7905CD2T-TR
5V Negative Fixed TO-263-2 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-263-2ROHS3 CompliantActive
Negative Voltage Regulator
- Manufacturer
- ST
- Manufacturer part #
- L7905CD2T-TR
- Store part #
- C28684
- Package / case
- TO-263-2
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
299 in stock
#C28684
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹143.96 | ₹143.96 |
| 10+ | ₹122.39 | ₹1,223.90 |
| 30+ | ₹111.73 | ₹3,351.90 |
| 100+ | ₹101.05 | ₹10,105.00 |
| 500+ | ₹94.74 | ₹47,370.00 |
| 1,000+ | ₹91.26 | ₹91,260.00 |
1 × ₹143.96
₹143.96
excl. GST
₹169.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
L7905CD2T-TR
₹143.96 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+150℃@(Tj)
- Supply Current (Iq)
- 3mA
- Output Configuration
- Negative
- Operating Voltage
- 35V
- Output Current
- 1.5A
- Features
- Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.915 g
Overview
The L79xxC series of three-terminal negative regulators is available in TO-220, TO-220FP and D²PAK packages and several fixed output voltages, making it useful in a wide range of applications. These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation; furthermore, having the same voltage option as the L78xx positive standard series, they are particularly suited for split power supplies. If adequate heat sinking is provided, they can deliver over 1.5 A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltages and currents.
Key features
- Output current up to 1.5 A
- Output voltages of - 5; - 8; - 12; - 15 V
- Thermal overload protection
- Short circuit protection
- Output transition SOA protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | L7905ACD2T-TR#C2943060ST · D2PAK | ST | D2PAK | 757 | ₹88.68 · 757 in stock | View |
 | LM7905S2/TR#C22461717HGSEMI · TO-263-2 | HGSEMI | TO-263-2 | 120 | ₹33.26 · 120 in stock | View |
 | LM7905CS2/TR#C22461607HGSEMI · TO-263-2 | HGSEMI | TO-263-2 | 245 | ₹35.38 · 245 in stock | View |
