STDatasheet (PDF)

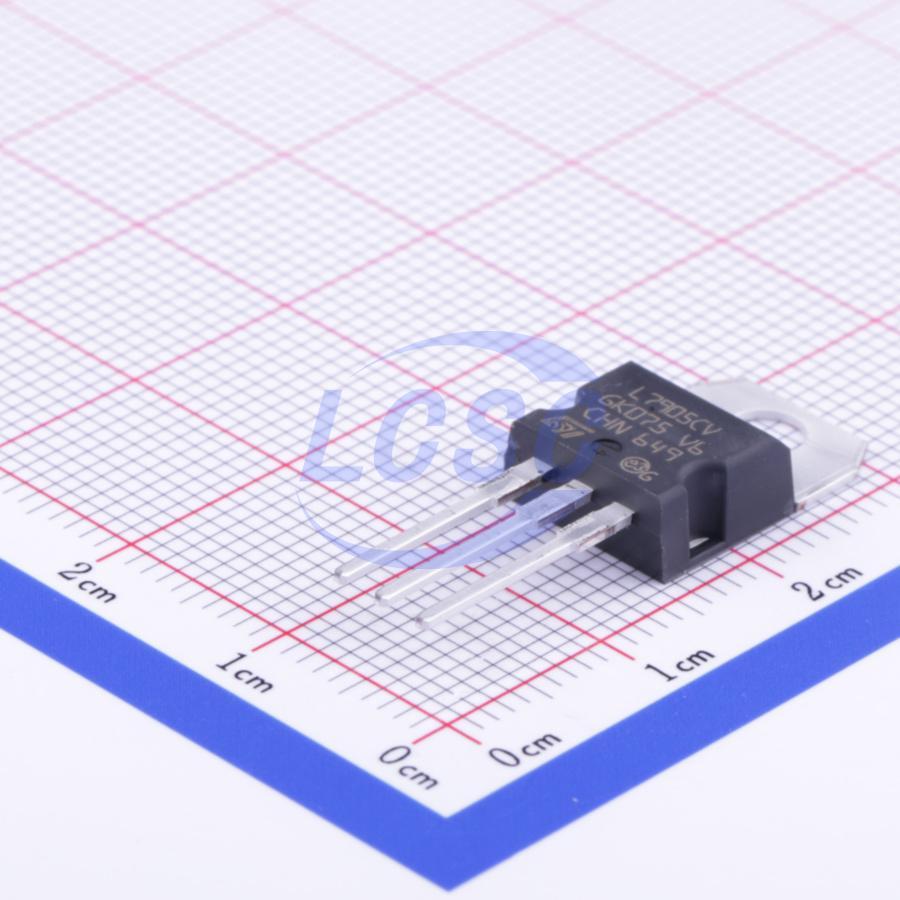

L7905CV
5V Negative Fixed TO-220 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-220ROHS3 CompliantActive
Negative Voltage Regulator
- Manufacturer
- ST
- Manufacturer part #
- L7905CV
- Store part #
- C111884
- Package / case
- TO-220
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,140 in stock
#C111884
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹51.85 | ₹259.25 |
| 50+ | ₹42.88 | ₹2,144.00 |
| 150+ | ₹39.03 | ₹5,854.50 |
| 500+ | ₹34.23 | ₹17,115.00 |
| 2,500+ | ₹32.10 | ₹80,250.00 |
| 5,000+ | ₹30.81 | ₹1,54,050.00 |
5 × ₹51.85
₹259.25
excl. GST
₹305.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
L7905CV
₹259.25 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 3mA
- Output Configuration
- Negative
- Operating Voltage
- 20V
- Output Current
- 1.5A
- Features
- Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 2.74 g
Overview
The L79xxC series of three-terminal negative regulators is available in TO-220, TO-220FP and D²PAK packages and several fixed output voltages, making it useful in a wide range of applications. These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation; furthermore, having the same voltage option as the L78xx positive standard series, they are particularly suited for split power supplies. If adequate heat sinking is provided, they can deliver over 1.5 A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltages and currents.
Key features
- Output current up to 1.5 A
- Output voltages of - 5; - 8; - 12; - 15 V
- Thermal overload protection
- Short circuit protection
- Output transition SOA protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | L7905CV-DG#C3799ST · TO-220 | ST | TO-220 | 450 | ₹47.18 · 450 in stock | View |
 | L7905ACV#C2936098ST · TO-220 | ST | TO-220 | 9,550 | ₹33.70 · 9,550 in stock | View |
 | L7905CV#C5377675Minos · TO-220 | Minos | TO-220 | 45 | ₹28.64 · 45 in stock | View |
 | L7905CAT#C51898332GREENMICRO · TO-220-3 | GREENMICRO | TO-220-3 | 895 | ₹25.71 · 895 in stock | View |
 | CJ7905#C135945JSCJ · TO-220 | JSCJ | TO-220 | 86 | ₹60.42 · 86 in stock | View |
