STDatasheet (PDF)

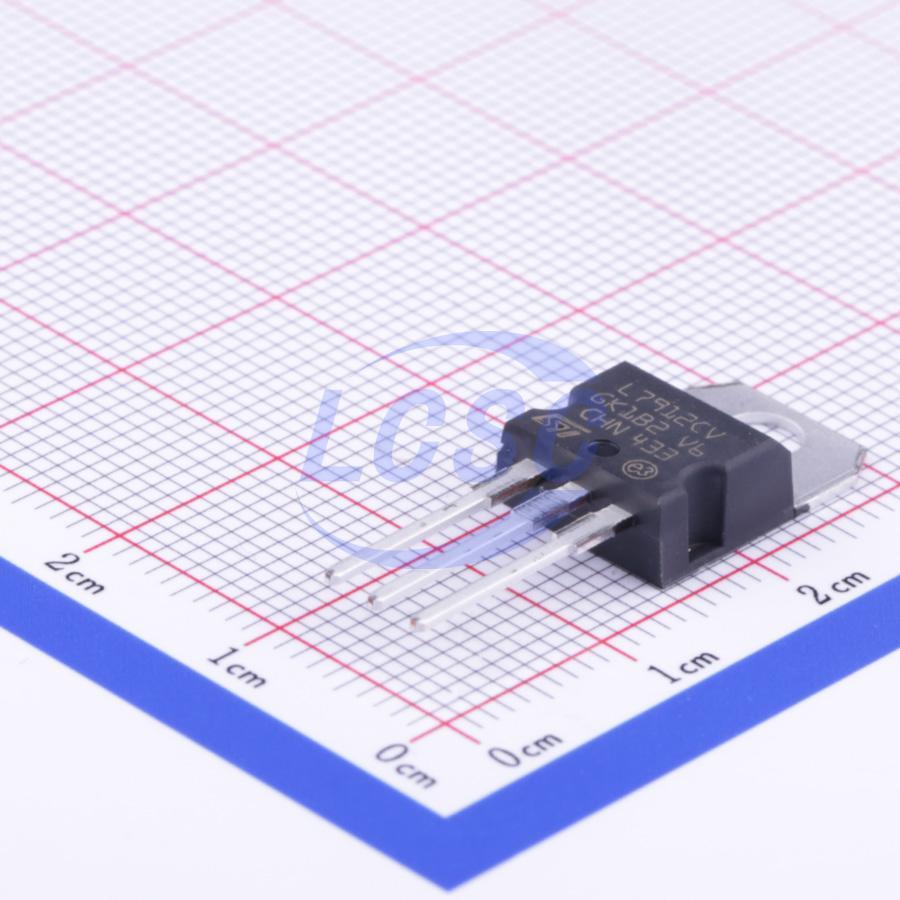

L7912CV
12V Negative Fixed TO-220 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-220ROHS3 CompliantActive
Negative Voltage Regulator
- Manufacturer
- ST
- Manufacturer part #
- L7912CV
- Store part #
- C111886
- Package / case
- TO-220
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,023 in stock
#C111886
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹56.51 | ₹56.51 |
| 10+ | ₹44.77 | ₹447.70 |
| 30+ | ₹39.77 | ₹1,193.10 |
| 100+ | ₹33.68 | ₹3,368.00 |
| 500+ | ₹30.87 | ₹15,435.00 |
| 1,000+ | ₹29.12 | ₹29,120.00 |
1 × ₹56.51
₹56.51
excl. GST
₹66.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
L7912CV
₹56.51 for 1 + GST
Specifications
- Output Voltage
- 12V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+150℃@(Tj)
- Supply Current (Iq)
- 3mA
- Output Configuration
- Negative
- Operating Voltage
- 27V
- Output Current
- 1.5A
- Features
- Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.74 g
Overview
The L79xxC series of three-terminal negative regulators is available in TO-220, TO-220FP and D²PAK packages and several fixed output voltages, making it useful in a wide range of applications. These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation; furthermore, having the same voltage option as the L78xx positive standard series, they are particularly suited for split power supplies. If adequate heat sinking is provided, they can deliver over 1.5 A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltages and currents.
Key features
- Output current up to 1.5 A
- Output voltages of - 5; - 8; - 12; - 15 V
- Thermal overload protection
- Short circuit protection
- Output transition SOA protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | L7912ACV#C163542ST · TO-220 | ST | TO-220 | 1,828 | ₹94.58 · 1,828 in stock | View |
 | L7912CV-DG#C3797ST · TO-220 | ST | TO-220 | 38,162 | ₹55.39 · 38,162 in stock | View |
 | CJ7912#C135944JSCJ · TO-220 | JSCJ | TO-220 | 7 | ₹57.80 · 7 in stock | View |
 | L7912CV#C7587858Minos · TO-220 | Minos | TO-220 | 45 | ₹28.05 · 45 in stock | View |
 | HL7912CV#C41381866HXY MOSFET · TO-220S | HXY MOSFET | TO-220S | 30 | ₹37.65 · 30 in stock | View |
