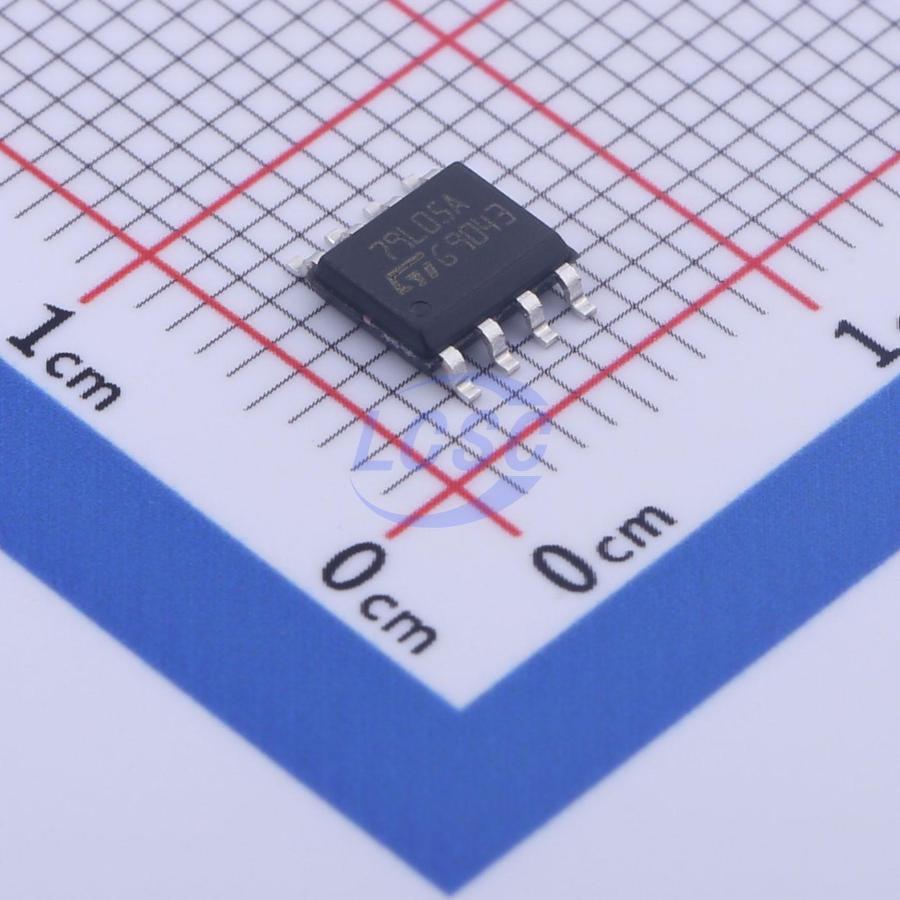

L79L05ACD13TR
5V Negative Fixed SO-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SO-8ROHS3 CompliantActive
Negative Voltage Regulator
- Manufacturer
- ST
- Manufacturer part #
- L79L05ACD13TR
- Store part #
- C2802525
- Package / case
- SO-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,695 in stock
#C2802525
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.02 | ₹135.10 |
| 50+ | ₹21.13 | ₹1,056.50 |
| 150+ | ₹18.60 | ₹2,790.00 |
| 500+ | ₹15.45 | ₹7,725.00 |
| 2,500+ | ₹14.05 | ₹35,125.00 |
| 5,000+ | ₹13.20 | ₹66,000.00 |
5 × ₹27.02
₹135.10
excl. GST
₹159.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
L79L05ACD13TR
₹135.10 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 6mA
- Output Configuration
- Negative
- Output Current
- 100mA
- Operating Voltage
- 30V
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.237 g
Overview
The L79L series of three-terminal negative regulators employ internal current limiting and thermal shutdown, making them essentially indestructible. If adequate heat-sink is provided, they can deliver up to 100 mA output current. They are intended as fixed voltage regulators in a wide range of applications including local or oncard regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, they can be used with power pass elements to make high-current voltage regulators. The L79L series used as Zener diode/resistor combination replacement, offers an effective output impedance improvement of typically two orders of magnitude, along with lower quiescent current and lower noise.
Key features
- Output current up to 100 mA
- Output voltages of -5; -8; -12; -15 V
- Thermal overload protection
- Short-circuit protection
- No external components are required
- Available in ±5% (AC) or ±10% (C) selection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC79L05ACDR2G#C154823onsemi · SOIC-8 | onsemi | SOIC-8 | 5,385 | ₹20.68 · 5,385 in stock | View |
 | L79L05ABD13TR#C222122ST · SOIC-8-150mil | ST | SOIC-8-150mil | On request | ₹38.82 · 0 in stock | View |
 | MC79L05ABDG#C71401onsemi · SOIC-8 | onsemi | SOIC-8 | On request | ₹78.33 · 0 in stock | View |
