STDatasheet (PDF)

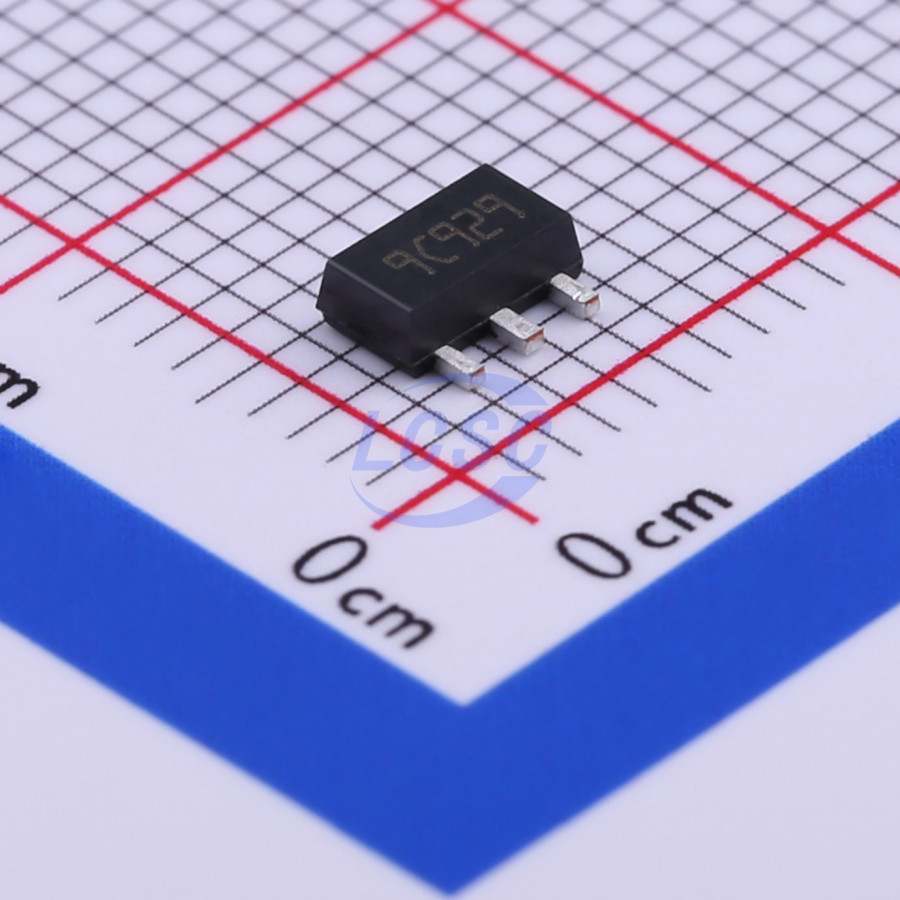

L79L05ACUTR
5V Negative Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-89-3ROHS3 CompliantActive
Negative Voltage Regulator
- Manufacturer
- ST
- Manufacturer part #
- L79L05ACUTR
- Store part #
- C157511
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,685 in stock
#C157511
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹105.47 | ₹105.47 |
| 10+ | ₹84.38 | ₹843.80 |
| 30+ | ₹73.94 | ₹2,218.20 |
| 100+ | ₹63.50 | ₹6,350.00 |
| 500+ | ₹57.19 | ₹28,595.00 |
| 1,000+ | ₹53.94 | ₹53,940.00 |
1 × ₹105.47
₹105.47
excl. GST
₹124.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
L79L05ACUTR
₹105.47 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 6mA
- Output Configuration
- Negative
- Operating Voltage
- 30V
- Output Current
- 100mA
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.185 g
Overview
The L79L series of three-terminal negative regulators employ internal current limiting and thermal shutdown, making them essentially indestructible. If adequate heat-sink is provided, they can deliver up to 100 mA output current. They are intended as fixed voltage regulators in a wide range of applications including local or oncard regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, they can be used with power pass elements to make high-current voltage regulators. The L79L series used as Zener diode/resistor combination replacement, offers an effective output impedance improvement of typically two orders of magnitude, along with lower quiescent current and lower noise.
Key features
- Output current up to 100 mA
- Output voltages of -5; -8; -12; -15 V
- Thermal overload protection
- Short-circuit protection
- No external components are required
- Available in ±5% (AC) or ±10% (C) selection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 79L05#C19273146LGE · SOT-89 | LGE | SOT-89 | 240 | ₹8.24 · 240 in stock | View |
 | 79L05#C2891834YONGYUTAI · SOT-89-3 | YONGYUTAI | SOT-89-3 | 1,050 | ₹10.72 · 1,050 in stock | View |
 | MS79L05#C2914438MSKSEMI · SOT-89 | MSKSEMI | SOT-89 | 280 | ₹9.95 · 280 in stock | View |
 | 79L05#C42395204KUU · SOT-89 | KUU | SOT-89 | 40 | ₹5.68 · 40 in stock | View |
 | 79L05#C5246137TWGMC · SOT-89 | TWGMC | SOT-89 | 450 | ₹10.49 · 450 in stock | View |
