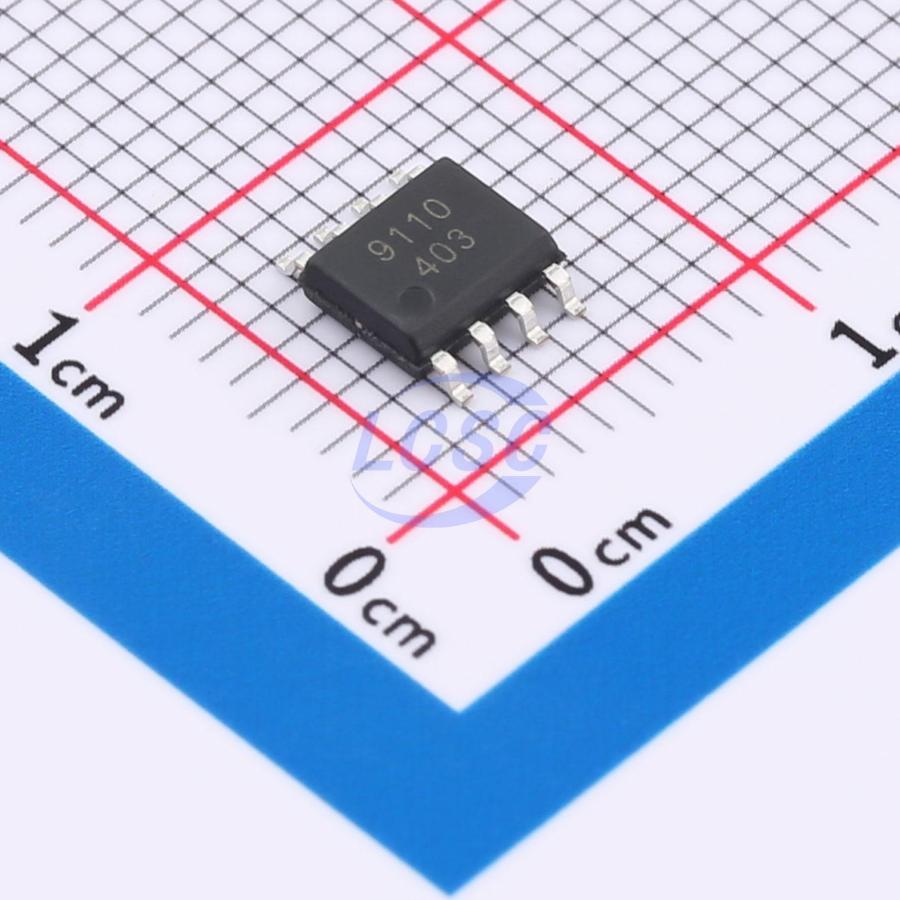

L9110-C
2.5V~12V SOP-8 Motor Drivers, Controllers
L9110-C Integrated Motor Driver Solution
- Manufacturer
- MSKSEMI
- Manufacturer part #
- L9110-C
- Store part #
- C30197468
- Package / case
- SOP-8
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,155 in stock
#C30197468
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.90 | ₹104.50 |
| 50+ | ₹16.56 | ₹828.00 |
| 150+ | ₹14.70 | ₹2,205.00 |
| 500+ | ₹12.38 | ₹6,190.00 |
| 2,500+ | ₹10.91 | ₹27,275.00 |
| 5,000+ | ₹10.29 | ₹51,450.00 |
5 × ₹20.90
₹104.50
excl. GST
₹123.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
L9110-C
₹104.50 for 5 + GST
Specifications
- Features
- Interleaved conduction protection
- Technology
- Yes
- Voltage - Supply
- 2.5V~12V
- Operating Temperature
- -40℃~+150℃
- Supply Current (Iq)
- 200uA
- Output Current
- 1.2A
- Peak Current
- 2A
- RDS(on)
- 450mΩ
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.158 g
Overview
L9110-C provides an integrated motor driver solution for consumer products, toys, and other low-voltage or battery-powered motion control applications. The device is capable of driving a DC brushless motor, featuring an internal charge pump to generate the required gate drive voltage and an H-bridge composed of four power NMOS transistors, with integrated forward/reverse/stop/brake functions. The L9110-C supports a maximum operating voltage of 12.0V, continuous current of 1.2A, and peak current of 2.0A. It also integrates protection features including over-temperature protection and under-voltage lockout (UVLO). The L9110-C features a PWM (INA/INB) input interface, compatible with industry-standard devices.
Key features
- Operating voltage range: 2.5 - 12.0V
- Maximum continuous current 1.2A, peak 2.0A
- Low on-resistance: 450mΩ (HS + LS)
- Low quiescent current (typ. 200uA)
- Low standby current (typ. 0.1uA@6.0V)
- Integrated over-temperature protection
- Integrated under-voltage protection
- SOP8 package
