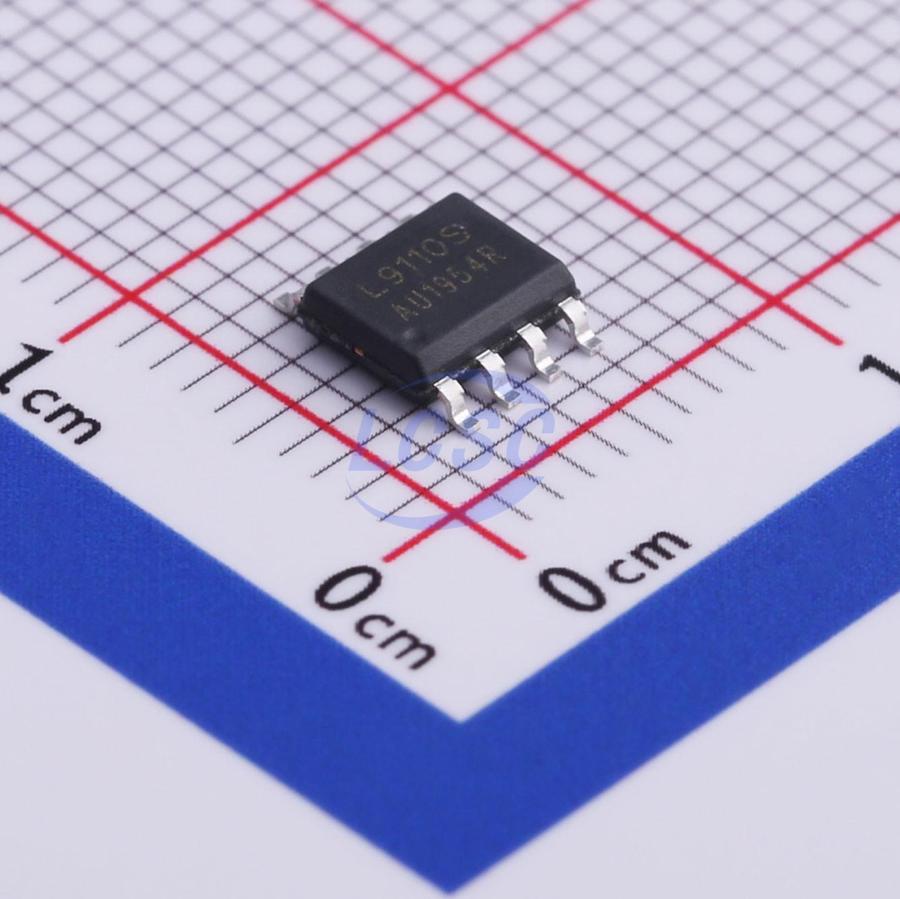

L9110S
3V~9V SOP-8 Motor Drivers, Controllers RoHS
Motor driver
- Manufacturer
- Mixic
- Manufacturer part #
- L9110S
- Store part #
- C513306
- Package / case
- SOP-8
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
35,210 in stock
#C513306
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.88 | ₹109.40 |
| 50+ | ₹17.46 | ₹873.00 |
| 150+ | ₹15.57 | ₹2,335.50 |
| 500+ | ₹13.20 | ₹6,600.00 |
| 2,500+ | ₹10.44 | ₹26,100.00 |
| 4,000+ | ₹9.82 | ₹39,280.00 |
5 × ₹21.88
₹109.40
excl. GST
₹129.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
L9110S
₹109.40 for 5 + GST
Specifications
- Features
- Interleaved conduction protection;Motor stall protection;Current sensing/regulation function;Active braking function;Soft-start;Soft switching
- Voltage - Supply
- 3V~9V
- Operating Temperature
- -20℃~+80℃
- Supply Current (Iq)
- 100nA
- Peak Current
- 2.5A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.185 g
Overview
A dual-channel push-pull power amplifier ASIC designed for controlling and driving toy motors, integrating discrete circuits into a single-chip IC to reduce peripheral component costs and improve overall system reliability. The chip's input is compatible with TTL/CMOS logic levels with good noise immunity. The circuit features high current drive capability, with a continuous current of 0.8～1.0A per channel and a peak current capability of up to 2.5A. The circuit incorporates over-temperature protection, and the built-in clamp diodes can dissipate reverse inrush current from inductive loads.
Applications
- Motor drive for toy cars
Key features
- Low quiescent current
- Wide supply voltage range: 2.5V - 12V
- Per-channel continuous current output capability (1.0A: VCC = 8V DIP8 package; 0.8A: VCC = 8V SOP8 package)
- Low saturation voltage drop
- Over-temperature protection
- Three output states: forward, reverse, and high-impedance
- TTL/CMOS output level compatible, direct CPU output connection
- Built-in clamp diodes for inductive load control and driving
- Integrated in a single IC
- Suitable for 3- to 6-cell dry battery powered systems
- Pin high-voltage protection
- ESD immunity: 4000V (HBM)
- Operating temperature range: -20℃ to +80℃
