LRCDatasheet (PDF)
LBZT52C3V9T1G

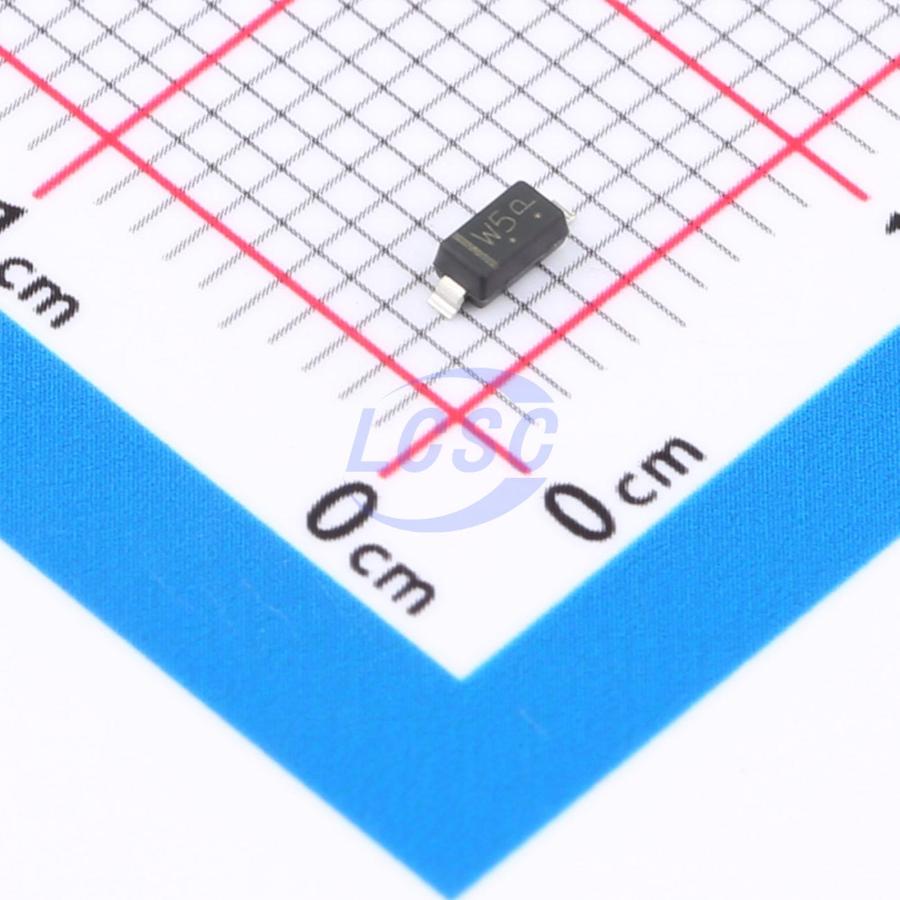

Zener Diode Independent 3.9V 500mW Surface Mount SOD-123
SOD-123RoHSActive
DIODE ZENER 3.9V 500mW SOD-123
- Manufacturer
- LRC
- Manufacturer part #
- LBZT52C3V9T1G
- Store part #
- C12768
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,850 in stock
#C12768
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹3.14 | ₹157.00 |
| 500+ | ₹2.57 | ₹1,285.00 |
| 3,000+ | ₹2.26 | ₹6,780.00 |
| 6,000+ | ₹2.06 | ₹12,360.00 |
| 24,000+ | ₹1.91 | ₹45,840.00 |
| 51,000+ | ₹1.81 | ₹92,310.00 |
50 × ₹3.14
₹157.00
excl. GST
₹185.26 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LBZT52C3V9T1G
₹157.00 for 50 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 3uA
- Impedance(Zzt)
- 90Ω
- Zener Voltage(Range)
- 3.7V~4.1V
- Zener Voltage(Nom)
- 3.9V
- Impedance(Zzk)
- 600Ω
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.035 g
Overview
Key features
- 500mw Power Dissipation
- Ideal for Surface Mountted Application
- Zener Breakdown Voltage Range 2.4V to 51V
- We declare that the material of product compliant with RoHS and Halogen Free.
- S_ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LBZT52C3V6T1G#C12757LRC · SOD-123 | LRC | SOD-123 | On request | ₹3.28 · 0 in stock | View |
 | LMSZ5227BT1G#C131753LRC · SOD-123 | LRC | SOD-123 | 380 | ₹2.71 · 380 in stock | View |
 | LMSZ5228BT1G#C131752LRC · SOD-123 | LRC | SOD-123 | On request | ₹3.07 · 0 in stock | View |
 | LBZT52B3V6T1G#C5266904LRC · SOD-123 | LRC | SOD-123 | On request | ₹3.28 · 0 in stock | View |
