STDatasheet (PDF)

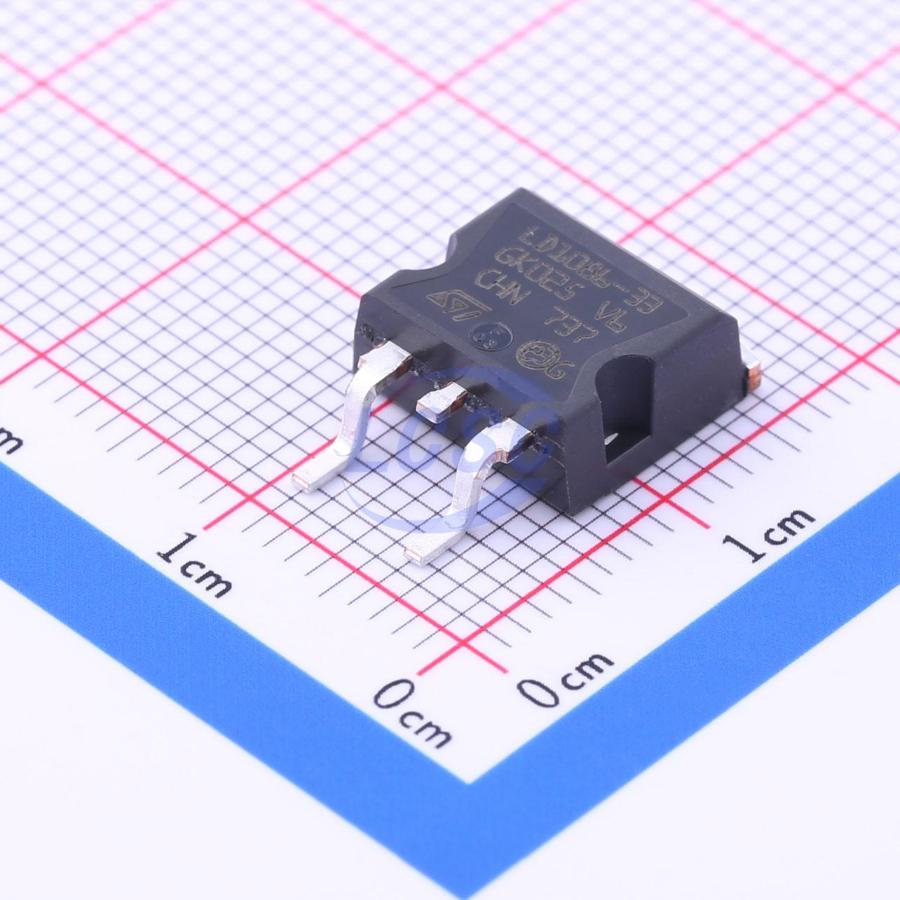

LD1086D2T33TR
3.3V Positive Fixed TO-263-2 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-263-2ROHS3 CompliantActive
1.5 A Adjustable and Fixed Low Dropout Positive Voltage Regulator
- Manufacturer
- ST
- Manufacturer part #
- LD1086D2T33TR
- Store part #
- C7915
- Package / case
- TO-263-2
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,039 in stock
#C7915
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹132.99 | ₹132.99 |
| 10+ | ₹107.71 | ₹1,077.10 |
| 30+ | ₹94.83 | ₹2,844.90 |
| 100+ | ₹82.41 | ₹8,241.00 |
| 500+ | ₹74.78 | ₹37,390.00 |
| 1,000+ | ₹70.86 | ₹70,860.00 |
1 × ₹132.99
₹132.99
excl. GST
₹156.93 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
LD1086D2T33TR
₹132.99 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 30V
- Output Current
- 1.5A
- Features
- Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.915 g
Overview
The LD1086 is a LOW DROP Voltage Regulator able to provide up to 1.5A of Output Current. Dropout is guaranteed at a maximum of 1.2V at the maximum output current, decreasing at lower loads. The LD1086 is pin to pin compatible with the older 3 - terminal adjustable regulators, but has better performances in term of drop and output tolerance. A 2.85V output version is suitable for SCSI - 2 active termination. Unlike PNP regulators, where a part of the output current is wasted as quiescent current, the LD1086 quiescent current flows into the load, so increase efficiency. Only a 10μF minimum capacitor is need for stability. The device is supplied in TO - 220, D²PAK, D²PAK/A and DPAK. On chip trimming allows the regulator to reach a very tight output voltage tolerance, within ±1% at 25°C.
Key features
- Typical dropout 1.3V at 1.5A
- Three terminal adjustable or fixed output voltage: 1.5V, 1.8V, 2.5V, 2.85V, 3.3V, 3.6V, 5V, 8V, 9V, 12V
- Guaranteed output current up to 1.5A
- Output tolerance ±1% at 25°C and ±2% in full temperature range
- Internal power and thermal limit
- Wide operating temperature range - 40°C to 125°C
- Package available: TO - 220, D²PAK, D²PAK/A, DPAK
- Pinout compatibility with standard adjustable VREG
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LD1085D2T33R#C7913ST · TO-263-2 | ST | TO-263-2 | 13,897 | ₹178.37 · 13,897 in stock | View |
