STDatasheet (PDF)

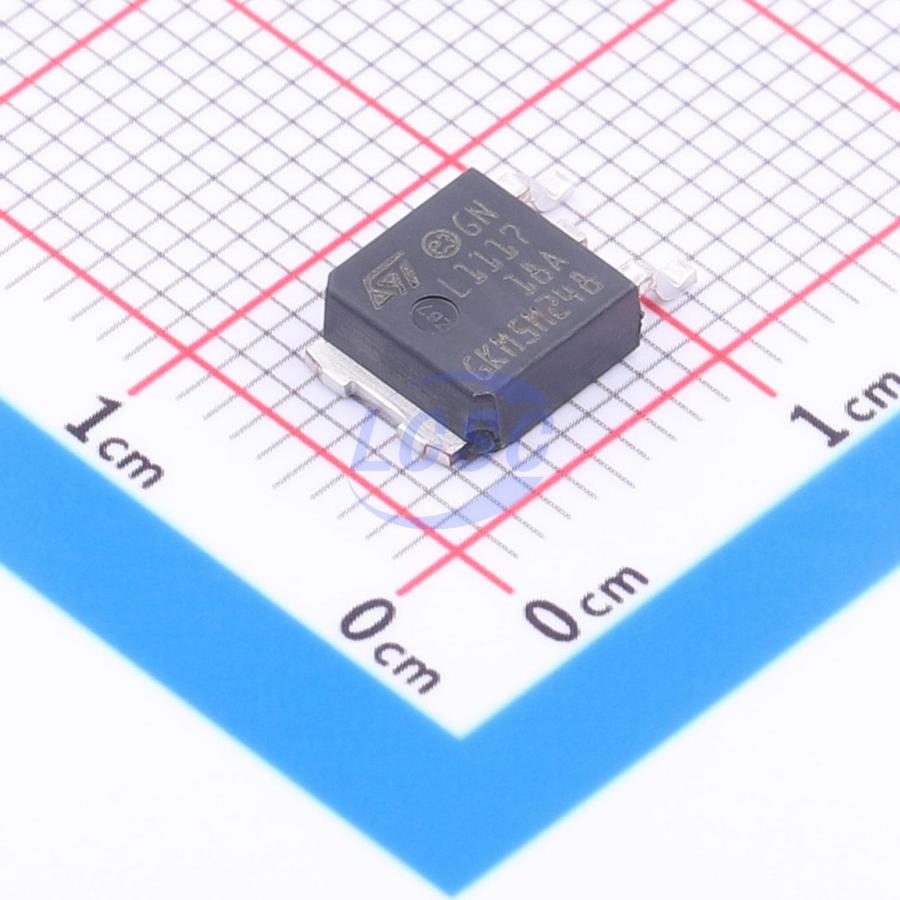

LD1117ADT18TR
1.8V Positive Fixed DPAK Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DPAKROHS3 CompliantActive
Low Dropout Fixed and Adjustable Positive Voltage Regulators
- Manufacturer
- ST
- Manufacturer part #
- LD1117ADT18TR
- Store part #
- C2970970
- Package / case
- DPAK
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
495 in stock
#C2970970
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹136.00 | ₹136.00 |
| 10+ | ₹109.72 | ₹1,097.20 |
| 30+ | ₹96.68 | ₹2,900.40 |
| 100+ | ₹83.86 | ₹8,386.00 |
| 500+ | ₹76.05 | ₹38,025.00 |
| 1,000+ | ₹72.13 | ₹72,130.00 |
1 × ₹136.00
₹136.00
excl. GST
₹160.48 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LD1117ADT18TR
₹136.00 for 1 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 10V
- Output Current
- 1A
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.374 g
Overview
The LD1117A is a low drop voltage regulator able to provide up to 1 A of output current, available also in adjustable versions (V_REF = 1.25 V). In fixed versions, the following output voltages are offered: 1.2 V, 1.8 V, and 3.3 V. The device is supplied in: SOT - 223, DPAK and TO - 220. Surface mounted packages optimize the thermal characteristics while offering a relevant space saving advantage. High efficiency is assured by an NPN pass transistor. Only a very common 10 μF minimum capacitor is needed for stability. Chip trimming allows the regulator to reach a very tight output voltage tolerance, within ± 2% at 25°C.
Key features
- Low dropout voltage: – 1.15 V typ. (ΔI_OUT = 1 A, 25°C)
- Very low quiescent current: – 5 mA typ. (25°C)
- Output current up to 1 A
- Fixed output voltage of: – 1.2 V, 1.8 V, 3.3 V
- Adjustable version availability (V_REF = 1.25 V)
- Internal current and thermal limit
- Only 10 μF for stability
- Available in ± 2% (at 25°C) and 4% in full temperature range
- High supply voltage rejection: – 80 dB typ. (at 25°C)
- Temperature range: 0°C to 125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM1117RS-1.8#C262793HTC · TO-252-2(DPAK) | HTC | TO-252-2(DPAK) | 1,870 | ₹39.61 · 1,870 in stock | View |
 | AZ1117CD-1.8TRG1#C151032DIODES · TO-252-2 | DIODES | TO-252-2 | 1,670 | ₹29.15 · 1,670 in stock | View |
 | AZ1084CD-1.8TRG1#C6748101DIODES · TO-252 | DIODES | TO-252 | 63 | ₹53.48 · 63 in stock | View |
 | NCP1117DT18RKG#C232663onsemi · TO-252-2(DPAK) | onsemi | TO-252-2(DPAK) | 2,330 | ₹26.74 · 2,330 in stock | View |
 | MC33269DT-1.8/TR#C49021834HGSEMI · TO-252-2 | HGSEMI | TO-252-2 | 2,480 | ₹18.80 · 2,480 in stock | View |
