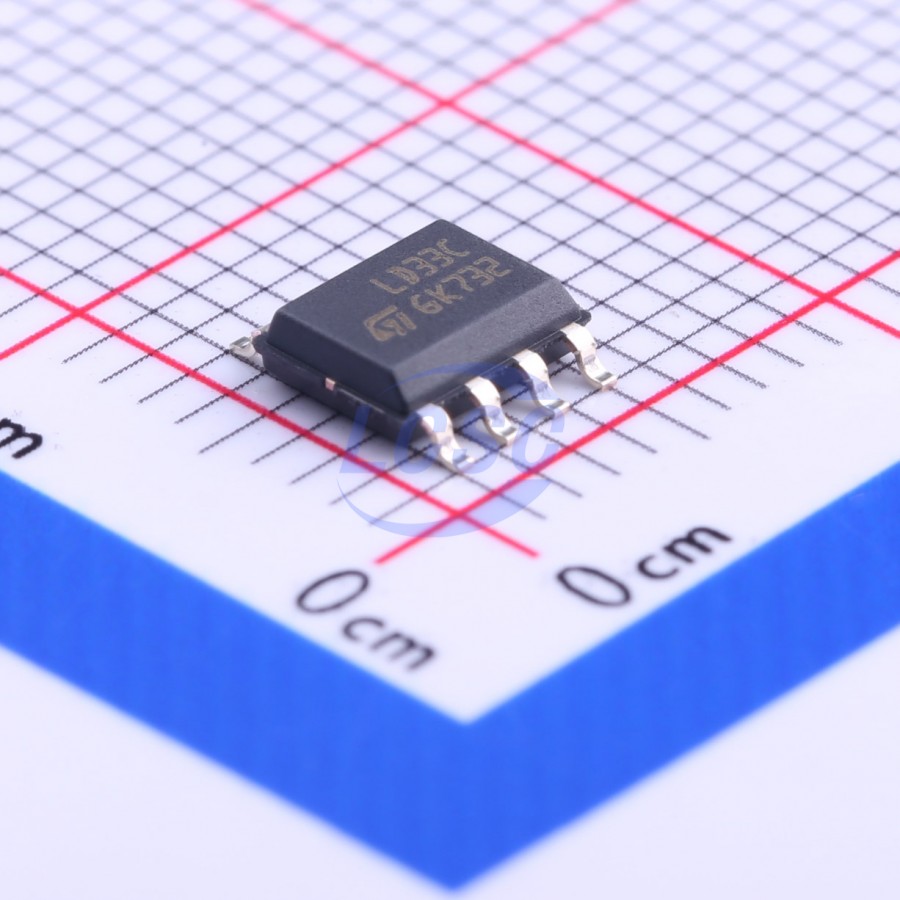

LD1117D33CTR
3.3V Positive Fixed SOIC-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOIC-8ROHS3 CompliantActive
Adjustable and Fixed Low Dropout Positive Voltage Regulators
- Manufacturer
- ST
- Manufacturer part #
- LD1117D33CTR
- Store part #
- C157440
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,775 in stock
#C157440
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.02 | ₹150.10 |
| 50+ | ₹24.04 | ₹1,202.00 |
| 150+ | ₹21.49 | ₹3,223.50 |
| 500+ | ₹18.28 | ₹9,140.00 |
| 2,500+ | ₹16.87 | ₹42,175.00 |
| 5,000+ | ₹16.01 | ₹80,050.00 |
5 × ₹30.02
₹150.10
excl. GST
₹177.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LD1117D33CTR
₹150.10 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 800mA
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.235 g
Overview
The LD1117 is a low drop voltage regulator able to provide up to 800 mA of output current, available even in adjustable version (V_REF = 1.25 V). Concerning fixed versions, are offered the following output voltages: 1.2 V, 1.8 V, 2.5 V, 2.85 V, 3.3 V and 5.0 V. The device is supplied in: SOT-223, DPAK, SO-8 and TO-220. The SOT223 and DPAK surface mount packages optimize the thermal characteristics even offering a relevant space saving effect. High efficiency is assured by NPN pass transistor.
Key features
- Low dropout voltage (1 V typ.) 2.85 V device performances are suitable for SCSI-2 active termination
- Output current up to 800 mA
- Fixed output voltage of: 1.2 V, 1.8 V, 2.5 V, 3.3 V, 5.0 V
- Adjustable version availability (V_REF = 1.25 V)
- Internal current and thermal limit
- Available in ± 1 % (at 25 °C) and 2 % in full temperature range
- Supply voltage rejection: 75 dB (typ.)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LD1117D33TR#C2971297ST · SO-8 | ST | SO-8 | 4,760 | ₹8.24 · 4,760 in stock | View |
 | AMS1117M-3.3RG#C2977140HANSCHIP semiconductor · SOP-8 | HANSCHIP semiconductor | SOP-8 | 2,100 | ₹12.67 · 2,100 in stock | View |
| MC33269M-3.3/TR#C46614070HGSEMI · SOP-8 | HGSEMI | SOP-8 | 2,395 | ₹18.75 · 2,395 in stock | View | |
 | GM12041ARDZ-3.3-R7#C19272621GONGMOSEMI · SOIC-8 | GONGMOSEMI | SOIC-8 | 1,000 | ₹433.44 · 1,000 in stock | View |
 | AMS1117D-3.3RG#C53368627HANSCHIP semiconductor · SOP-8 | HANSCHIP semiconductor | SOP-8 | 2,440 | ₹7.34 · 2,440 in stock | View |
