STDatasheet (PDF)

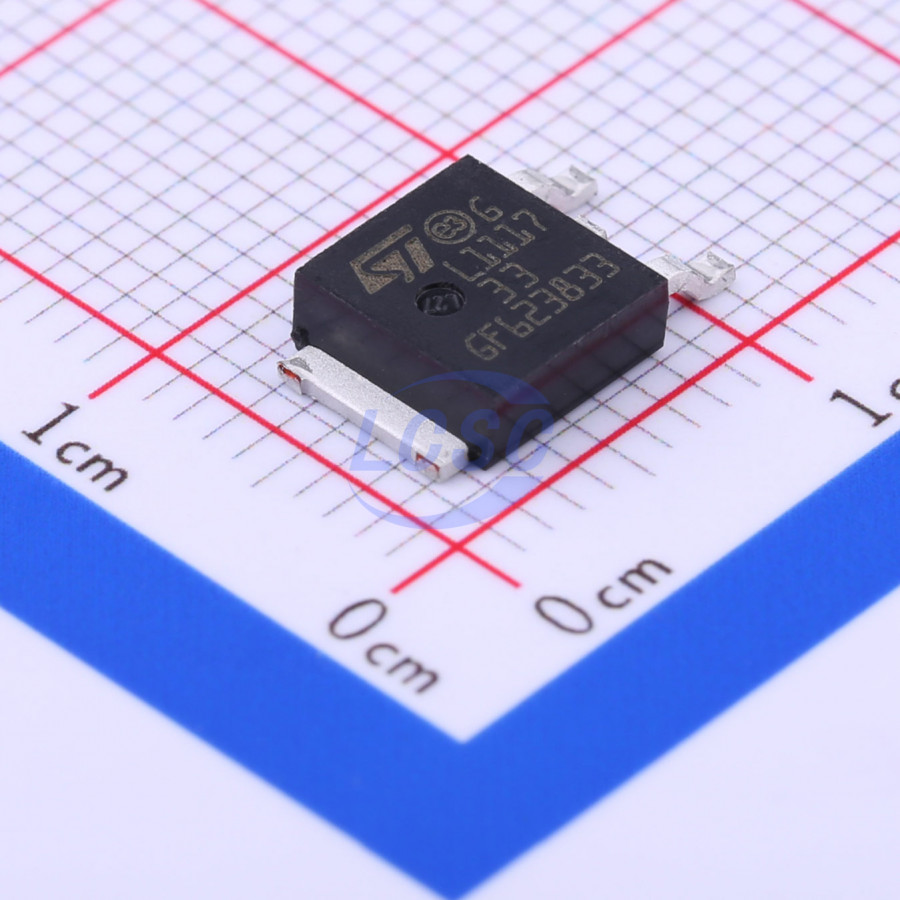

LD1117DT33TR
3.3V Positive Fixed TO-252-2 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-252-2ROHS3 CompliantActive
Adjustable and Fixed Low Dropout Positive Voltage Regulators
- Manufacturer
- ST
- Manufacturer part #
- LD1117DT33TR
- Store part #
- C132629
- Package / case
- TO-252-2
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,565 in stock
#C132629
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.08 | ₹180.40 |
| 50+ | ₹27.97 | ₹1,398.50 |
| 150+ | ₹24.49 | ₹3,673.50 |
| 500+ | ₹20.15 | ₹10,075.00 |
| 2,500+ | ₹18.22 | ₹45,550.00 |
| 5,000+ | ₹17.07 | ₹85,350.00 |
5 × ₹36.08
₹180.40
excl. GST
₹212.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LD1117DT33TR
₹180.40 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 800mA
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.7 g
Overview
The LD1117 is a low drop voltage regulator able to provide up to 800 mA of output current, available even in adjustable version (V_REF = 1.25 V). Concerning fixed versions, are offered the following output voltages: 1.2 V, 1.8 V, 2.5 V, 2.85 V, 3.3 V and 5.0 V. The device is supplied in: SOT-223, DPAK, SO-8 and TO-220. The SOT223 and DPAK surface mount packages optimize the thermal characteristics even offering a relevant space saving effect. High efficiency is assured by NPN pass transistor.
Key features
- Low dropout voltage (1 V typ.) 2.85 V device performances are suitable for SCSI-2 active termination
- Output current up to 800 mA
- Fixed output voltage of: 1.2 V, 1.8 V, 2.5 V, 3.3 V, 5.0 V
- Adjustable version availability (V_REF = 1.25 V)
- Internal current and thermal limit
- Available in ± 1 % (at 25 °C) and 2 % in full temperature range
- Supply voltage rejection: 75 dB (typ.)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM1117DTX-3.3/NOPB#C73181TI · TO-252-2 | TI | TO-252-2 | 13,931 | ₹151.30 · 13,931 in stock | View |
 | LM1117DT-3.3/NOPB#C969102TI · TO-252 | TI | TO-252 | 1,122 | ₹196.57 · 1,122 in stock | View |
 | LM1117IDTX-3.3/NOPB#C129952TI · TO-252-3 | TI | TO-252-3 | 6,039 | ₹143.18 · 6,039 in stock | View |
| MC33269DT-3.3/TR#C46614073HGSEMI · TO-252-2 | HGSEMI | TO-252-2 | 2,305 | ₹18.55 · 2,305 in stock | View | |
 | ZLDO1117QK33TC#C5295913DIODES · TO-252 | DIODES | TO-252 | 72 | ₹144.51 · 72 in stock | View |
