STDatasheet (PDF)

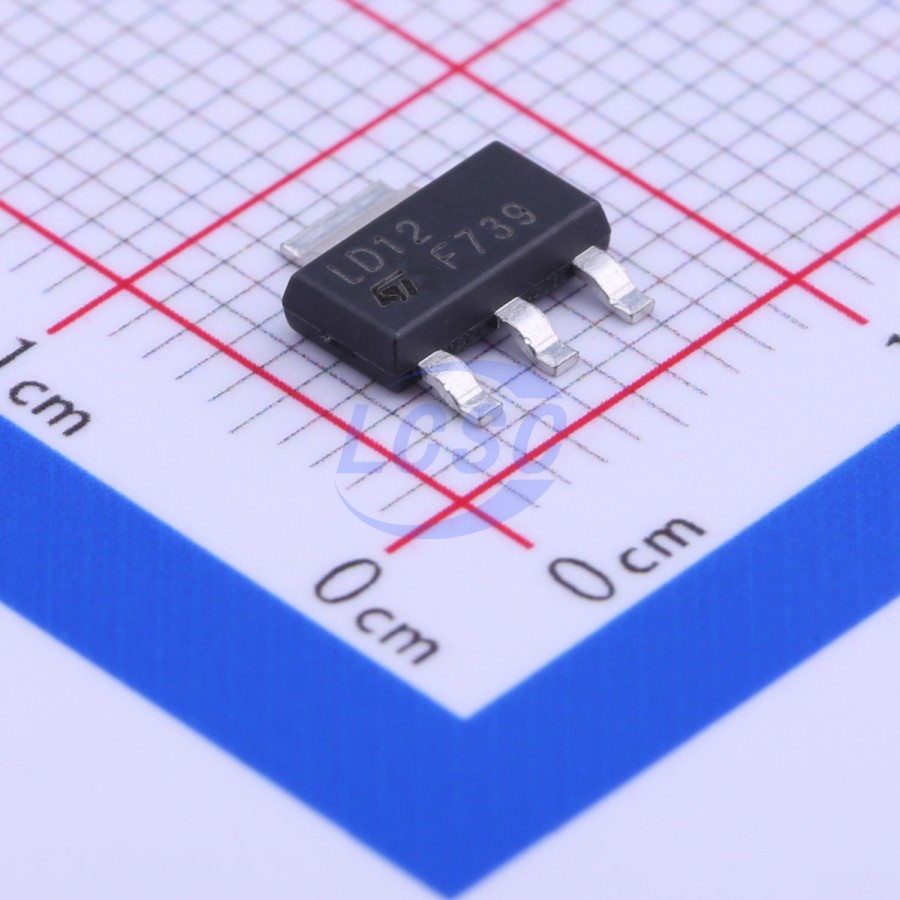

LD1117S12CTR
1.2V Positive Fixed SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223ROHS3 CompliantActive
Adjustable and Fixed Low Dropout Positive Voltage Regulators
- Manufacturer
- ST
- Manufacturer part #
- LD1117S12CTR
- Store part #
- C81158
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C81158
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹70.19 | ₹70.19 |
| 10+ | ₹55.18 | ₹551.80 |
| 30+ | ₹48.67 | ₹1,460.10 |
| 100+ | ₹40.42 | ₹4,042.00 |
| 500+ | ₹36.94 | ₹18,470.00 |
| 1,000+ | ₹34.77 | ₹34,770.00 |
1 × ₹70.19
₹70.19
excl. GST
₹82.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LD1117S12CTR
₹70.19 for 1 + GST
Specifications
- Output Voltage
- 1.2V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 800mA
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.17 g
Overview
The LD1117 is a low drop voltage regulator able to provide up to 800 mA of output current, available even in adjustable version (V_REF = 1.25 V). Concerning fixed versions, are offered the following output voltages: 1.2 V, 1.8 V, 2.5 V, 2.85 V, 3.3 V and 5.0 V. The device is supplied in: SOT-223, DPAK, SO-8 and TO-220. The SOT223 and DPAK surface mount packages optimize the thermal characteristics even offering a relevant space saving effect. High efficiency is assured by NPN pass transistor.
Key features
- Low dropout voltage (1 V typ.) 2.85 V device performances are suitable for SCSI-2 active termination
- Output current up to 800 mA
- Fixed output voltage of: 1.2 V, 1.8 V, 2.5 V, 3.3 V, 5.0 V
- Adjustable version availability (V_REF = 1.25 V)
- Internal current and thermal limit
- Available in ± 1 % (at 25 °C) and 2 % in full temperature range
- Supply voltage rejection: 75 dB (typ.)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC33269MP-1.2/TR#C46614064HGSEMI · SOT-223 | HGSEMI | SOT-223 | 2,500 | ₹17.08 · 2,500 in stock | View |
 | AMS1117-1.2#C49274351GOODWORK · SOT-223 | GOODWORK | SOT-223 | 4,590 | ₹6.09 · 4,590 in stock | View |
 | AZ1117CH-1.2TRG1#C507895DIODES · SOT-223 | DIODES | SOT-223 | 2,580 | ₹18.40 · 2,580 in stock | View |
 | AMS1117-1.2#C2992568GUOXIN JIAPIN SEMICONDUCTOR · SOT-223-3 | GUOXIN JIAPIN SEMICONDUCTOR | SOT-223-3 | 780 | ₹5.21 · 780 in stock | View |
 | AMS1117-1.2#C347218UMW · SOT-223 | UMW | SOT-223 | 54,380 | ₹6.73 · 54,380 in stock | View |
