STDatasheet (PDF)

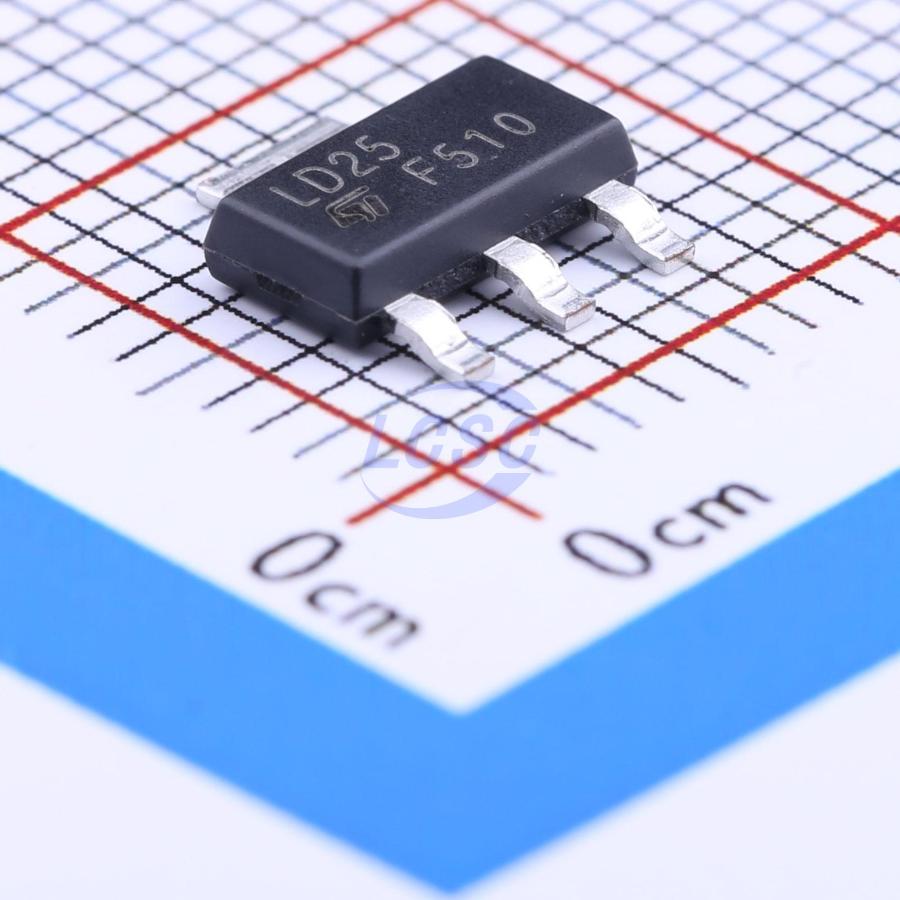

LD1117S25TR
2.5V Positive Fixed SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223ROHS3 CompliantActive
Adjustable and Fixed Low Dropout Positive Voltage Regulators
- Manufacturer
- ST
- Manufacturer part #
- LD1117S25TR
- Store part #
- C26457
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
265 in stock
#C26457
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.18 | ₹200.90 |
| 50+ | ₹33.22 | ₹1,661.00 |
| 150+ | ₹30.24 | ₹4,536.00 |
| 500+ | ₹26.53 | ₹13,265.00 |
| 2,500+ | ₹24.87 | ₹62,175.00 |
| 5,000+ | ₹23.88 | ₹1,19,400.00 |
5 × ₹40.18
₹200.90
excl. GST
₹237.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LD1117S25TR
₹200.90 for 5 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 800mA
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.22 g
Overview
The LD1117 is a low drop voltage regulator able to provide up to 800 mA of output current, available even in adjustable version (V_REF = 1.25 V). Concerning fixed versions, are offered the following output voltages: 1.2 V, 1.8 V, 2.5 V, 2.85 V, 3.3 V and 5.0 V. The device is supplied in: SOT-223, DPAK, SO-8 and TO-220. The SOT223 and DPAK surface mount packages optimize the thermal characteristics even offering a relevant space saving effect. High efficiency is assured by NPN pass transistor.
Key features
- Low dropout voltage (1 V typ.) 2.85 V device performances are suitable for SCSI-2 active termination
- Output current up to 800 mA
- Fixed output voltage of: 1.2 V, 1.8 V, 2.5 V, 3.3 V, 5.0 V
- Adjustable version availability (V_REF = 1.25 V)
- Internal current and thermal limit
- Available in ± 1 % (at 25 °C) and 2 % in full temperature range
- Supply voltage rejection: 75 dB (typ.)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LD1117S25CTR#C2802527ST · SOT-223 | ST | SOT-223 | 1,695 | ₹25.84 · 1,695 in stock | View |
 | LD1117AG-25-AA3-A-R#C71123UTC · SOT-223-4 | UTC | SOT-223-4 | 1,570 | ₹9.58 · 1,570 in stock | View |
 | LM1117MP-2.5/NOPB#C352830TI · SOT-223 | TI | SOT-223 | 11 | ₹55.91 · 11 in stock | View |
| TLV1117-25IDCY#C2866219TI · SOT-223-4 | TI | SOT-223-4 | 100 | ₹73.72 · 100 in stock | View | |
 | AMS1117-2.5OEB#C50313801GREENMICRO · SOT-223 | GREENMICRO | SOT-223 | 7,020 | ₹5.01 · 7,020 in stock | View |
