STDatasheet (PDF)

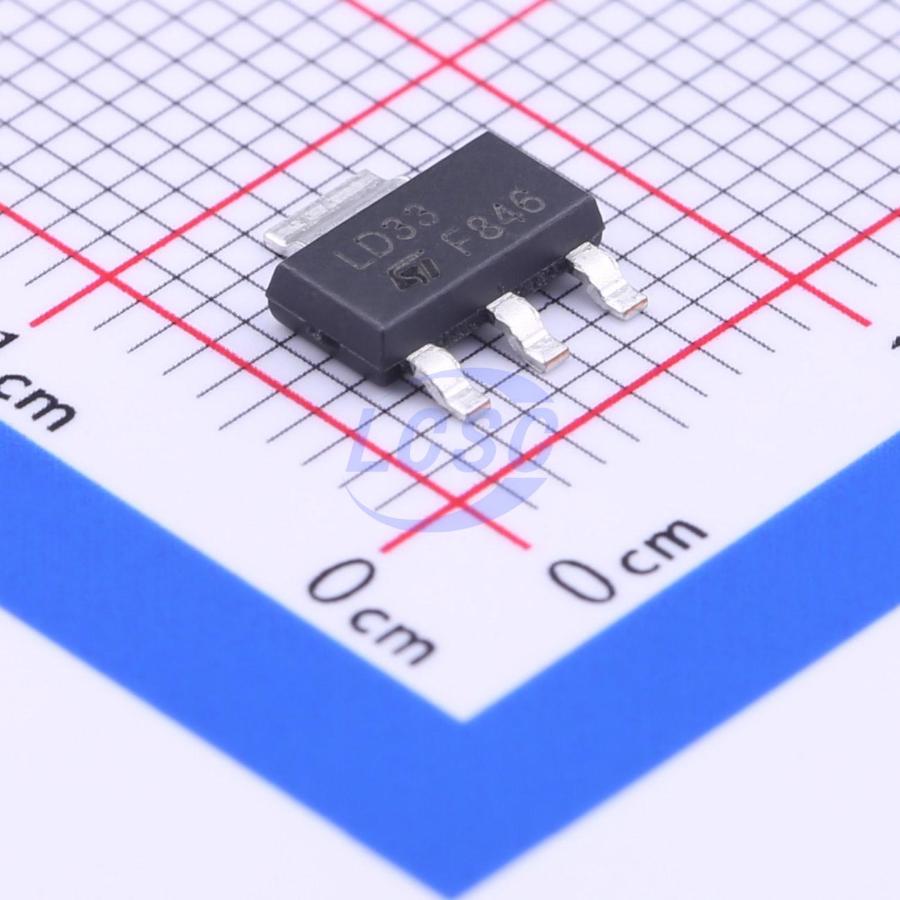

LD1117S33TR
3.3V Positive Fixed SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
PopularSOT-223ROHS3 CompliantActive
Adjustable and Fixed Low Dropout Positive Voltage Regulators
- Manufacturer
- ST
- Manufacturer part #
- LD1117S33TR
- Store part #
- C86781
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
34,005 in stock
#C86781
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.64 | ₹163.20 |
| 50+ | ₹23.92 | ₹1,196.00 |
| 150+ | ₹19.66 | ₹2,949.00 |
| 500+ | ₹15.86 | ₹7,930.00 |
| 2,500+ | ₹14.82 | ₹37,050.00 |
| 5,000+ | ₹14.20 | ₹71,000.00 |
5 × ₹32.64
₹163.20
excl. GST
₹192.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LD1117S33TR
₹163.20 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 800mA
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.358 g
Overview
The LD1117 is a low drop voltage regulator able to provide up to 800 mA of output current, available even in adjustable version (V_REF = 1.25 V). Concerning fixed versions, are offered the following output voltages: 1.2 V, 1.8 V, 2.5 V, 2.85 V, 3.3 V and 5.0 V. The device is supplied in: SOT-223, DPAK, SO-8 and TO-220. The SOT223 and DPAK surface mount packages optimize the thermal characteristics even offering a relevant space saving effect. High efficiency is assured by NPN pass transistor.
Key features
- Low dropout voltage (1 V typ.) 2.85 V device performances are suitable for SCSI-2 active termination
- Output current up to 800 mA
- Fixed output voltage of: 1.2 V, 1.8 V, 2.5 V, 3.3 V, 5.0 V
- Adjustable version availability (V_REF = 1.25 V)
- Internal current and thermal limit
- Available in ± 1 % (at 25 °C) and 2 % in full temperature range
- Supply voltage rejection: 75 dB (typ.)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LT1117CST-3.3#PBF#C140395ADI · SOT-223-3 | ADI | SOT-223-3 | 16 | ₹1,115.95 · 16 in stock | View |
 | LT1117IST-3.3#PBF#C114908ADI · SOT-223-3 | ADI | SOT-223-3 | 7 | ₹1,574.21 · 7 in stock | View |
| LT1117IST-3.3#TRPBF#C661274ADI · SOT-223-3 | ADI | SOT-223-3 | On request | ₹1,246.65 · 0 in stock | View | |
 | AMS1117-3.3#C6186Advanced Monolithic Systems · SOT-223 | Advanced Monolithic Systems | SOT-223 | 7,70,415 | ₹27.78 · 7,70,415 in stock | View |
 | LD1117AG-33-AA3-A-R#C71121UTC · SOT-223-4 | UTC | SOT-223-4 | 3,89,040 | ₹10.90 · 3,89,040 in stock | View |
