STDatasheet (PDF)

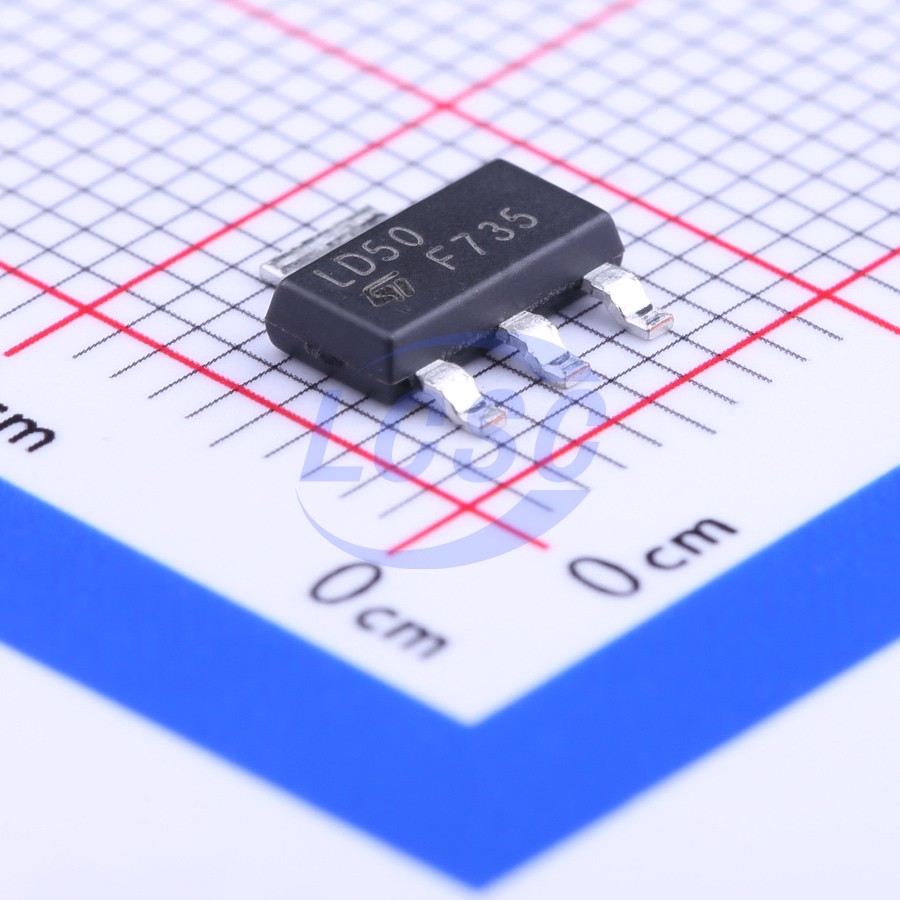

LD1117S50TR
5V Positive Fixed SOT-223-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223-3ROHS3 CompliantActive
Adjustable and Fixed Low Dropout Positive Voltage Regulators
- Manufacturer
- ST
- Manufacturer part #
- LD1117S50TR
- Store part #
- C134077
- Package / case
- SOT-223-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
24,205 in stock
#C134077
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.90 | ₹129.50 |
| 50+ | ₹20.41 | ₹1,020.50 |
| 150+ | ₹18.07 | ₹2,710.50 |
| 500+ | ₹15.14 | ₹7,570.00 |
| 2,500+ | ₹13.84 | ₹34,600.00 |
| 5,000+ | ₹13.06 | ₹65,300.00 |
5 × ₹25.90
₹129.50
excl. GST
₹152.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LD1117S50TR
₹129.50 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 800mA
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.22 g
Overview
The LD1117 is a low drop voltage regulator able to provide up to 800 mA of output current, available even in adjustable version (V_REF = 1.25 V). Concerning fixed versions, are offered the following output voltages: 1.2 V, 1.8 V, 2.5 V, 2.85 V, 3.3 V and 5.0 V. The device is supplied in: SOT-223, DPAK, SO-8 and TO-220. The SOT223 and DPAK surface mount packages optimize the thermal characteristics even offering a relevant space saving effect. High efficiency is assured by NPN pass transistor.
Key features
- Low dropout voltage (1 V typ.) 2.85 V device performances are suitable for SCSI-2 active termination
- Output current up to 800 mA
- Fixed output voltage of: 1.2 V, 1.8 V, 2.5 V, 3.3 V, 5.0 V
- Adjustable version availability (V_REF = 1.25 V)
- Internal current and thermal limit
- Available in ± 1 % (at 25 °C) and 2 % in full temperature range
- Supply voltage rejection: 75 dB (typ.)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | REG1117-5/2K5#C139393TI · SOT-223-4 | TI | SOT-223-4 | 216 | ₹439.78 · 216 in stock | View |
 | LD1117S50CTR#C81157ST · SOT-223-3 | ST | SOT-223-3 | 7,180 | ₹28.25 · 7,180 in stock | View |
 | LM1117MP-5.0/NOPB#C131933TI · SOT-223-3 | TI | SOT-223-3 | 105 | ₹49.55 · 105 in stock | View |
 | LM1117IMP-5.0/NOPB#C2862483TI · SOT-223-4 | TI | SOT-223-4 | 1,175 | ₹54.75 · 1,175 in stock | View |
 | LM1117IMPX-5.0/NOPB#C41202TI · SOT-223-3 | TI | SOT-223-3 | 27,020 | ₹47.80 · 27,020 in stock | View |
