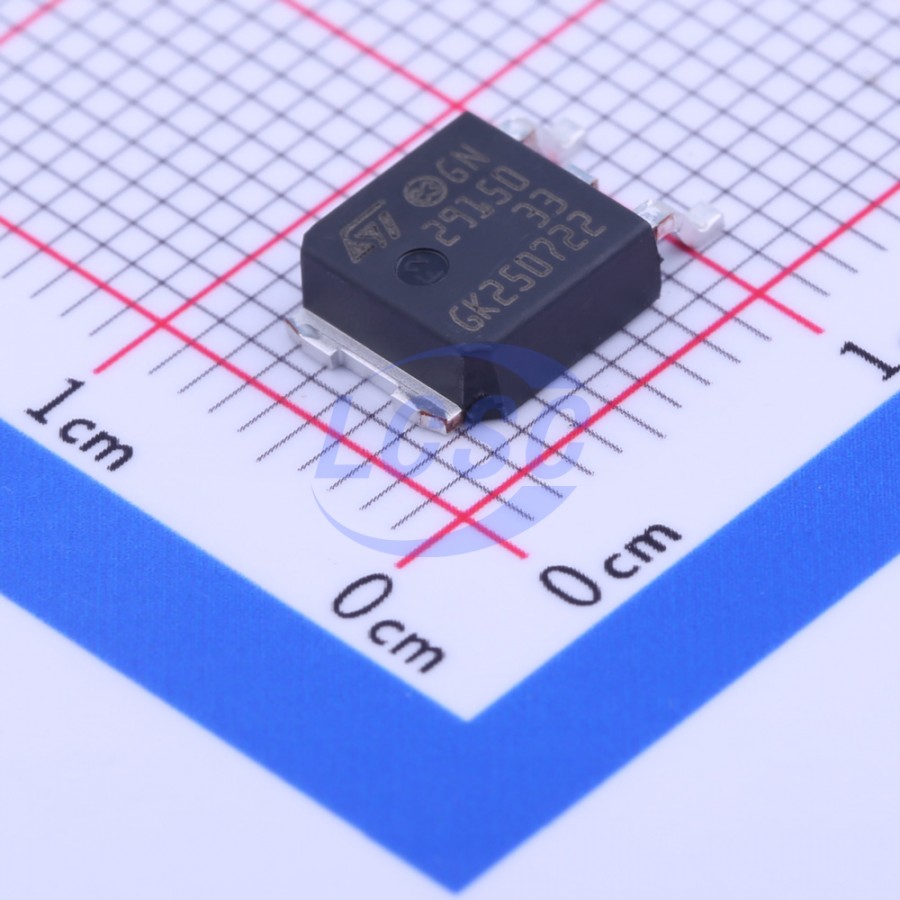

LD29150DT33R
Linear Voltage Regulator IC Positive Fixed 1 Output 1.5A TO-252-2(DPAK)
TO-252-2(DPAK)ROHS3 CompliantActive
1.5 A Low Dropout Voltage Regulator
- Manufacturer
- ST
- Manufacturer part #
- LD29150DT33R
- Store part #
- C155674
- Package / case
- TO-252-2(DPAK)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,470 in stock
#C155674
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹146.18 | ₹146.18 |
| 10+ | ₹118.99 | ₹1,189.90 |
| 30+ | ₹105.28 | ₹3,158.40 |
| 100+ | ₹91.80 | ₹9,180.00 |
| 500+ | ₹76.14 | ₹38,070.00 |
| 1,000+ | ₹71.79 | ₹71,790.00 |
1 × ₹146.18
₹146.18
excl. GST
₹172.49 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LD29150DT33R
₹146.18 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 15mA
- Output Configuration
- Positive
- Operating Voltage
- 13V
- Output Current
- 1.5A
- Features
- Reverse-polarity current protection;Short Circuit Protection;Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.475 g
Overview
The LD29150 is a high current, high accuracy, low-dropout voltage regulator series. These regulators feature 400 mV dropout voltage and very low ground current. Designed for high current loads, these devices are also used in lower current, extremely low dropout-critical systems, where their tiny dropout voltage and ground current values are important attributes. Typical applications are in power supply switching post regulation, series power supply for monitors, series power supply for VCRs and TVs, computer systems and battery powered systems.
Applications
- Power supply switching post regulation
- Series power supply for monitors
- Series power supply for VCRs and TVs
- Computer systems
- Battery powered systems
Key features
- Very low dropout voltage (typ. 0.4 at 1.5 A)
- Guaranteed output current up to 1.5 A
- Fixed and adjustable output voltage (±1% at 25 °C)
- Internal current and thermal limit
- Logic controlled electronic shutdown available in PPAK
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LD1086DT33TR#C12051ST · TO-252-2(DPAK) | ST | TO-252-2(DPAK) | 6,707 | ₹175.47 · 6,707 in stock | View |
 | UZ1085L-33-TN3-R#C125622UTC · TO-252-2(DPAK) | UTC | TO-252-2(DPAK) | 13,800 | ₹26.66 · 13,800 in stock | View |
 | BL1084-33-CY#C167251BL · TO-252-2(DPAK) | BL | TO-252-2(DPAK) | 4,085 | ₹28.46 · 4,085 in stock | View |
 | LM1086RS-3.3#C7434828HTC · TO-252-3L | HTC | TO-252-3L | On request | ₹52.28 · 0 in stock | View |
 | LM1085RS-3.3#C22650825HTC · TO-252-3L | HTC | TO-252-3L | 2,335 | ₹64.38 · 2,335 in stock | View |
