STDatasheet (PDF)

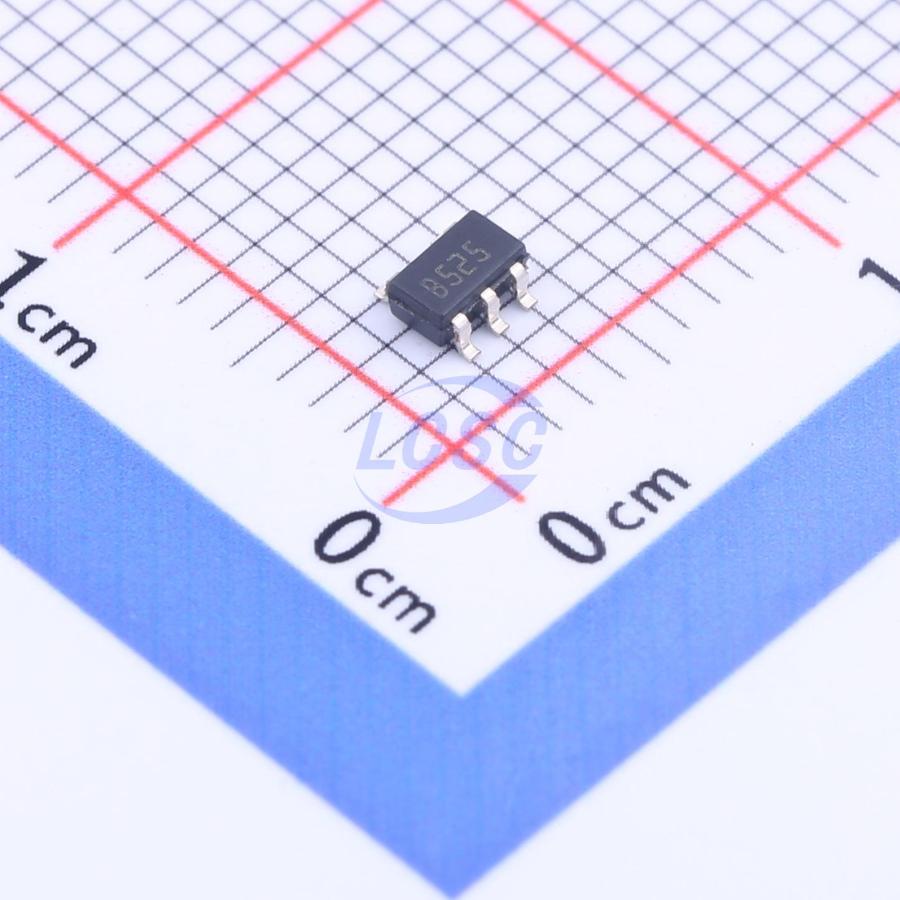

LD2985BM25R
2.5V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS3 CompliantActive
Very low drop and low noise voltage regulator with inhibit function
- Manufacturer
- ST
- Manufacturer part #
- LD2985BM25R
- Store part #
- C283386
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
615 in stock
#C283386
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹74.46 | ₹74.46 |
| 10+ | ₹65.96 | ₹659.60 |
| 30+ | ₹61.82 | ₹1,854.60 |
| 100+ | ₹57.47 | ₹5,747.00 |
| 500+ | ₹55.08 | ₹27,540.00 |
| 1,000+ | ₹53.78 | ₹53,780.00 |
1 × ₹74.46
₹74.46
excl. GST
₹87.86 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LD2985BM25R
₹74.46 for 1 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 2mA
- Output Configuration
- Positive
- Output Current
- 150mA
- Operating Voltage
- 16V
- Features
- Enable control;Noise bypass terminal;Reverse-polarity current protection;Short Circuit Protection;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.09 g
Overview
The LD2985 is a 150 mA fixed output voltage regulator. The ultra low drop voltage and the quiescent current make them particularly for low noise, low power applications, and in battery powered systems. In sleep mode quiescent current is less than 1 µA when IN pin is pulled low. Shutdown logic control func is available on pin 3 (TTL compatible). This means that when the device is used as local regulator, it is possible to reduce the total power consumption of the board standby. A capacitor, CBYP = 10 nF, connected between bypass pin and GND reduces the noise to 30 µVrms.
Applications
- cellular phone
Key features
- 80 µA at 7 mV
- Very low dropout voltage (280 mV at 150 mA and 7 mV at 80 µA load)
- Very low quiescent current
- Output current up to 150 mA
- Logic Controlled Electronic Shutdown
- Output voltage from 1.2 to 2.9 V
- Low output noise voltage: 30 µVrms
- Operating temperature range: -40°C to 125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LP2985AIM5-2.5/NOPB#C2861972TI · SOT-23-5 | TI | SOT-23-5 | 3 | ₹86.97 · 3 in stock | View |
 | LP2985IM5-2.5/NOPB#C2877791TI · SOT-23-5 | TI | SOT-23-5 | 39 | ₹133.08 · 39 in stock | View |
 | LP2992IM5X-2.5/NOPB#C2872231TI · SOT-23-5 | TI | SOT-23-5 | 10 | ₹831.70 · 10 in stock | View |
 | LP2992AIM5X-2.5/NOPB#C2860245TI · SOT-23-5 | TI | SOT-23-5 | 10 | ₹826.31 · 10 in stock | View |
 | LP2985-25DBVR#C2863838TI · SOT-23-5 | TI | SOT-23-5 | 986 | ₹65.34 · 986 in stock | View |
