STDatasheet (PDF)

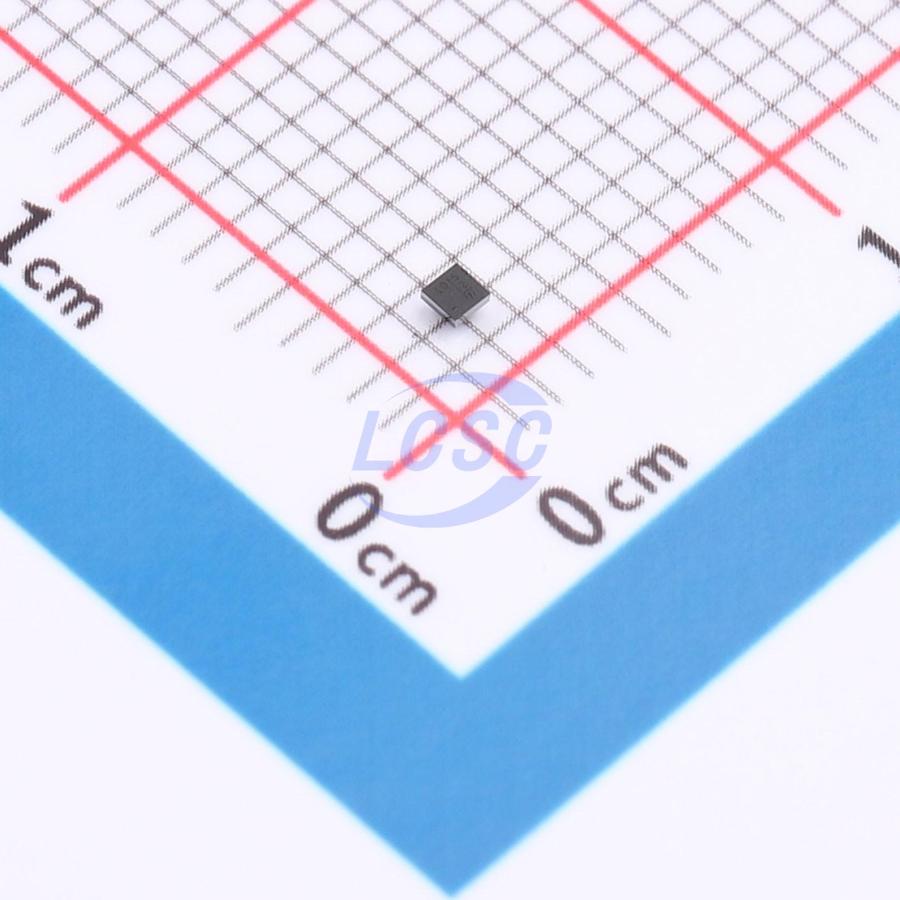

LD39015J12R
1.2V Positive Fixed FlipChip-4(1.1x1.1) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
FlipChip-4(1.1x1.1)ROHS3 CompliantActive
150 mA low quiescent current, low noise regulator
- Manufacturer
- ST
- Manufacturer part #
- LD39015J12R
- Store part #
- C3749608
- Package / case
- FlipChip-4(1.1x1.1)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C3749608
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹186.99 | ₹186.99 |
| 10+ | ₹182.64 | ₹1,826.40 |
| 30+ | ₹179.74 | ₹5,392.20 |
| 100+ | ₹176.85 | ₹17,685.00 |
1 × ₹186.99
₹186.99
excl. GST
₹220.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
LD39015J12R
₹186.99 for 1 + GST
Specifications
- Output Voltage
- 1.2V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 20uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 150mA
- Features
- Enable control;Short Circuit Protection;Thermal shutdown;Input under-voltage protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.172 g
Overview
39015J provides 150 mA maximum current from an input voltage ranging from 1.5 to 5.5 V with a typical dropout voltage of 90 mV. It is stable with ceramic capacitor. The ultra low drop-voltage, low quiescent current and low noise features make it suitable for low power battery powered applications. Power supply reject 74 dB at low frequencies and starts to roll off at kHz. Enable logic control function sets the LD39015J in shut-down mode allowing a total current consumption lower than 1 µA. It also includes a short-circuit constant current limiting and thermal protection.
Applications
- Mobile phones
- Battery powered systems
Key features
- Ultra low dropout voltage (90 mV typ. at 100 mA, 150 mV at 150 mA)
- Very low quiescent current: 20 µA typ. at no load, 35 µA at 150 mA
- Low noise (54 µVRMS from 10 Hz to 100 kHz, VOUT = 1.8 V)
- ±2.0% accuracy @ 25°C
- Wide range of output voltages available
- Stable with COUT = 1 µF ceramic capacitor
- Logic controlled enable function
- Compatible with 1.1×1.1 mm package
- Operating temperature range: -40°C to 125°C
