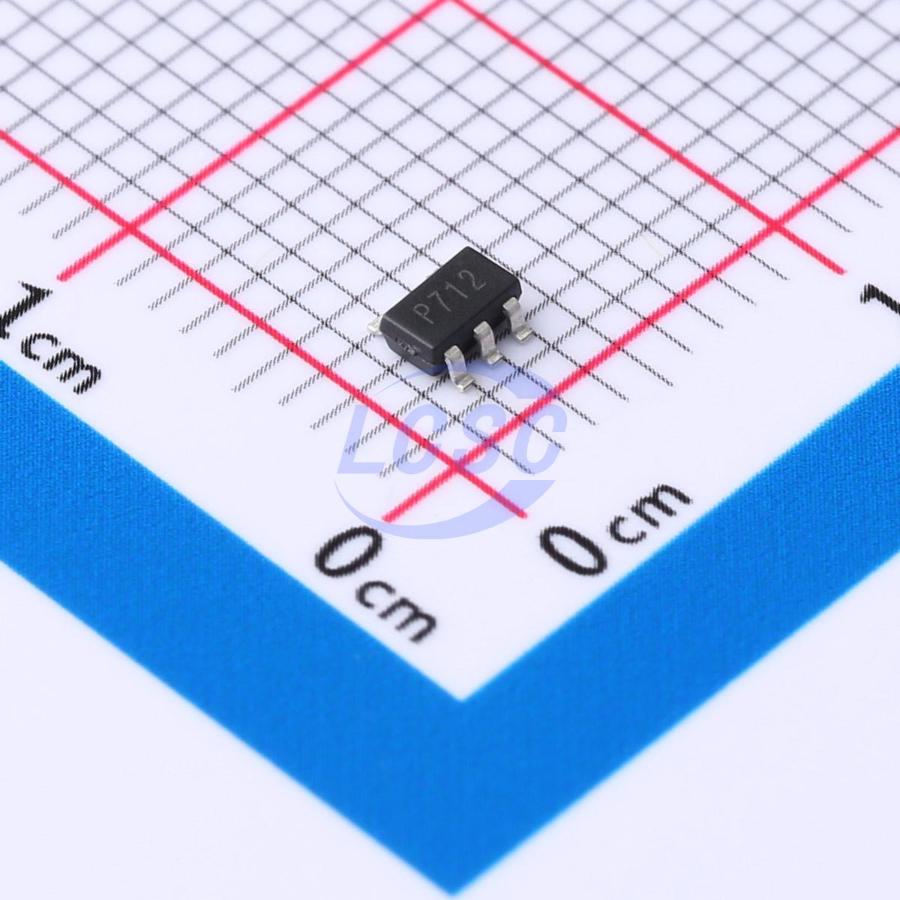

LD39015M12R

The LD39015 series provides 150 mA maximum current with an input voltage range from 1.5 V to 5.5 V and a typical dropout voltage of 80 mV. It is stable with ceramic capacitors. The ultra low drop voltage, low quiescent current and low noise features make it suitable for low power battery-powered applications. Power supply rejection is 65 dB at low frequencies and starts rolling off at 10 kHz. Enable logic control function puts the LD39015 in shutdown mode allowing a total current consumption lower than 1 μA. The device also includes short-circuit constant current limiting and thermal protection. Typical applications are mobile phones, personal digital assistants (PDAs), cordless phones or similar battery-powered systems.

Applications

• Mobile phones
• Personal digital assistants (PDAs)
• Cordless phones
• Similar battery-powered systems

Key features

• Input voltage from 1.5 to 5.5 V
• Ultra low-dropout voltage (80 mV typ. at 100 mA load)
• Very low quiescent current (18 μA typ. at no load, 38 μA typ. at 150 mA load, 1 μA max. in OFF mode)
• Very low noise without bypass capacitor (29 μV_RMS at V_OUT = 0.8 V)
• Output voltage tolerance: ± 2.0% @ 25 °C
• 150 mA guaranteed output current
• Wide range of output voltages available on request: 0.8 V to 3.3 V with 100 mV step
• Logic-controlled electronic shutdown
• Compatible with ceramic capacitors C_0 = 1 μF
• Internal current and thermal limit
• Temperature range: -40 °C to 125 °C
