STDatasheet (PDF)

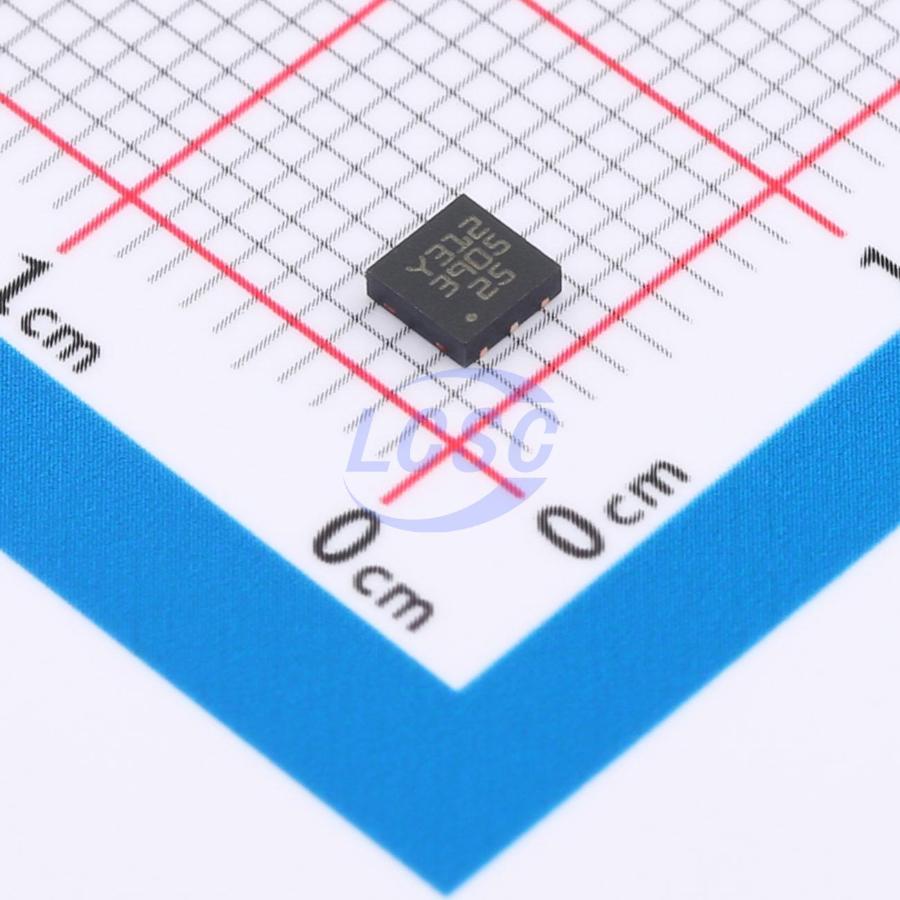

LD39050PU25R
2.5V Positive Fixed DFN-6(3x3) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DFN-6(3x3)ROHS3 CompliantActive
500 mA low quiescent current, low noise regulator
- Manufacturer
- ST
- Manufacturer part #
- LD39050PU25R
- Store part #
- C3748169
- Package / case
- DFN-6(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C3748169
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹227.82 | ₹227.82 |
| 10+ | ₹189.28 | ₹1,892.80 |
| 30+ | ₹168.18 | ₹5,045.40 |
| 100+ | ₹144.27 | ₹14,427.00 |
| 500+ | ₹133.50 | ₹66,750.00 |
| 1,000+ | ₹128.77 | ₹1,28,770.00 |
1 × ₹227.82
₹227.82
excl. GST
₹268.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LD39050PU25R
₹227.82 for 1 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 20uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 500mA
- Features
- Enable control;Operating status indication;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.24 g
Overview
The LD39050 provides 500 mA current with an input voltage range from 1.5 V to 5.5 V and a typical dropout voltage of 200 mV. Stability is given by ceramic capacitors. The ultra low dropout voltage, low quiescent current and low noise features make it suitable for low power battery-powered applications. Power supply rejection is 65 dB at low frequencies and starts to roll off at kHz. The enable logic control function puts the LD39050 in shutdown mode allowing a total current consumption lower than 1 µA. The device also includes short-circuit constant current limiting and thermal protection.
Key features
- 5.5 V, 200 mV Input voltage
- Ultra low-dropout voltage (20 µA typ. at 50 mA load, 100 µA typ. at 500 mA load, 1 µA typ. at no load)
- Output voltage tolerance: ±2.0% @ 25 °C, 500 mA
- Wide range of output voltage request: 0.8 V to 4.5 V with 100 mV adjustability
- Logic-controlled electronic shutdown
- Compatible with (3x3 mm) and (2x2 mm) capacitors
- Operating temperature range: -40 °C to 125 °C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LD49100PU25RY#C3752249ST · DFN-6(3x3) | ST | DFN-6(3x3) | 31 | ₹362.67 · 31 in stock | View |
 | LD39100PU25RY#C2970582ST · DFN-6(3x3) | ST | DFN-6(3x3) | 20 | ₹187.67 · 20 in stock | View |
 | LP38691SD-2.5/NOPB#C2869465TI · WSON-6(3x3) | TI | WSON-6(3x3) | 250 | ₹223.11 · 250 in stock | View |
 | LP38690SD-2.5/NOPB#C2876198TI · WSON-6-EP(3x3) | TI | WSON-6-EP(3x3) | 10 | ₹331.52 · 10 in stock | View |
| NCP692MN25T2G#C892666onsemi · DFN-6(3x3) | onsemi | DFN-6(3x3) | On request | ₹50.12 · 0 in stock | View | |
