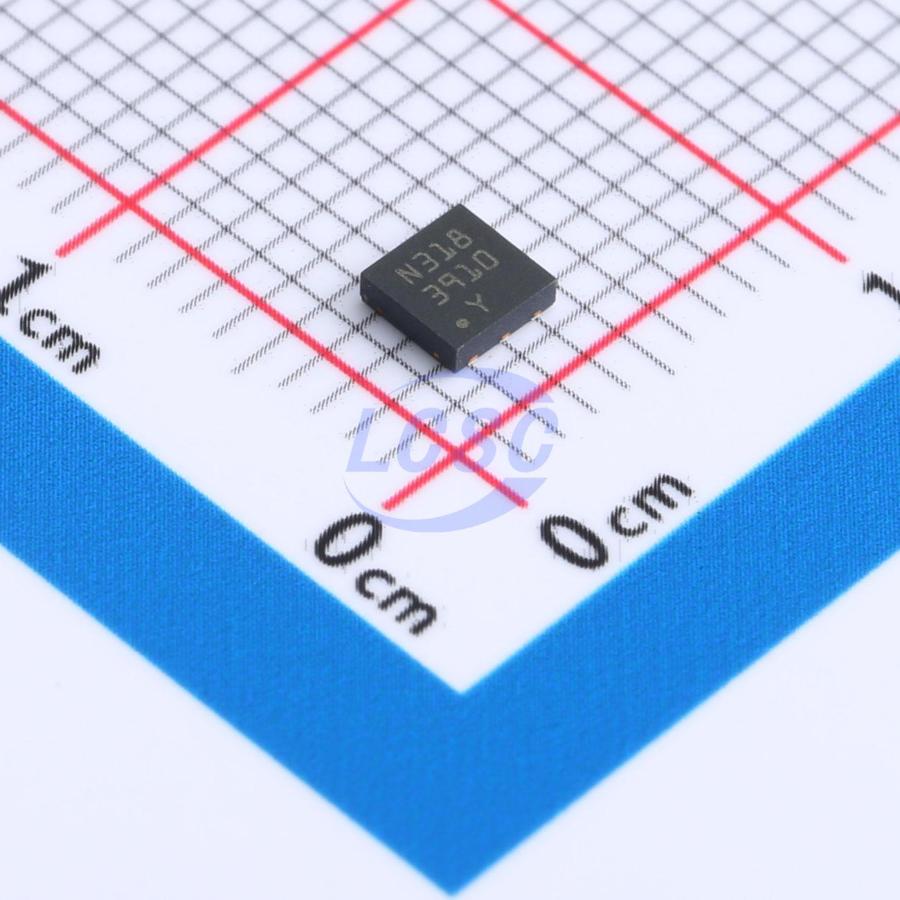

LD39100PURY

The LD39100 provides 1 A maximum current with an input voltage range from 1.5 V to 5.5 V and a typical dropout voltage of 200 mV. The device is stable with ceramic capacitors on the input and output. The ultra-low dropout voltage, low quiescent current and low-noise features make it suitable for low power battery-powered applications. Power supply rejection is 70 dB at low frequency and starts to roll off at 10 kHz. Enable logic control function puts the LD39100 in shutdown mode, allowing a total current consumption lower than 1 μA. The device also includes short-circuit constant current limiting and thermal protection. LD39100 is available also in AEC-Q100 qualified version, in the DFN6 (3×3 mm) with wettable flank package.

Applications

• Printers
• Game consoles
• Computer
• Consumer applications
• Automotive post regulation

Key features

• AEC-Q100 qualified
• Input voltage from 1.5 to 5.5 V
• Ultra-low dropout voltage (200 mV typ. at 1 A load)
• Very low quiescent current (20 μA typ. at no load, 200 μA typ. at 1 A load, 1 μA max. in off mode)
• Very low-noise with no bypass capacitor (30 μV RMS at VOUT = 0.8 V)
• Output voltage tolerance: ±2.0% at 25 °C
• 1 A guaranteed output current
• Wide range of output voltages available on request: 0.8 V to 4.5 V with 100 mV step and adjustable from 0.8
• Logic-controlled electronic shutdown
• Stable with ceramic capacitors (Cout = 1 μF)
• Internal current and thermal limit
• DFN6 (3×3 mm) package
• Temperature range: -40 °C to 125 °C
