STDatasheet (PDF)

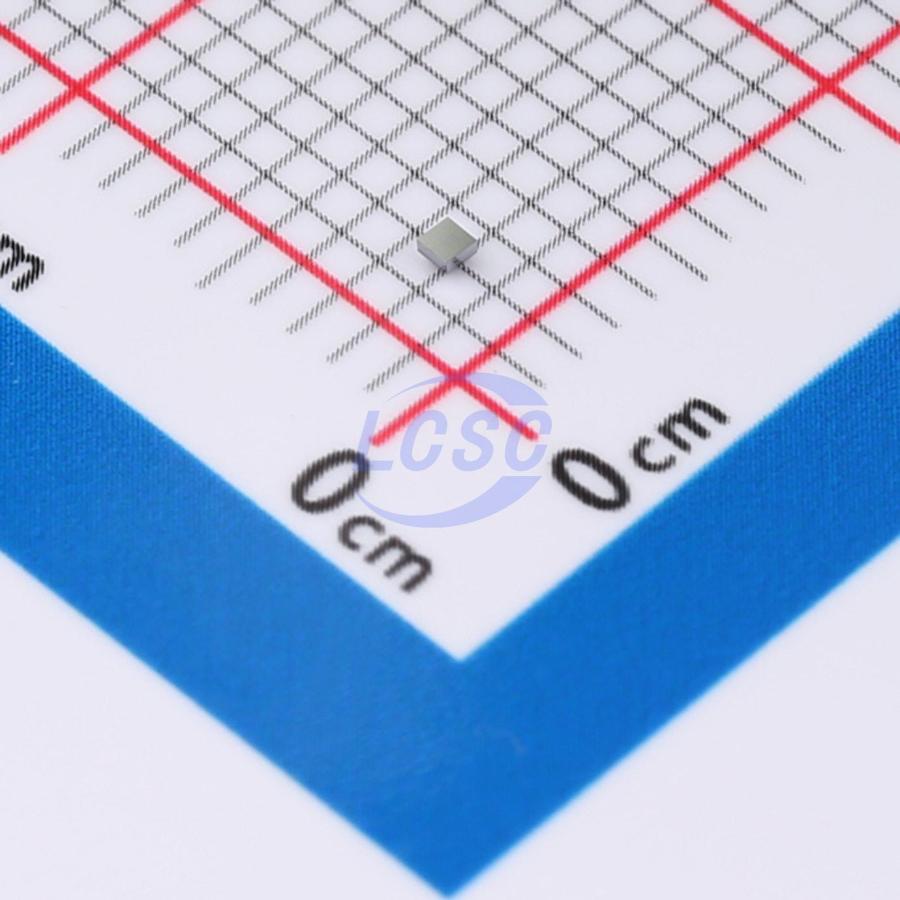

LD39115J14R
1.4V Positive Fixed FlipChip-4(0.8x0.8) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
FlipChip-4(0.8x0.8)ROHS3 CompliantActive
150 mA low quiescent current, low noise regulator
- Manufacturer
- ST
- Manufacturer part #
- LD39115J14R
- Store part #
- C5267963
- Package / case
- FlipChip-4(0.8x0.8)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C5267963
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹60.90 | ₹60.90 |
| 10+ | ₹59.47 | ₹594.70 |
| 30+ | ₹58.65 | ₹1,759.50 |
| 100+ | ₹57.63 | ₹5,763.00 |
1 × ₹60.90
₹60.90
excl. GST
₹71.86 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
LD39115J14R
₹60.90 for 1 + GST
Specifications
- Output Voltage
- 1.4V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 70uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 150mA
- Output Type
- Fixed
- Features
- Enable control;Short Circuit Protection;Thermal shutdown;Input under-voltage protection
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.096 g
Overview
39115J provides 150 mA maximum current from an input voltage ranging from 1.5 to 5.5 V with a typical dropout voltage of 80 mV. is stabilized with a ceramic capacitor. The ult low drop voltage, low quiescent current and noise features make it suitable for low power battery-p applications. Power supply rejection is 65 dB at low frequencies and starts to roll off at 10 kHz. An enable logic function puts the LD39115J in shutdown mode allowing total current consumption lower than 1
Applications
- Mobile phones
- Personal systems
Key features
- Ultra low dropout voltage (80 mV typ. at 100 mA load, 35 µA typ. at very light load, 1 µA max in shutdown mode)
- Very low noise (33 µVRMS)
- Wide range of output voltages available from 0.8 V to 4.3 V
- Temperature range: -40 °C to 125 °C
