STDatasheet (PDF)

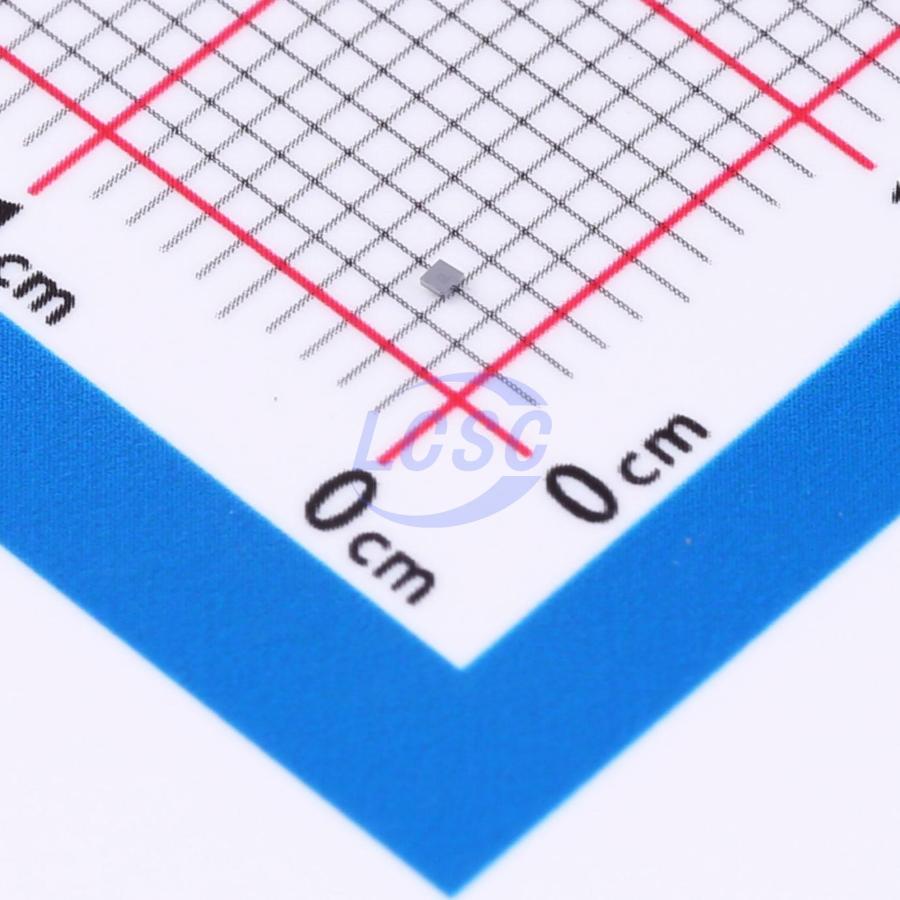

LD56020J120R
1.2V Positive Fixed FlipChip-4(0.7x0.7) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
FlipChip-4(0.7x0.7)ROHS3 CompliantActive
Low input voltage 200 mA ultra-low dropout linear regulator
- Manufacturer
- ST
- Manufacturer part #
- LD56020J120R
- Store part #
- C5267914
- Package / case
- FlipChip-4(0.7x0.7)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C5267914
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹38.98 | ₹38.98 |
| 10+ | ₹38.12 | ₹381.20 |
| 30+ | ₹37.69 | ₹1,130.70 |
| 100+ | ₹37.04 | ₹3,704.00 |
1 × ₹38.98
₹38.98
excl. GST
₹46.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
LD56020J120R
₹38.98 for 1 + GST
Specifications
- Output Voltage
- 1.2V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 20uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 200mA
- Output Type
- Fixed
- Features
- Enable control;Thermal shutdown;Output discharge;Short Circuit Protection
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.03 g
Overview
The LD56020 is a high accuracy voltage regulator which provides 0.2 A of current. It is available in CSP 0.65×0.65 mm² package, SOT23 - 5L, allowing the maximum space saving. The device is stabilized with a small ceramic capacitor on input and output. The ultra - low drop, low quiescent current and short - circuit current foldback make the LD56020 suitable for low power battery - operated applications. An enable logic control function puts the LD56020 in shutdown mode allowing a total current consumption lower than 0.1 μA. Thermal protection is also included.
Applications
- Smartphones/tablets
- Image sensors
- VCO and RF modules
Key features
- Input voltage from 1.1 V to 5.5 V
- Ultra - low dropout voltage (190 mV max. at 200 mA load)
- Low ground current (18 μA typ. at no load)
- Output voltage tolerance: ± 2 % overtemperature, ± 1% at 25 °C
- 200 mA guaranteed output current
- Ultra - low output noise: 8.8 μVRMS (10 Hz to 100 kHz)
- 50 mV output voltage steps (available on request) from 0.6 V to 4.0 V
- Logic - controlled electronic shutdown
- Thermal shutdown
- Output active discharge function
- Packages: Flip - chip4 0.65×0.65 mm² and SOT23 - 5L
