STDatasheet (PDF)

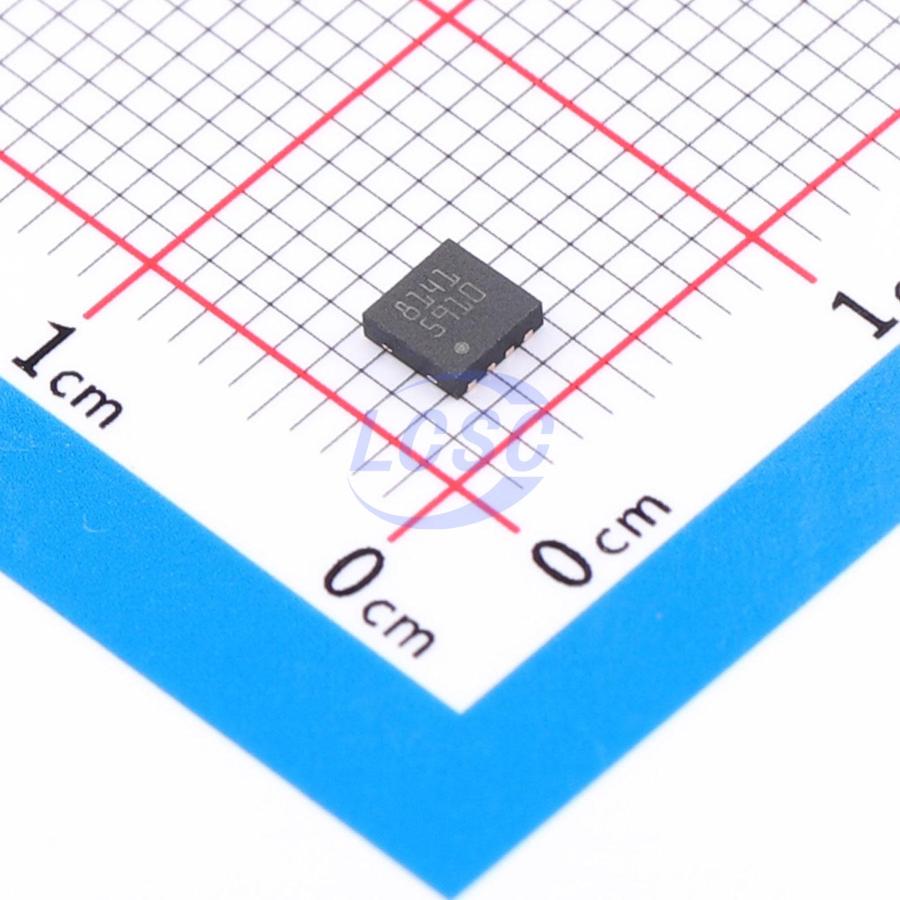

LD59100PUR
1.2V~5.5V Positive Adjustable DFN-8(3x3) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DFN-8(3x3)ROHS3 CompliantActive
1A ultra-low dropout regulator with reverse current protection
- Manufacturer
- ST
- Manufacturer part #
- LD59100PUR
- Store part #
- C2926455
- Package / case
- DFN-8(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
98 in stock
#C2926455
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹144.95 | ₹144.95 |
| 10+ | ₹117.56 | ₹1,175.60 |
| 30+ | ₹103.87 | ₹3,116.10 |
| 100+ | ₹90.40 | ₹9,040.00 |
| 500+ | ₹82.15 | ₹41,075.00 |
| 1,000+ | ₹78.02 | ₹78,020.00 |
1 × ₹144.95
₹144.95
excl. GST
₹171.04 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LD59100PUR
₹144.95 for 1 + GST
Specifications
- Output Voltage
- 1.2V~5.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 130uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 1A
- Features
- Enable control;Reverse-polarity current protection;Thermal shutdown;Over Current Protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.15 g
Overview
The LD59100 is a 1 A LDO regulator designed for use in various environments. Its NMOS topology allows reduction of the Rdson of the pass-element, maintaining a very low-dropout voltage even with very low input power supply voltage. The device features very high PSRR characteristics over a wide frequency band, rendering it suitable for use as a secondary regulator for noise-sensitive applications. The enable function can be used to further decrease the overall current consumption in shutdown mode. The LD59100 embeds protection features, such as current limit, thermal shutdown and reverse output current protection.
Applications
- Post-regulation generic POL
- Portable equipment
- Industrial applications
- Telecom infrastructure
Key features
- Input voltage range: 2.2 V to 5.5 V
- Ultra low-dropout: 200 mV typ. at 1 A
- NMOS topology
- Very high PSRR: 78 dB @ 100 Hz, 70 dB @ 100 kHz
- Very fast response to load variation
- Stable with 1 μF capacitor
- Thermal shutdown
- Current limit
- Adjustable from 1.2 V
- High output voltage accuracy: 1 % typ. (3 % max.)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPS73701DRBR#C129335TI · VDFN-8-EP(3x3) | TI | VDFN-8-EP(3x3) | 4,672 | ₹111.42 · 4,672 in stock | View |
 | TPS73701DRBT#C133574TI · VDFN-8-EP(3x3) | TI | VDFN-8-EP(3x3) | 192 | ₹183.37 · 192 in stock | View |
 | TPS78501BQWDRBRQ1#C3745181TI · SON-8(3x3) | TI | SON-8(3x3) | 9 | ₹505.44 · 9 in stock | View |
 | TPS78501QWDRBRQ1#C3747944TI · SON-8(3x3) | TI | SON-8(3x3) | 420 | ₹208.41 · 420 in stock | View |
| TPS79601DRBT#C2860550TI · SON-8-EP(3x3) | TI | SON-8-EP(3x3) | 30 | ₹260.41 · 30 in stock | View | |
