STDatasheet (PDF)

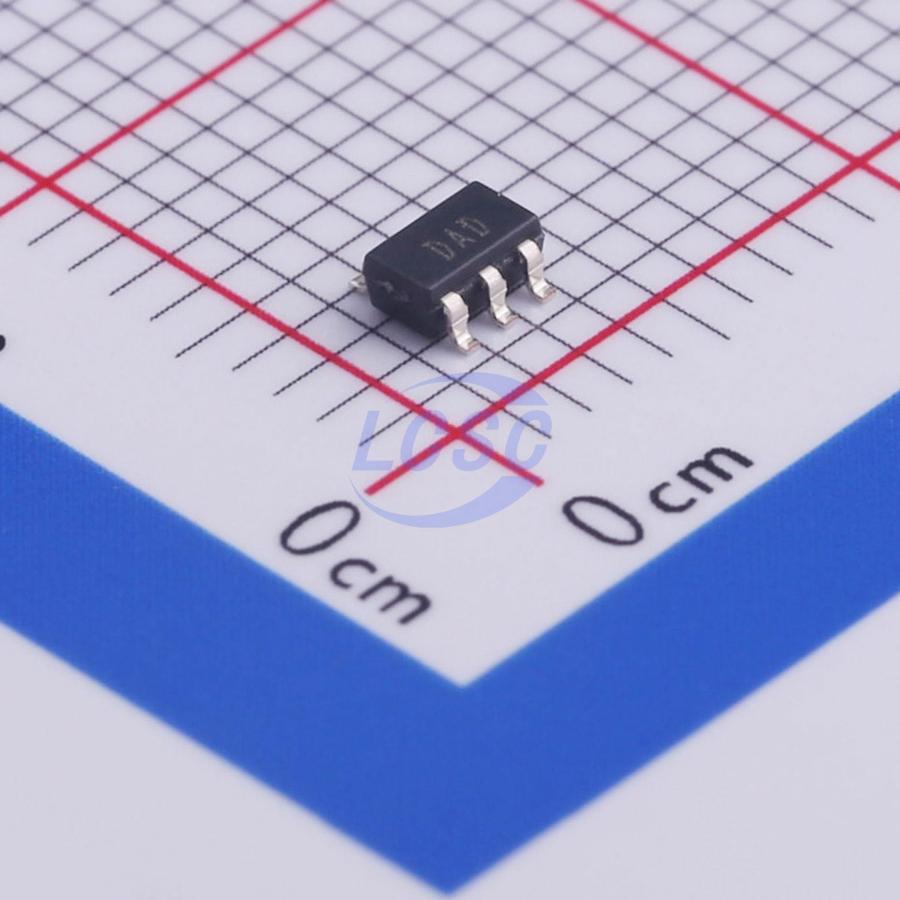

LDK220M-R
1.2V~12V Positive Adjustable SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS3 CompliantActive
200 mA low quiescent current and low noise LDO
- Manufacturer
- ST
- Manufacturer part #
- LDK220M-R
- Store part #
- C443854
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
666 in stock
#C443854
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹55.47 | ₹55.47 |
| 10+ | ₹43.08 | ₹430.80 |
| 30+ | ₹37.85 | ₹1,135.50 |
| 100+ | ₹31.12 | ₹3,112.00 |
| 500+ | ₹28.06 | ₹14,030.00 |
| 1,000+ | ₹26.33 | ₹26,330.00 |
1 × ₹55.47
₹55.47
excl. GST
₹65.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LDK220M-R
₹55.47 for 1 + GST
Specifications
- Output Voltage
- 1.2V~12V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 90uA
- Output Configuration
- Positive
- Operating Voltage
- 13.2V
- Output Current
- 200mA
- Features
- Enable control;Short Circuit Protection;Thermal shutdown;Over Current Protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.04 g
Overview
The LDK220 is a low drop voltage regulator, which provides a maximum output current of 200 mA from an input voltage in the range of 2.5 V to 13.2 V, with a typical dropout voltage of 100 mV. The very low drop voltage, low quiescent current and low noise make it suitable for battery-powered applications. The enable logic control function puts the LDK220 in shutdown mode allowing a total current consumption lower than 1 μA. The device also includes a short-circuit constant current limiting and thermal protection.
Applications
- Battery-powered equipment
- TV
- Set-top box
- PC and laptop
- Industrial
Key features
- Input voltage from 2.5 to 13.2 V
- Very low-dropout voltage (100 mV typ. @ 100 mA load)
- Low quiescent current (typ. 55 μA, 1 μA in off mode)
- Low noise
- Output voltage tolerance: ± 2.0% @ 25 °C
- 200 mA guaranteed output current
- Wide range of output voltages available on request: fixed from 1.2 V to 12 V with 100 mV step and adjustable
- Logic-controlled electronic shutdown
- Compatible with ceramic capacitor Cout = 1 μF
- Internal current and thermal limit
- Available in SOT23-5L, SOT323-5L, SOT-89 and DFN6-1.2x1.3 packages
- Temperature range: -40 °C to 125 °C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LDK320AM-R#C2969836ST · SOT-23-5 | ST | SOT-23-5 | 35 | ₹83.16 · 35 in stock | View |
 | LDK320M-R#C2682591ST · SOT-23-5L | ST | SOT-23-5L | 39 | ₹142.25 · 39 in stock | View |
 | SGM2210-ADJXN5G/TR#C5120959SGMICRO · SOT-23-5 | SGMICRO | SOT-23-5 | 1,230 | ₹80.84 · 1,230 in stock | View |
 | ETA5041V0NS2F#C46682361etasolution · SOT-23-5 | etasolution | SOT-23-5 | On request | ₹21.67 · 0 in stock | View |
