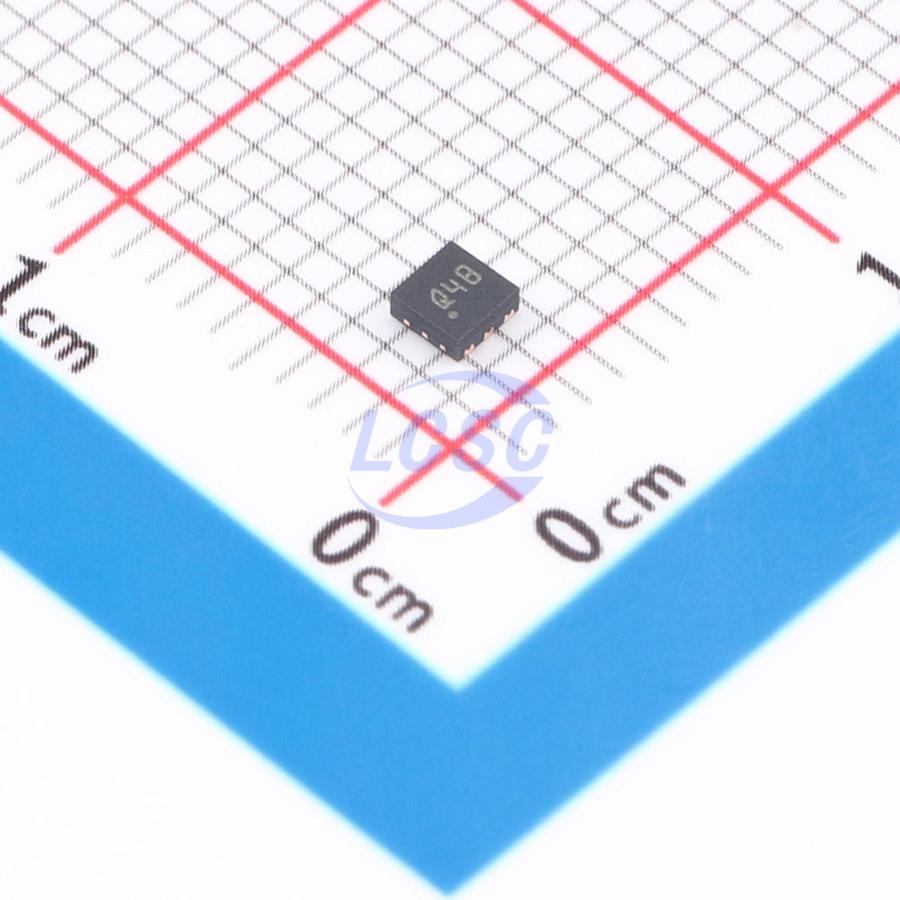

LDQ40PU33R

LDQ40 is a high-precision voltage regulator capable of delivering 250 mA of output current. The device is available in SOT23-5L and DFN 2x2 6L packages for maximum space savings. Stability is achieved with a small ceramic capacitor at the output. Its low dropout voltage, low quiescent current, and short-circuit protection make it well suited for low-power battery-operated applications. An enable logic control function allows the LDQ40 to be placed in shutdown mode, reducing total current consumption to below 0.3 μA. The device also incorporates thermal protection.

Applications

• Electric vehicle powertrain
• Normally-closed battery connection applications
• Infotainment and instrument cluster
• Advanced driver assistance systems

Key features

• AEC-Q100 Grade 1 compliant
• Operating temperature range: -40 °C < TJ < 150 °C
• Input voltage range: 3.3 V to 40 V
• Dropout voltage (typical 500 mV at 250 mA load current)
• Low ground current (typical 2 μA at no load)
• Output voltage: 1.8 V, 2.5 V, 3.3 V, 5.0 V, and adjustable 1.2 V to 12 V
• Output voltage tolerance: ±1.5% over full temperature range, ±0.5% at 25 °C
• 250 mA guaranteed output current
• Power-good indicator for fixed voltage versions
• Logic-controlled electronic shutdown
• Internal current limiting
• Short-circuit protection
• Thermal shutdown
• Active output discharge
• Package options: DFN 2x2 6L for industrial applications; DFN 2x2 6L WF and SOT23-5L for automotive grade
