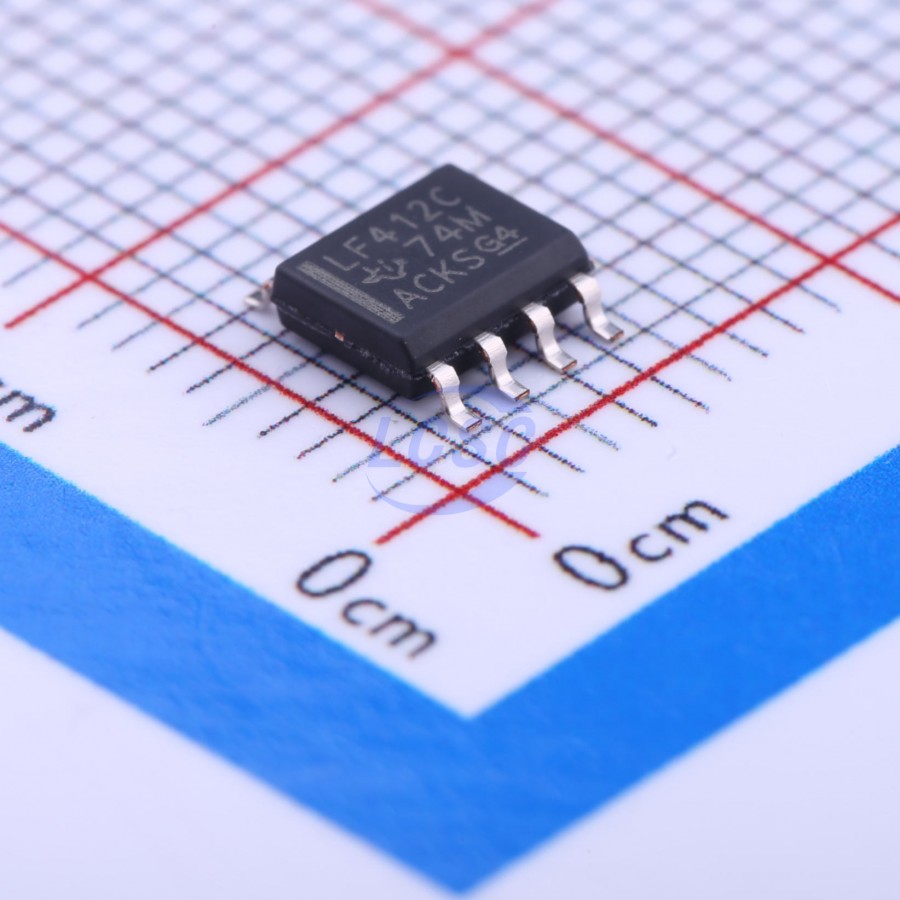

LF412CDR
1mV 13V/us 100dB 50pA 4.5mA 3MHz SOIC-8-150mil Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8-150milROHS3 CompliantActive
DUAL JFET-INPUT OPERATIONAL AMPLIFIER
- Manufacturer
- TI
- Manufacturer part #
- LF412CDR
- Store part #
- C15322
- Package / case
- SOIC-8-150mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,858 in stock
#C15322
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹121.20 | ₹121.20 |
| 10+ | ₹100.10 | ₹1,001.00 |
| 30+ | ₹89.43 | ₹2,682.90 |
| 100+ | ₹79.00 | ₹7,900.00 |
| 500+ | ₹68.77 | ₹34,385.00 |
| 1,000+ | ₹65.50 | ₹65,500.00 |
1 × ₹121.20
₹121.20
excl. GST
₹143.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LF412CDR
₹121.20 for 1 + GST
Specifications
- Vos - Input Offset Voltage
- 1mV
- Slew Rate
- 13V/us
- Input Offset Current(Ios)
- 25pA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Ib - Input Bias Current
- 50pA
- Input Offset Voltage Drift(Vos TC)
- 10uV/℃
- Quiescent Current
- 4.5mA
- Gain Bandwidth Product
- 3MHz
- Input Voltage Noise Density
- 18nV/√Hz@1kHz
- Dual Supply
- -18V~-3.5V;3.5V~18V
- Single Supply
- 3.5V~18V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.173 g
Overview
This device is a low-cost, high-speed, JFET-input operational amplifier with very low input offset voltage and a specified maximum input offset voltage drift. It requires low supply current yet maintains a large gain bandwidth product and a fast slew rate. In addition, the matched high-voltage JFET input provides very low input bias and offset currents. The LF412C can be used in applications such as high-speed integrators, digital-to-analog converters, sample-and-hold circuits, and many other circuits. The LF412C is characterized for operation from 0°C to 70°C
Applications
- high-speed integrators
- digital-to-analog converters
- sample-and-hold circuits
Key features
- Low Input Bias Current ... 50 pA Typ
- Low Input Noise Current 0.01 pA/√Hz Typ
- Low Supply Current ... 4.5 mA Typ
- High Input impedance ... 10^12 Ω Typ
- Internally Trimmed Offset Voltage
- Wide Gain Bandwidth ... 3 MHz Typ
- High Slew Rate ... 13 V/μs Typ
