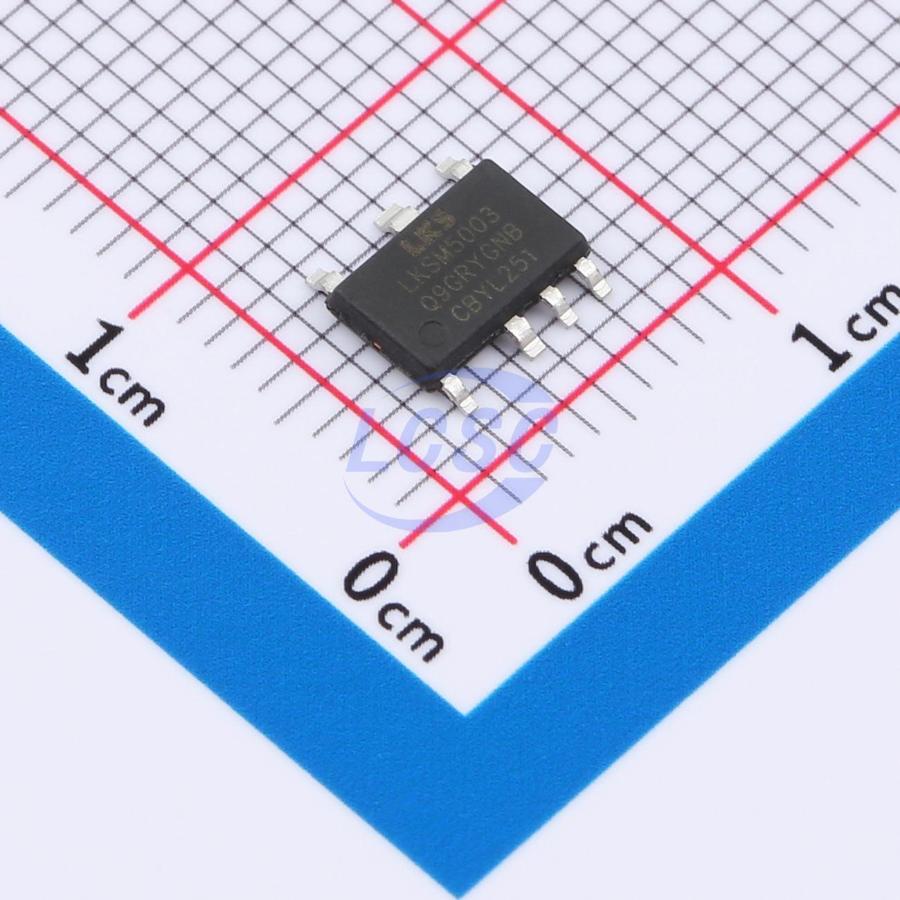

LINKOSEMI

LKSM5003NBI

12V~18V 20kHz HSOP-7 Motor Drivers, Controllers

HSOP-7Active

Manufacturer: LINKOSEMI
Manufacturer part #: LKSM5003NBI
Store part #: C37328726
Package / case: HSOP-7
Category: Motor Drivers, Controllers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,595 in stock

#C37328726

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
5+	₹16.55	₹82.75
50+	₹14.41	₹720.50
150+	₹13.49	₹2,023.50
500+	₹12.34	₹6,170.00
2,500+	₹11.83	₹29,575.00
5,000+	₹11.52	₹57,600.00

Quantity (min 5, multiples of 5)

5 × ₹16.55

₹82.75

excl. GST

₹97.65 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 5,000 per reel

LKSM5003NBI

₹82.75 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Undervoltage lockout with hysteresis
Voltage - Supply: 12V~18V
Type: MOSFET
Operating Temperature: -40℃~+150℃
High-side Bias Voltage(Vbs): 12V~18V
Configuration: Half Bridge
Supply Current (Iq): 50uA
Frequency - Switching: 20kHz

Packaging & compliance

Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.12 g

Overview

LKSM5003NBI integrates a high-voltage pre-driver and a high-performance MOSFET. LKSM5003NB integrates a Bootstrap diode and a high-performance MOSFET. Used together, LKSM5003NBI and LKSM5003NB form a half-bridge power module suitable for DC brushless BLDC motors and permanent magnet synchronous PMSM motors. The source of the MOSFET in LKSM5003NB can be used for current sensing. The input features a Schmitt trigger and is logic-level compatible with 3.3V/5V/15V. LKSM5003NBI is available in an HSOP7 package. LKSM5003NB is available in an ESSOP6 package.
