TIDatasheet (PDF)

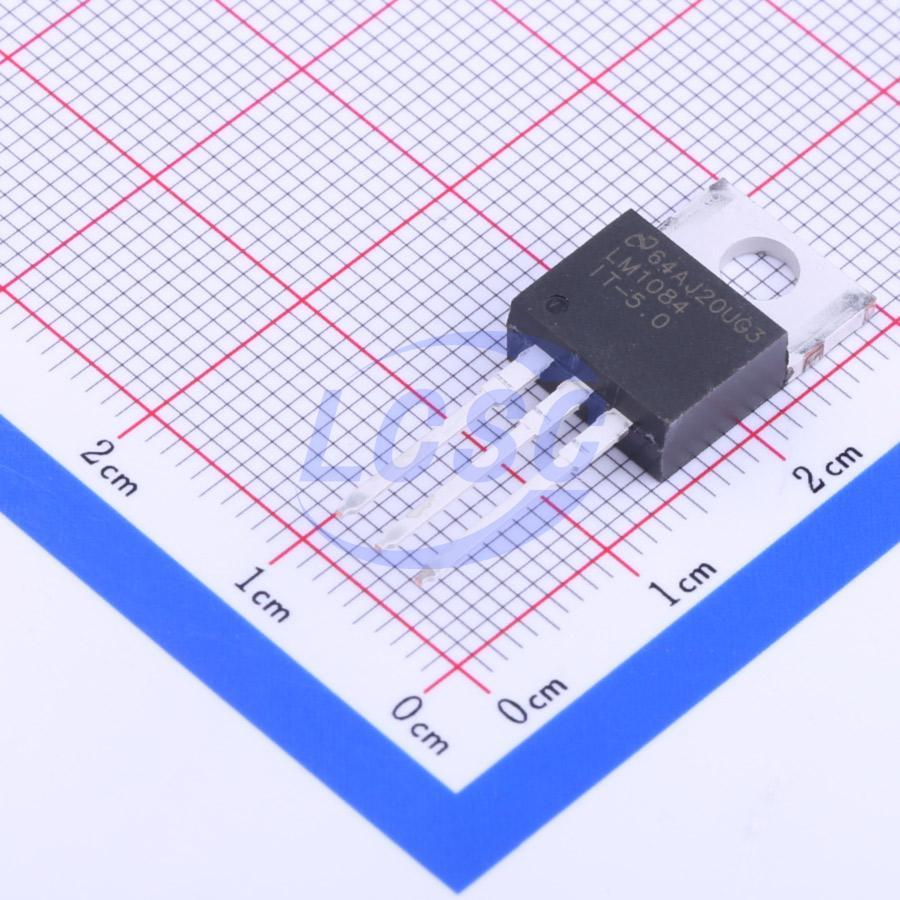

LM1084IT-5.0/NOPB
5V Positive Fixed TO-220 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-220ROHS3 CompliantActive
5.5A, 29V linear regulator
- Manufacturer
- TI
- Manufacturer part #
- LM1084IT-5.0/NOPB
- Store part #
- C9719
- Package / case
- TO-220
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16 in stock
#C9719
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹489.34 | ₹489.34 |
| 10+ | ₹423.27 | ₹4,232.70 |
| 45+ | ₹359.76 | ₹16,189.20 |
| 90+ | ₹320.07 | ₹28,806.30 |
| 450+ | ₹301.63 | ₹1,35,733.50 |
| 900+ | ₹293.48 | ₹2,64,132.00 |
1 × ₹489.34
₹489.34
excl. GST
₹577.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 45 per tube
LM1084IT-5.0/NOPB
₹489.34 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Output Current
- 5A
- Operating Voltage
- 20V
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 45 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.75 g
Overview
The LM1084 is a series of low dropout voltage positive regulators with a maximum dropout of 1.5V at 5A of load current. It has the same pin-out as National Semiconductor’s industry standard LM317. The LM1084 is available in an adjustable version, which can set the output voltage with only two external resistors. It is also available in three fixed voltages: 3.3V, 5.0V and 12.0V. The fixed versions intergrate the adjust resistors. The LM1084 circuit includes a zener trimmed bandgap reference, current limiting and thermal shutdown. The LM1084 series is available in TO-220 and TO-263 packages.
Applications
- Post Regulator for Switching DC/DC Conveter
- High Efficiency Linear Regulators
- Battery Charger
Key features
- Available in 3.3V, 5.0V, 12V and Adjustable Versions
- Current Limiting and Thermal Protection
- Output Current 5A
- Industrial Temperature Range -40°C to 125°C
- Line Regulation 0.015% (typical)
- Load Regulation 0.1% (typical)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| LT1084CT-5#PBF#C661208ADI · TO-220-3 | ADI | TO-220-3 | 10 | ₹1,567.64 · 10 in stock | View | |
 | LM1084IT-5.0#C259976HGSEMI · TO-220-3L | HGSEMI | TO-220-3L | 75 | ₹45.89 · 75 in stock | View |
 | LM1084T-5.0#C7432322HGSEMI · TO-220-3 | HGSEMI | TO-220-3 | 825 | ₹41.60 · 825 in stock | View |
 | MIC29500-5.0WT#C641268MICROCHIP · TO-220 | MICROCHIP | TO-220 | On request | ₹1,270.38 · 0 in stock | View |
