TIDatasheet (PDF)

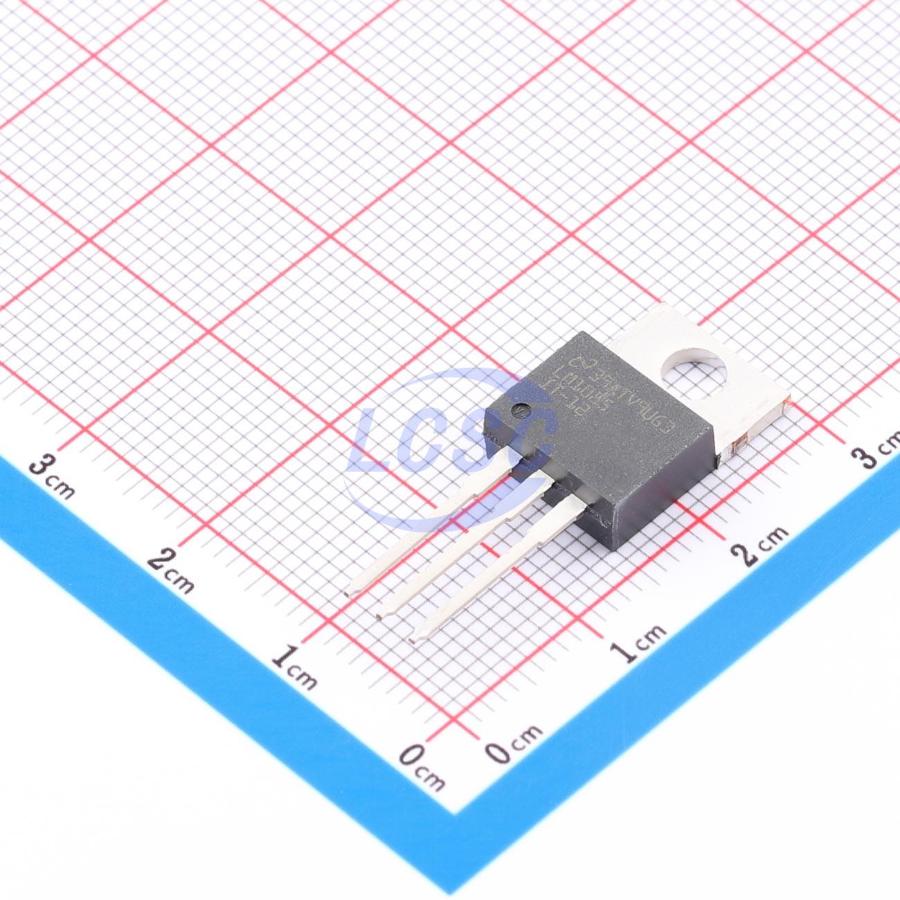

LM1085IT-12/NOPB
12V Positive Fixed TO-220 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-220ROHS3 CompliantActive
3A, 29V linear regulator
- Manufacturer
- TI
- Manufacturer part #
- LM1085IT-12/NOPB
- Store part #
- C2865347
- Package / case
- TO-220
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C2865347
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹516.79 | ₹516.79 |
| 10+ | ₹444.96 | ₹4,449.60 |
| 45+ | ₹402.07 | ₹18,093.15 |
| 90+ | ₹358.97 | ₹32,307.30 |
| 495+ | ₹338.94 | ₹1,67,775.30 |
| 990+ | ₹330.02 | ₹3,26,719.80 |
1 × ₹516.79
₹516.79
excl. GST
₹609.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 45 per tube
LM1085IT-12/NOPB
₹516.79 for 1 + GST
Specifications
- Output Voltage
- 12V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 25V
- Output Current
- 3A
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 45 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 8.571 g
Overview
The LM1085 is a regulator with a maximum dropout of 1.5 V at 3A of load current. It has the same pinout as TI's industry standard LM317. Two resistors are required to set the output voltage of the adjustable output voltage version of the LM1085. Fixed output voltage versions integrate the adjust resistors. The LM1085 circuit includes a zener trimmed bandgap reference, current limiting and thermal shutdown. Refer to the LM1084 for the 5A version, and the LM1086 for the 1.5A version.
Applications
- High Efficiency Linear Regulators
- Battery Charger
- Post Regulation for Switching Supplies
- Constant Current Regulator
- Microprocessor Supply
Key features
- Available in 3.3-V, 5.0-V, 12-V and Adjustable Versions
- Current Limiting and Thermal Protection
- Output Current 3 A
- Line Regulation 0.015% (typical)
- Load Regulation 0.1% (typical)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LT1084CT-12#PBF#C661206ADI · TO-220 | ADI | TO-220 | 6 | ₹3,461.88 · 6 in stock | View |
| LT1085IT-12#PBF#C661214ADI · TO-220 | ADI | TO-220 | On request | ₹1,289.13 · 0 in stock | View | |
| LT1085CT-12#PBF#C661209ADI · TO-220-3 | ADI | TO-220-3 | On request | ₹964.65 · 0 in stock | View | |
