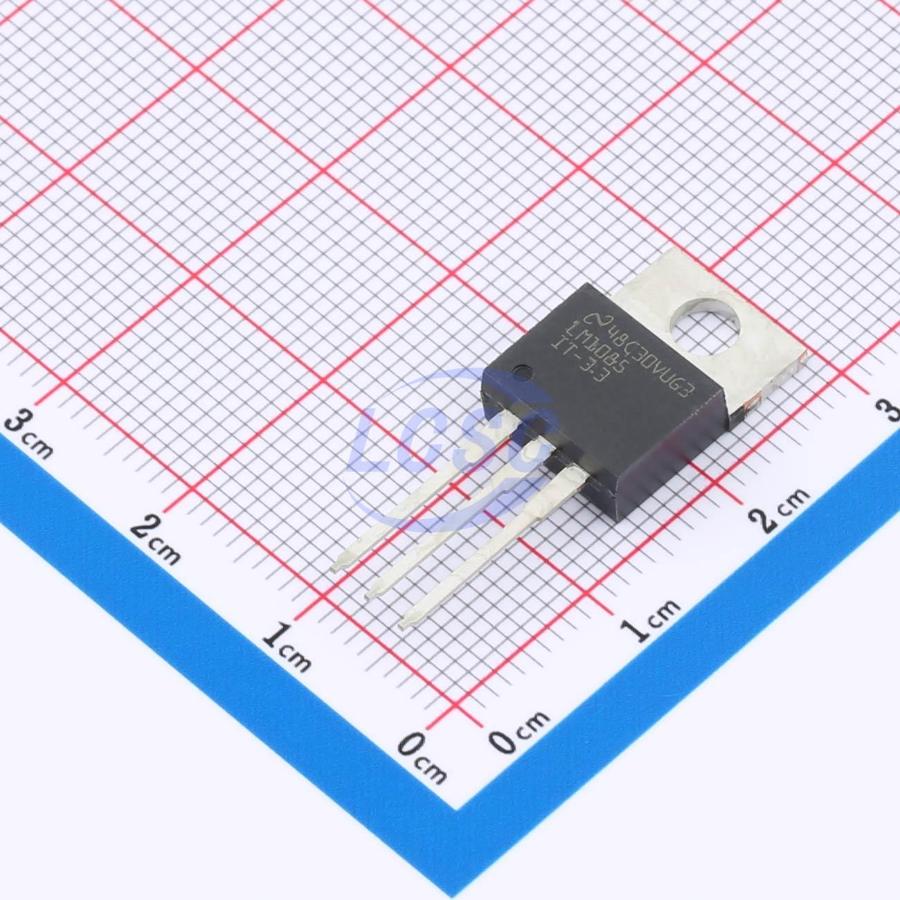

LM1085IT-3.3/NOPB
3.3V Positive Fixed TO-220-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-220-3ROHS3 CompliantActive
3-A Low Dropout Positive Regulators
- Manufacturer
- TI
- Manufacturer part #
- LM1085IT-3.3/NOPB
- Store part #
- C467006
- Package / case
- TO-220-3
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
29 in stock
#C467006
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹448.84 | ₹448.84 |
| 10+ | ₹395.05 | ₹3,950.50 |
| 45+ | ₹367.83 | ₹16,552.35 |
| 90+ | ₹331.03 | ₹29,792.70 |
| 495+ | ₹317.74 | ₹1,57,281.30 |
| 990+ | ₹312.29 | ₹3,09,167.10 |
1 × ₹448.84
₹448.84
excl. GST
₹529.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 45 per tube
LM1085IT-3.3/NOPB
₹448.84 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 3A
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 45 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.906 g
Overview
The LM1085 is a regulator with a maximum dropout of 1.5 V at 3A of load current. It has the same pinout as TI's industry standard LM317. Two resistors are required to set the output voltage of the adjustable output voltage version of the LM1085. Fixed output voltage versions integrate the adjust resistors. The LM1085 circuit includes a zener trimmed bandgap reference, current limiting and thermal shutdown. Refer to the LM1084 for the 5A version, and the LM1086 for the 1.5A version.
Applications
- High Efficiency Linear Regulators
- Battery Charger
- Post Regulation for Switching Supplies
- Constant Current Regulator
- Microprocessor Supply
Key features
- Available in 3.3-V, 5.0-V, 12-V and Adjustable Versions
- Current Limiting and Thermal Protection
- Output Current 3 A
- Line Regulation 0.015% (typical)
- Load Regulation 0.1% (typical)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LT1084CT-3.3#PBF#C661207ADI · TO-220-3 | ADI | TO-220-3 | 1 | ₹2,116.26 · 1 in stock | View |
 | LM1085IT-3.3G#C5145334HANSCHIP semiconductor · TO-220-3 | HANSCHIP semiconductor | TO-220-3 | 275 | ₹41.73 · 275 in stock | View |
 | LM1085IT-3.3/NOPB-TUDI#C54741344Tudi · TO-220 | Tudi | TO-220 | 193 | ₹55.29 · 193 in stock | View |
 | LM39300T-3.3#C48705241HTC · TO-220-3L | HTC | TO-220-3L | 78 | ₹128.46 · 78 in stock | View |
 | LM1084IT-3.3/NOPB#C9718TI · TO-220 | TI | TO-220 | On request | ₹611.94 · 0 in stock | View |
