TIDatasheet (PDF)

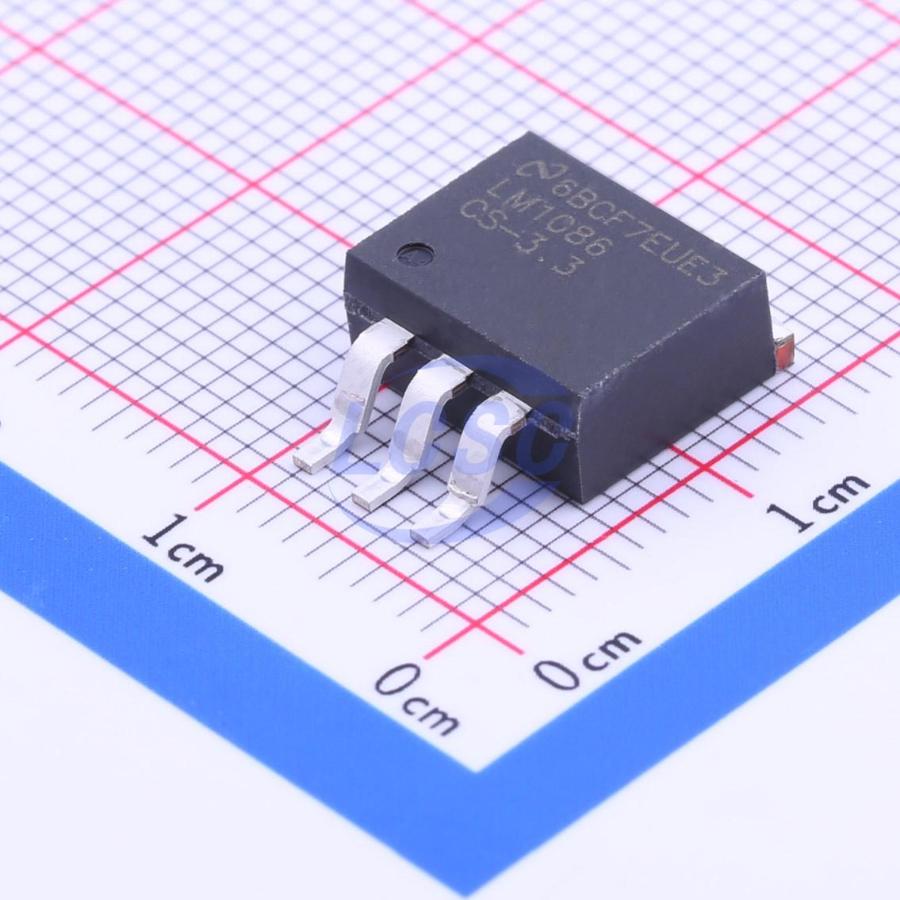

LM1086CS-3.3/NOPB
3.3V Positive Fixed TO-263-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-263-3ROHS3 CompliantActive
1.5A, 29V linear regulator
- Manufacturer
- TI
- Manufacturer part #
- LM1086CS-3.3/NOPB
- Store part #
- C14089
- Package / case
- TO-263-3
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
459 in stock
#C14089
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹547.27 | ₹547.27 |
| 10+ | ₹487.82 | ₹4,878.20 |
| 45+ | ₹442.31 | ₹19,903.95 |
| 90+ | ₹406.81 | ₹36,612.90 |
| 450+ | ₹390.26 | ₹1,75,617.00 |
| 900+ | ₹382.85 | ₹3,44,565.00 |
1 × ₹547.27
₹547.27
excl. GST
₹645.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 45 per tube
LM1086CS-3.3/NOPB
₹547.27 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 18V
- Output Current
- 1.5A
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 45 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.944 g
Overview
The LM1086 is a series of low dropout positive voltage regulators with a maximum dropout of 1.5V at 1.5A of load current. It has the same pin-out as National Semiconductor’s industry standard LM317. The LM1086 is available in an adjustable version, which can set the output voltage with only two external resistors. It is also available in six fixed voltages: 1.8V, 2.5V, 2.85V, 3.3V, 3.45V and 5.0V. The fixed versions integrate the adjust resistors. The LM1086 circuit includes a zener trimmed bandgap reference, current limiting and thermal shutdown. The LM1086 series is available in TO-220, TO-263, and LLP packages. Refer to the LM1084 for the 5A version, and the LM1085 for the 3A version.
Applications
- SCSI-2 Active Terminator
- High Efficiency Linear Regulators
- Battery Charger
- Post Regulation for Switching Supplies
- Constant Current Regulator
- Microprocessor Supply
Key features
- Available in 1.8V, 2.5V, 2.85V, 3.3V, 3.45V, 5V and Adjustable Versions
- Current Limiting and Thermal Protection
- Output Current 1.5A
- Line Regulation 0.015% (typical)
- Load Regulation 0.1% (typical)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM1086ISX-3.3/NOPB#C112156TI · TO-263-3 | TI | TO-263-3 | 43 | ₹441.59 · 43 in stock | View |
 | LD1086D2M33TR#C262918ST · D2PAK-A | ST | D2PAK-A | 916 | ₹187.73 · 916 in stock | View |
 | LT1086CM-3.3#PBF#C662436ADI · DDPAK-3 | ADI | DDPAK-3 | 27 | ₹1,359.37 · 27 in stock | View |
 | LT1086IM-3.3#TRPBF#C662441ADI · DDPAK-3 | ADI | DDPAK-3 | 6 | ₹1,429.01 · 6 in stock | View |
