HTCDatasheet (PDF)

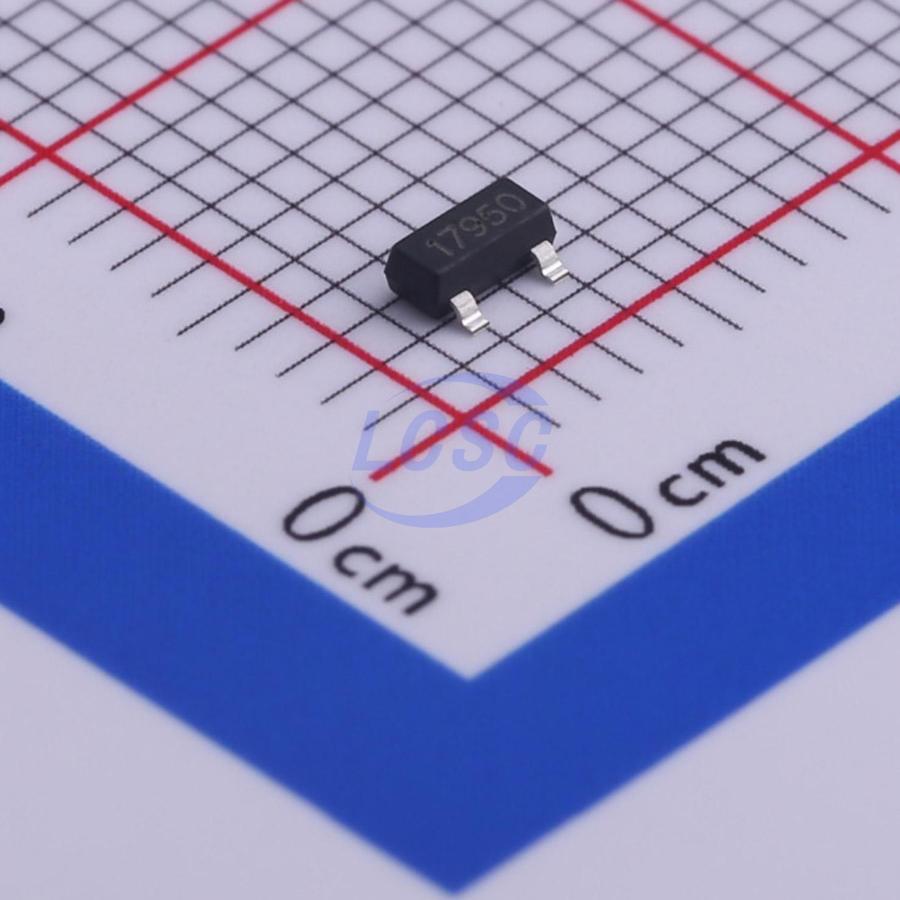

LM1117GSF-5.0
5V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23ROHS CompliantActive
300mA L.D.O VOLTAGE REGULATOR
- Manufacturer
- HTC
- Manufacturer part #
- LM1117GSF-5.0
- Store part #
- C481678
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,805 in stock
#C481678
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.56 | ₹52.80 |
| 50+ | ₹8.26 | ₹413.00 |
| 150+ | ₹7.10 | ₹1,065.00 |
| 500+ | ₹6.24 | ₹3,120.00 |
| 3,000+ | ₹5.54 | ₹16,620.00 |
| 6,000+ | ₹5.20 | ₹31,200.00 |
5 × ₹10.56
₹52.80
excl. GST
₹62.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM1117GSF-5.0
₹52.80 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 15V
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.043 g
Overview
The LM1117GSF is a low power positive-voltage regulator designed to meet 300mA output current. This device is an excellent choice for use in battery-powered applications, as active terminators for the SCSI bus, and portable computers. The LM1117 features very low quiescent current and very low dropout voltage of 1.2V at a full load and lower as output current decreases. LM1117 is available as an adjustable or fixed 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, and 5.0V output voltages. The LM1117 is offered in a 3-pin surface mount package SOT-23. The output capacitor of 10uF or larger is needed for output stability of LM1117 as required by most of the other regulator circuits.
Applications
- Active SCSI Terminators
- Portable/ Plan Top/ Notebook Computers High Efficiency Linear Regulators
- SMPS Post Regulators
- Mother B/D Clock Supplies
- Disk Drives Battery Chargers
Key features
- Output Current up to 300mA Three Terminal Adjustable(ADJ) or Fixed 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5.0V
- Line Regulation typically at 0.1% typ.
- Load Regulation typically at 0.2% typ.
- Internal Current and Terminal Protection
- Maximum Input Voltage 20V
- Surface Mount Package SOT-23
- Moisture Sensitivity Level 3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 7350-1SOT23-3#C42401010IDCHIP · SOT-23-3 | IDCHIP | SOT-23-3 | 430 | ₹8.32 · 430 in stock | View |
 | LR8323A-T50(24V300mA)#C29781214LR · SOT-23-3L | LR | SOT-23-3L | 1,460 | ₹4.97 · 1,460 in stock | View |
 | SL75U50S#C53207119Slkor · SOT-23 | Slkor | SOT-23 | 5,760 | ₹13.16 · 5,760 in stock | View |
| L7805S-TD#C54858026TDSEMIC · SOT-223-3 | TDSEMIC | SOT-223-3 | 2,313 | ₹69.81 · 2,313 in stock | View | |
 | AP7375-50SA-7#C6500991DIODES · SOT-23 | DIODES | SOT-23 | 5,275 | ₹34.13 · 5,275 in stock | View |
