HXY MOSFETDatasheet (PDF)

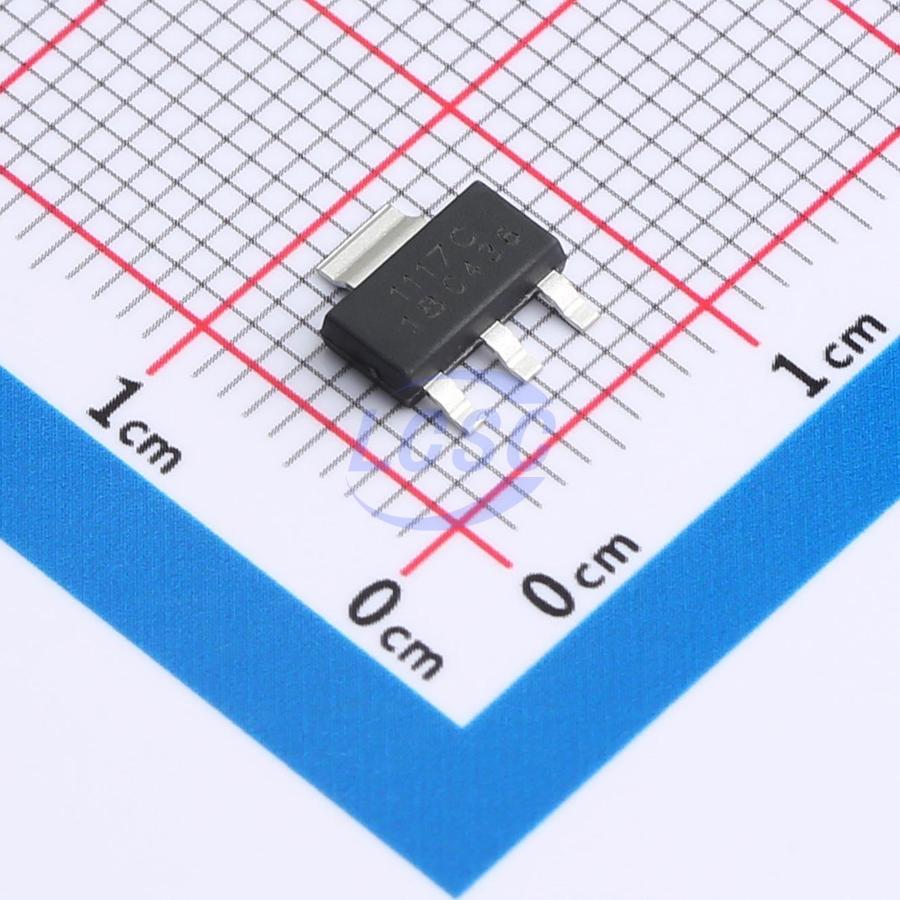

LM1117MPX-1.8/NOPB-HXY
1.8V Positive Fixed SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-223RoHSActive
800mA Bipolar Linear Regulator
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- LM1117MPX-1.8/NOPB-HXY
- Store part #
- C42411816
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
115 in stock
#C42411816
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.94 | ₹139.70 |
| 50+ | ₹21.86 | ₹1,093.00 |
| 150+ | ₹19.25 | ₹2,887.50 |
| 500+ | ₹16.00 | ₹8,000.00 |
| 2,500+ | ₹14.54 | ₹36,350.00 |
| 5,000+ | ₹13.68 | ₹68,400.00 |
5 × ₹27.94
₹139.70
excl. GST
₹164.85 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM1117MPX-1.8/NOPB-HXY
₹139.70 for 5 + GST
Specifications
- Output Voltage
- 1.8V
- Operating Temperature
- -20℃~+85℃
- Supply Current (Iq)
- 2mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 800mA
- Features
- Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.239 g
Overview
This series are low dropout regulators with a 1.3V dropout voltage at 800mA load current. Quiescent current is extremely low, with a typical value of 2mA. In addition to fixed output voltage versions (1.2V, 1.8V, 2.5V, 2.85V, 3.3V, and 5V), an adjustable version is also available, providing 1.25V to 12V output voltage with only two external resistors. The device features thermal shutdown to ensure stability of the chip and power system. It employs trimming technology to guarantee output voltage accuracy within 2%, with other accuracy grades (e.g., 1%) available upon request. This series is offered in the SOT-223 power package.
Applications
- Computer motherboard power management
- Graphics card power management
- LCD monitors
- LCD TVs
- DVD decoder boards
- ADSL modems
- Switching power supply post-stage regulators
Key features
- Maximum output current: 0.8A
- Operating input voltage range: 15V max
- Line regulation: 0.03%/V typical
- Quiescent current: 2mA typical
- Load regulation: 0.2%/A typical
- Ambient temperature range: -20℃ ~ 85℃
