onsemiDatasheet (PDF)

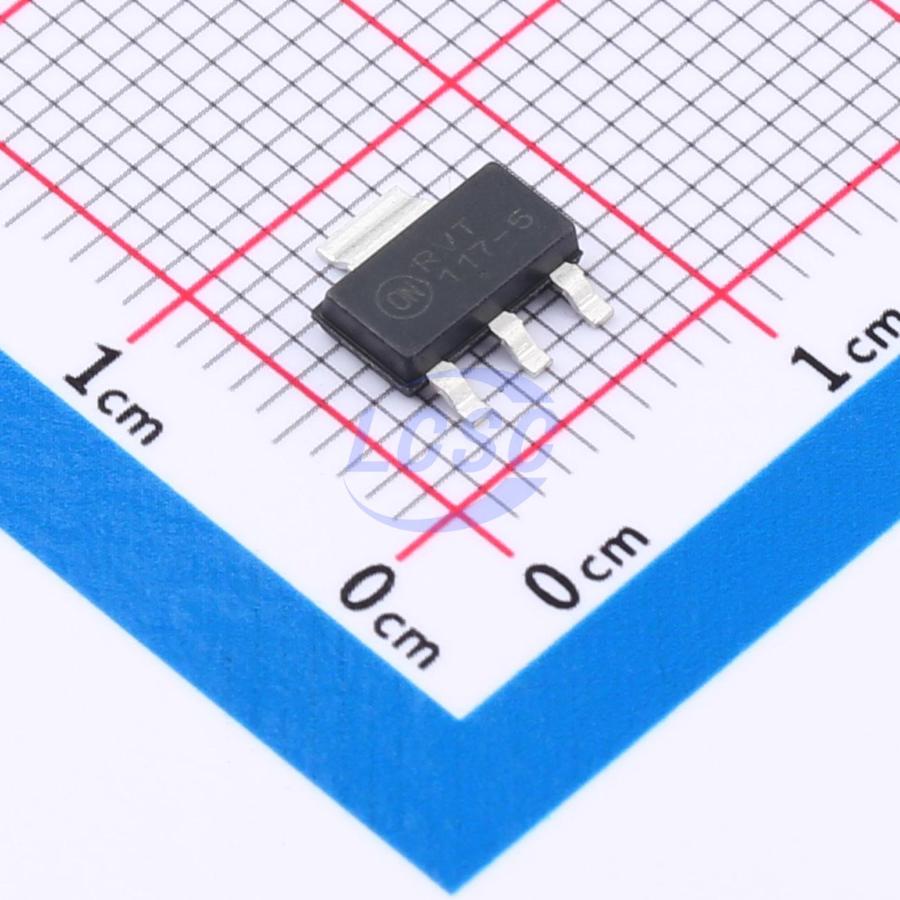

LM1117MPX-50NOPB
5V Positive Fixed SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223ROHS3 CompliantActive
800 mA Low-Dropout Linear Regulator
- Manufacturer
- onsemi
- Manufacturer part #
- LM1117MPX-50NOPB
- Store part #
- C2902258
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
79 in stock
#C2902258
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹102.56 | ₹102.56 |
| 10+ | ₹82.83 | ₹828.30 |
| 30+ | ₹72.86 | ₹2,185.80 |
| 100+ | ₹62.88 | ₹6,288.00 |
| 500+ | ₹57.03 | ₹28,515.00 |
| 1,000+ | ₹53.99 | ₹53,990.00 |
1 × ₹102.56
₹102.56
excl. GST
₹121.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LM1117MPX-50NOPB
₹102.56 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Ta)
- Supply Current (Iq)
- 10mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 800mA
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.4 g
Overview
The LM1117 features a significant reduction in dropout voltage along with enhanced output voltage accuracy and temperature stability when compared to older industry standard three−terminal adjustable regulators. These devices contain output current limiting, safe operating area compensation and thermal shutdown protection making them designer friendly for powering numerous consumer and industrial products. The LM1117 series is pin compatible with the older LM317 and its derivative device types.
Applications
- Post Regulator for Switching DC−DC Converter
- High Efficiency Linear Regulators
- Battery Chargers
- Portable Instrumentation
- Active SCSI Termination Regulation
Key features
- Available in 1.8 V, 2.5 V, 3.3 V, 5.0 V, and Adjustable Versions
- Space−Saving SOT−223 Package
- Current Limiting and Thermal Protection
- Output Current 800 mA
- Line Regulation 0.2% (Maximum)
- Load Regulation 0.4% (Maximum)
- Temperature Range: -40°C to 125°C
- These are Pb-Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCP1117ST50T3G#C17314onsemi · SOT-223 | onsemi | SOT-223 | 11,435 | ₹38.66 · 11,435 in stock | View |
 | LM1117IMP-5.0/NOPB#C2862483TI · SOT-223-4 | TI | SOT-223-4 | 1,175 | ₹54.75 · 1,175 in stock | View |
 | NCP1117IST50T3G#C2902120onsemi · SOT-223 | onsemi | SOT-223 | On request | ₹75.89 · 0 in stock | View |
 | AMS1117-5.0#C18164486GR · SOT-223 | GR | SOT-223 | 1,460 | ₹5.08 · 1,460 in stock | View |
 | AZ1117IH-5.0TRG1#C108496DIODES · SOT-223 | DIODES | SOT-223 | 2,610 | ₹47.93 · 2,610 in stock | View |
