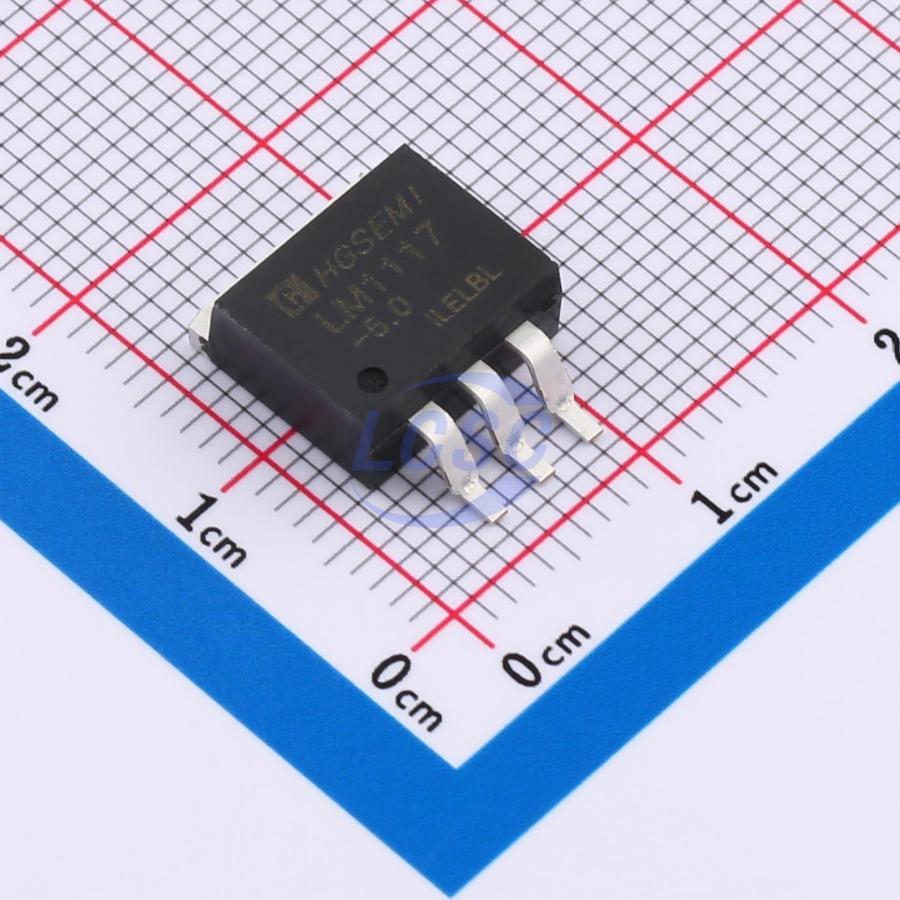

LM1117S-5.0/TR
Linear Voltage Regulator IC Positive Fixed 1 Output 1A TO-263
TO-263RoHSActive
1A LDO Voltage Regulator Circuit
- Manufacturer
- HGSEMI
- Manufacturer part #
- LM1117S-5.0/TR
- Store part #
- C498314
- Package / case
- TO-263
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
845 in stock
#C498314
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹45.89 | ₹229.45 |
| 50+ | ₹36.04 | ₹1,802.00 |
| 150+ | ₹31.82 | ₹4,773.00 |
| 500+ | ₹26.55 | ₹13,275.00 |
| 2,500+ | ₹24.20 | ₹60,500.00 |
| 5,000+ | ₹22.80 | ₹1,14,000.00 |
5 × ₹45.89
₹229.45
excl. GST
₹270.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 500 per reel
LM1117S-5.0/TR
₹229.45 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 10mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 1A
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 2.458 g
Overview
LM1117 is a positive-voltage low-dropout linear voltage regulator in a three-terminal package, with a dropout voltage of 1.2V at 1A output current. The device is available in both fixed and adjustable output voltage versions. Fixed output voltages include 1.5V, 1.8V, 2.5V, 3.3V, and 5.0V. The adjustable version offers 1% output voltage accuracy, while the fixed voltage versions offer 2% accuracy. The LM1117 integrates internal thermal shutdown and current limiting circuits, making it suitable for a wide range of electronic applications.
Applications
- Desktop computers, PDAs, and laptops
- Battery chargers
- SCSI-II active terminators
- Mobile phones
- Cordless phones
Key features
- Fixed output voltages: 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5.0V, and adjustable output versions
- Adjustable version output voltage accuracy: 1%
- Fixed voltage output accuracy: 2%
- Low dropout voltage: 1.2V at 1A output current
- Current limiting
- Thermal shutdown
- Temperature range: -40℃ ~ 125℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM7805S2/TR#C2902505HGSEMI · TO-263-2 | HGSEMI | TO-263-2 | On request | ₹38.37 · 0 in stock | View |
 | LM7805CS2/TR#C7432232HGSEMI · TO-263-2 | HGSEMI | TO-263-2 | 275 | ₹40.79 · 275 in stock | View |
