UMWDatasheet (PDF)

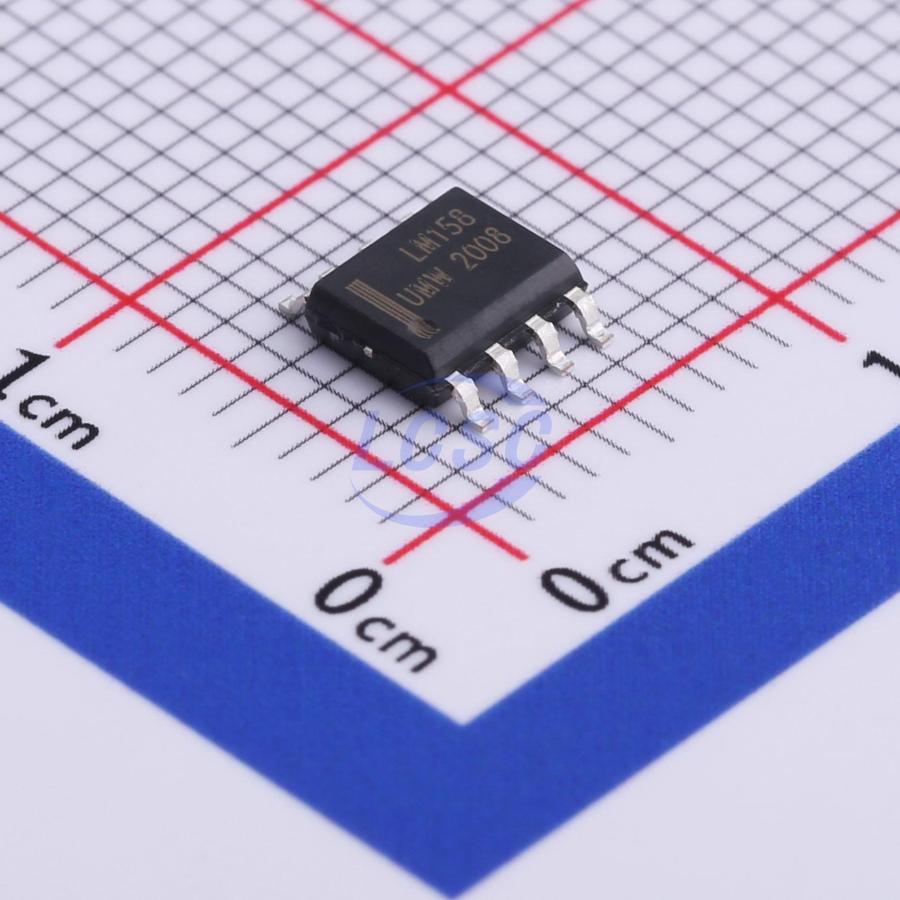

LM158DR(UMW)
Standard (General Purpose) Amplifier 2 Circuit SOIC-8
SOIC-8ROHS CompliantActive
Dual Operational Amplifier
- Manufacturer
- UMW
- Manufacturer part #
- LM158DR(UMW)
- Store part #
- C668210
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14,890 in stock
#C668210
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.16 | ₹60.80 |
| 50+ | ₹9.55 | ₹477.50 |
| 150+ | ₹8.26 | ₹1,239.00 |
| 500+ | ₹7.28 | ₹3,640.00 |
| 2,500+ | ₹5.60 | ₹14,000.00 |
| 5,000+ | ₹5.20 | ₹26,000.00 |
5 × ₹12.16
₹60.80
excl. GST
₹71.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM158DR(UMW)
₹60.80 for 5 + GST
Specifications
- Output Current
- 20mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 5mV
- Slew Rate
- 600V/ms
- Input Offset Current(Ios)
- 3nA
- Operating Temperature
- -40℃~+105℃
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Ib - Input Bias Current
- 300nA
- Input Offset Voltage Drift(Vos TC)
- 7uV/℃
- Gain Bandwidth Product
- 1.1MHz
- Quiescent Current
- 500uA
- Input Voltage Noise Density
- 55nV/√Hz@1kHz
- Dual Supply
- -16V~16V
- Single Supply
- 0V~32V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.2 g
Overview
The LM158 contains two independent high-gain operational amplifiers. It operates from either a single or dual supply, with supply current independent of supply voltage. Applications include frequency converters, DC gain modules, and all conventional op-amp circuits. Available in DIP8 or SOP8 packages.
Key features
- Single-supply or dual-supply operation
- Dual internally compensated op-amps in a single package
- Matched logic circuits
- Low power consumption
- Wide frequency range
