UMWDatasheet (PDF)

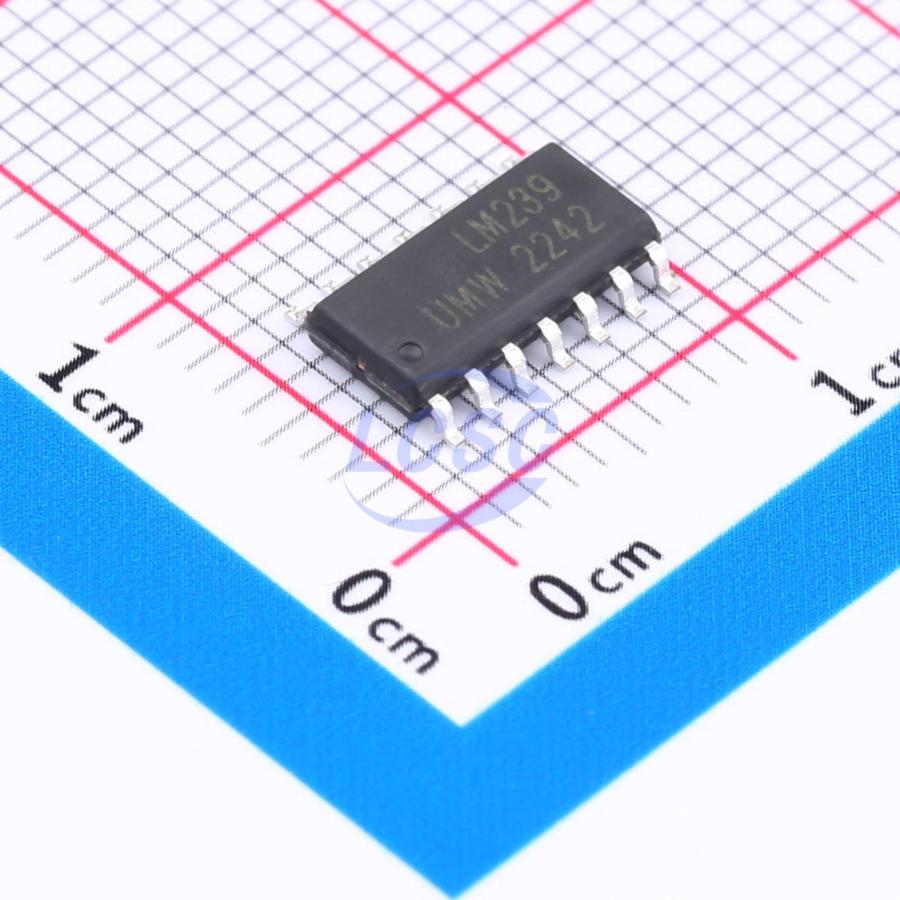

LM239DR(UMW)
2mV 25nA Four channels SOP-14 Linear Comparators RoHS
SOP-14ROHS CompliantActive
- Manufacturer
- UMW
- Manufacturer part #
- LM239DR(UMW)
- Store part #
- C5236696
- Package / case
- SOP-14
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
32,005 in stock
#C5236696
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.30 | ₹66.50 |
| 50+ | ₹10.56 | ₹528.00 |
| 150+ | ₹9.19 | ₹1,378.50 |
| 500+ | ₹8.16 | ₹4,080.00 |
| 2,500+ | ₹6.67 | ₹16,675.00 |
| 5,000+ | ₹6.26 | ₹31,300.00 |
5 × ₹13.30
₹66.50
excl. GST
₹78.47 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM239DR(UMW)
₹66.50 for 5 + GST
Specifications
- Quiescent Current
- 800uA
- Output Mode
- TTL;CMOS
- Propagation Delay Time
- 300ns
- Operating Temperature
- -25℃~+85℃
- Dual Supply
- 1V~18V;-18V~-1V
- Vos - Input Offset Voltage
- 2mV
- Ib - Input Bias Current
- 25nA
- Number of Channels
- Four channels
- Input Offset Current(Ios)
- 5nA
- Single Supply
- 2V~36V
- Response Time (tr)
- 1.3us
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.27 g
Overview
Key features
- Wide supply voltage range
- Single supply: 2V to 36V (non-V suffix devices tested to 30V, V suffix devices tested to 32V)
- Dual supply: ±1V to ±18V (non-V suffix devices tested to ±15V, V suffix devices tested to ±16V)
- Low supply current drain, independent of supply voltage: 0.8mA (typical)
- Low input bias current: 25nA (typical)
- Low input offset current: 3nA (typical) (LM139)
- Low input offset voltage: 2mV (typical)
- Common-mode input voltage range includes ground
- Differential input voltage range equal to maximum rated supply voltage: ±36V
- Low output saturation voltage
- Output compatible with TTL, MOS, and CMOS
