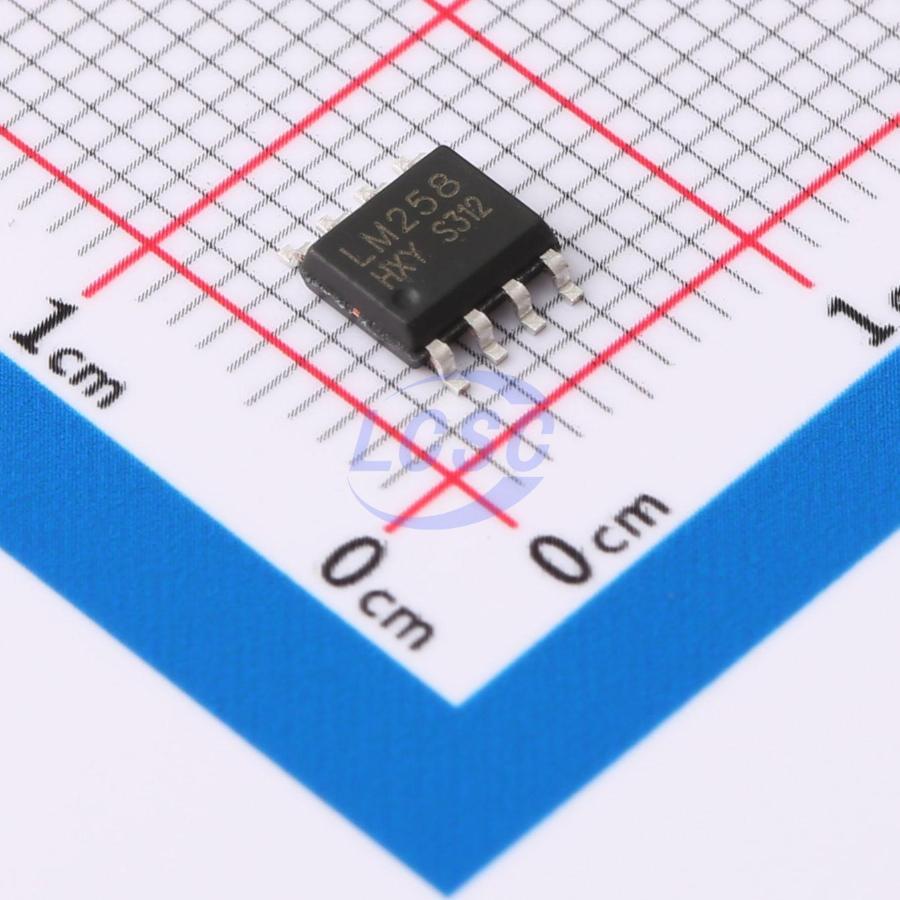

HXY MOSFET

LM258

Standard (General Purpose) Amplifier 2 Circuit SOP-8

SOP-8RoHSActive

Low-power dual operational amplifier

Manufacturer: HXY MOSFET
Manufacturer part #: LM258
Store part #: C6851436
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10,240 in stock

#C6851436

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
10+	₹9.01	₹90.10
100+	₹7.38	₹738.00
300+	₹6.56	₹1,968.00
2,500+	₹5.11	₹12,775.00
5,000+	₹4.62	₹23,100.00
10,000+	₹4.37	₹43,700.00

Quantity (min 10, multiples of 10)

10 × ₹9.01

₹90.10

excl. GST

₹106.32 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

LM258

₹90.10 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 20mA
Number of Channels: 2
Vos - Input Offset Voltage: 5mV
Input Offset Current(Ios): 3nA
Operating Temperature: 0℃~+70℃
Common Mode Rejection Ratio(CMRR): 90dB
Ib - Input Bias Current: 45nA
Quiescent Current: 500uA
Dual Supply: -16V~16V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.188 g

Overview

The LM258 consists of two independent high-gain op-amps supporting single-supply or dual-supply operation, with supply current draw independent of supply voltage, available in DIP-8 and SOP-8 packages.

Applications

Audio amplifiers
Industrial control
DC gain stages
All general-purpose op-amp circuits

Key features

Single or dual supply operation
Dual op-amp configuration
Logic circuit compatible
Low power consumption
Wide frequency range
