TDSEMICDatasheet (PDF)

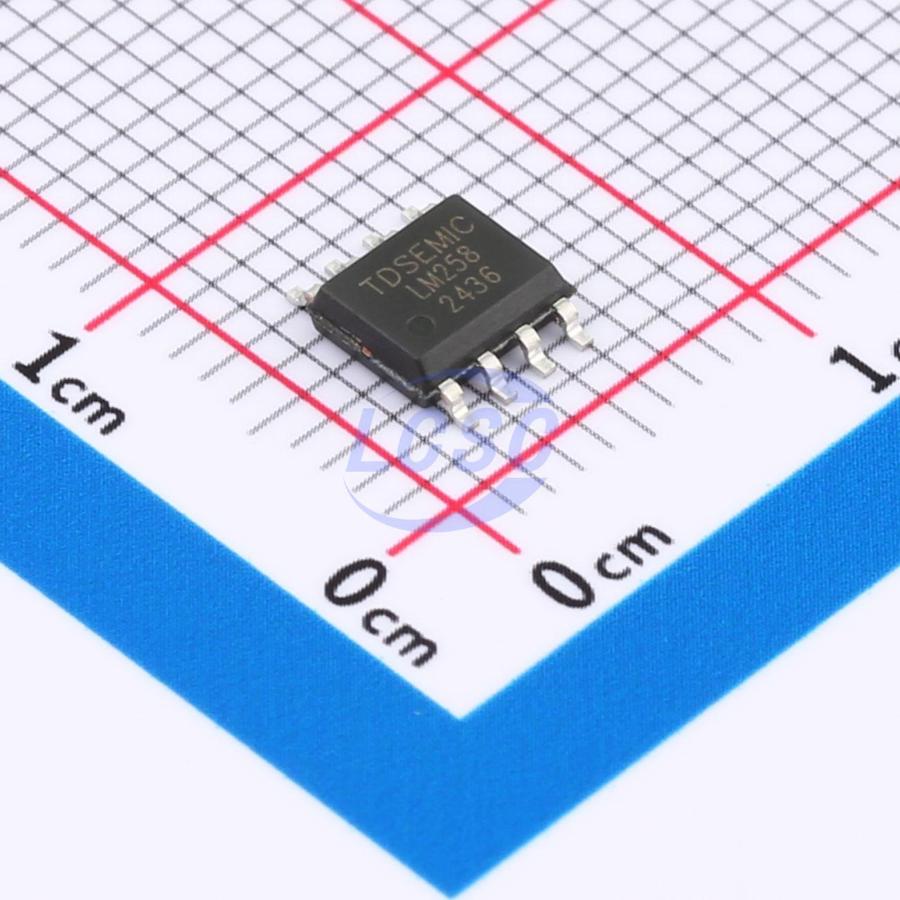

LM258-TD
24mA 2 3mV 80dB 50nA 500uA 1.2MHz SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-8ROHS CompliantActive
Dual low-power differential operational amplifier
- Manufacturer
- TDSEMIC
- Manufacturer part #
- LM258-TD
- Store part #
- C42421952
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,910 in stock
#C42421952
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.03 | ₹80.30 |
| 100+ | ₹6.36 | ₹636.00 |
| 300+ | ₹5.52 | ₹1,656.00 |
| 1,000+ | ₹4.90 | ₹4,900.00 |
| 5,000+ | ₹4.39 | ₹21,950.00 |
| 10,000+ | ₹4.14 | ₹41,400.00 |
10 × ₹8.03
₹80.30
excl. GST
₹94.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LM258-TD
₹80.30 for 10 + GST
Specifications
- output type
- Differential
- Output Current
- 24mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 3mV
- Input Offset Current(Ios)
- 10nA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 50nA
- Maximum Power Supply Range (Vdd-Vss)
- 36V
- Power Supply Rejection Ratio (PSRR)
- 90dB
- Quiescent Current
- 500uA
- Gain Bandwidth Product
- 1.2MHz
- Dual Supply
- -18V~18V
- Single Supply
- 3V~36V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.158 g
Overview
The LM258-TD contains two independent, high-gain, internally frequency-compensated operational amplifiers. It can operate from either a single supply or a split supply.
Applications
- General-purpose amplifier
Key features
- Internal frequency compensation, unity-gain stable.
- Wide supply voltage range: 3V ~ 30V.
- Input common-mode voltage range includes ground.
- High DC voltage gain.
