GREENMICRODatasheet (PDF)

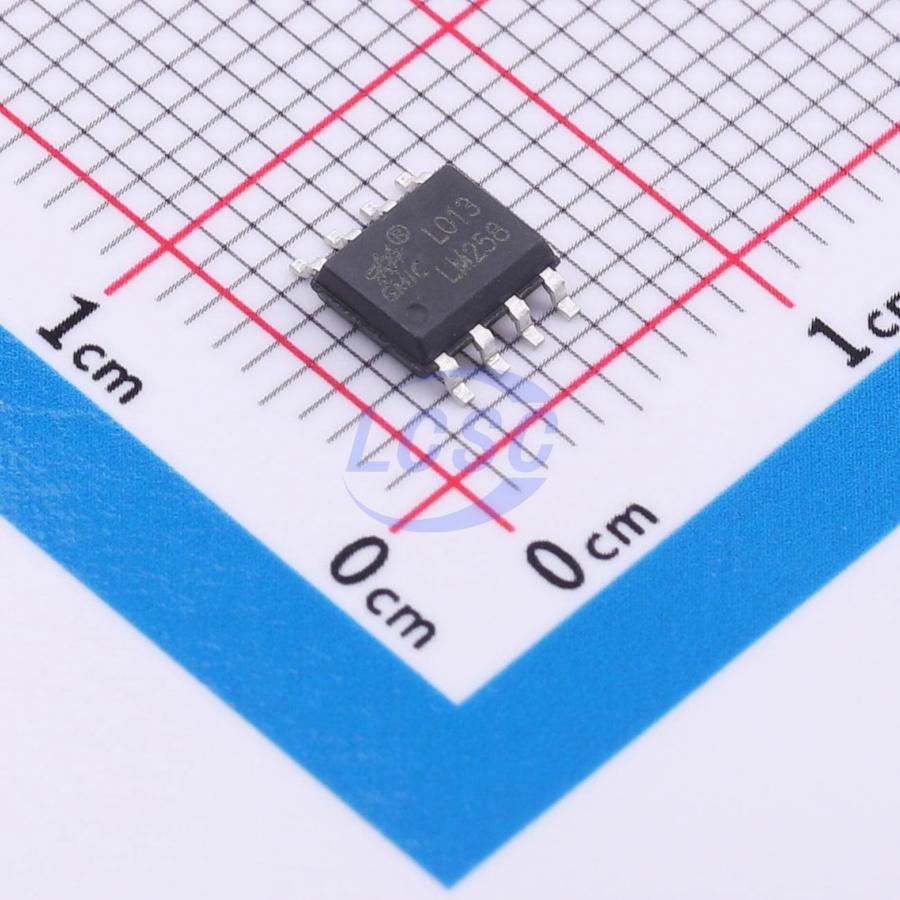

LM258DR013
40mA 2 1mV 400V/ms 90dB 25nA 1MHz 500uA SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
- Manufacturer
- GREENMICRO
- Manufacturer part #
- LM258DR013
- Store part #
- C51026319
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,870 in stock
#C51026319
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.45 | ₹84.50 |
| 100+ | ₹6.72 | ₹672.00 |
| 300+ | ₹5.85 | ₹1,755.00 |
| 2,500+ | ₹5.20 | ₹13,000.00 |
| 5,000+ | ₹4.67 | ₹23,350.00 |
| 10,000+ | ₹4.42 | ₹44,200.00 |
10 × ₹8.45
₹84.50
excl. GST
₹99.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM258DR013
₹84.50 for 10 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 1mV
- Slew Rate
- 400V/ms
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -25℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Ib - Input Bias Current
- 25nA
- Input Offset Voltage Drift(Vos TC)
- 7uV/℃
- Gain Bandwidth Product
- 1MHz
- Quiescent Current
- 500uA
- Features
- Built-in compensation
- Dual Supply
- -18V~-1.5V;1.5V~18V
- Single Supply
- 3V~36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.194 g
Overview
The LM258 consists of two independent high-gain op-amps. It operates from single or dual supplies with very low quiescent current independent of supply voltage. Applications include audio amplifiers, industrial control, DC gain modules, and all conventional op-amp circuits. Available in DIP8, SOP8, MSOP8, and TSSOP8 packages.
Key features
- Unity-gain internal frequency compensation
- High DC voltage gain: 100dB
- Wide unity-gain bandwidth: 1MHz (temperature compensated)
- Wide supply voltage range: single supply 3V~36V, or dual supply ±1.5V~±18V
- Very low quiescent current: 500μA — essentially independent of supply voltage
- Low input offset voltage: 2mV
- Input common-mode voltage range includes ground
- Differential input voltage range equal to supply voltage
- Large output voltage swing: 0V to V+ - 1.5V
