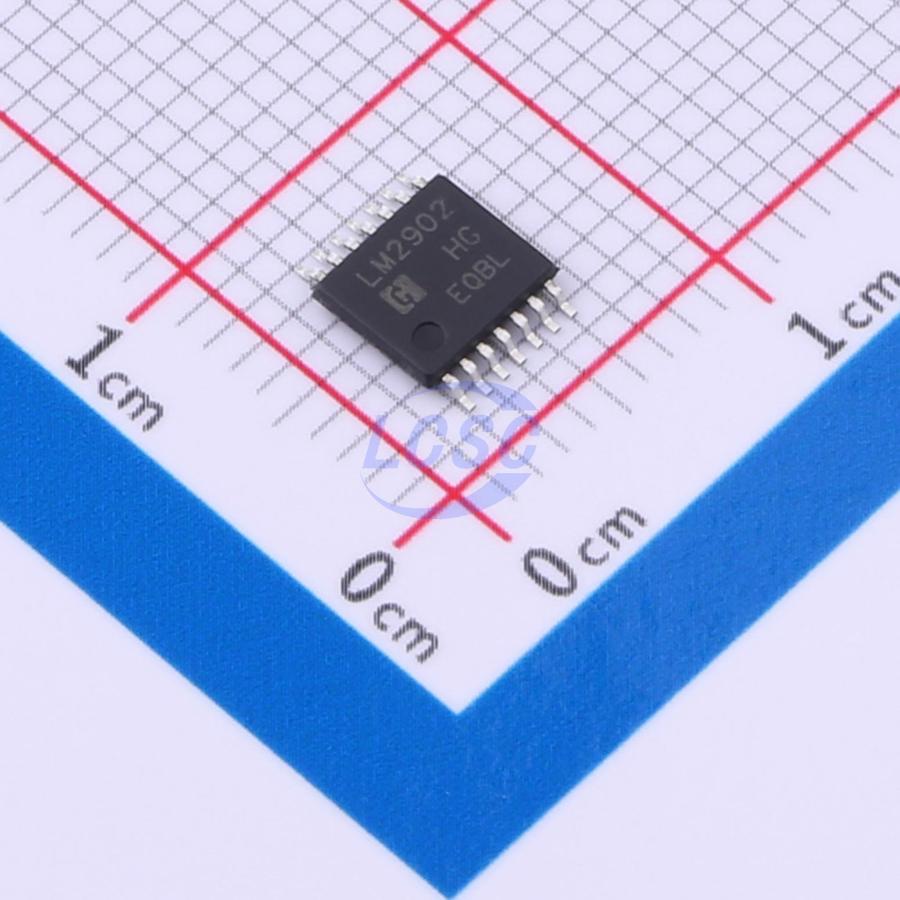

LM2902MT/TR

40mA 4 2mV 400V/ms 20nA 80dB 375uA 1.3MHz TSSOP-14 Instrumentation, Op Amps, Buffer Amps

TSSOP-14RoHSActive

Low-power quad operational amplifier: wide gain bandwidth of 1.3 MHz, large voltage gain of 100 dB, extremely low supply current of 375 μA

Manufacturer: HGSEMI
Manufacturer part #: LM2902MT/TR
Store part #: C5116315
Package / case: TSSOP-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,930 in stock

#C5116315

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹16.05	₹80.25
50+	₹12.71	₹635.50
150+	₹11.05	₹1,657.50
500+	₹9.80	₹4,900.00
2,500+	₹8.67	₹21,675.00
5,000+	₹8.16	₹40,800.00

Quantity (min 5, multiples of 5)

5 × ₹16.05

₹80.25

excl. GST

₹94.70 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

LM2902MT/TR

₹80.25 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 40mA
Number of Channels: 4
Vos - Input Offset Voltage: 2mV
Slew Rate: 400V/ms
Input Offset Current(Ios): 2nA
Operating Temperature: -40℃~+85℃
Ib - Input Bias Current: 20nA
Common Mode Rejection Ratio(CMRR): 80dB
Input Offset Voltage Drift(Vos TC): 7uV/℃
Quiescent Current: 375uA
Gain Bandwidth Product: 1.3MHz
Input Voltage Noise Density: 40nV/√Hz@1kHz
Dual Supply: 1.5V~15V;-15V~-1.5V
Single Supply: 3V~30V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.2 g

Overview

This circuit consists of four independent, high-gain, internally frequency-compensated operational amplifiers, specifically designed for automotive and industrial control systems. It operates from a single supply over a wide voltage range, or alternatively from dual supplies, with low supply current drain independent of the supply voltage magnitude.

Applications

AC-coupled inverting amplifier
AC-coupled non-inverting amplifier
DC summing amplifier
Non-inverting DC gain
Active bandpass filter
High input impedance adjustable-gain DC instrumentation amplifier
High input impedance DC differential amplifier
Low-drift peak detector
Input current reduction using complementary amplifiers (general concept)

Key features

Wide gain bandwidth: 1.3MHz
Input common-mode voltage range includes ground
High voltage gain: 100dB
Ultra-low supply current/amplifier: 375µA
Low input bias current: 20nA
Low input offset current: 2nA
Wide supply range: Single supply: +3V ~ +30V; Dual supply: ±1.5V ~ ±15V
Package types: DIP-14, SOP-14, TSSOP-14, QFN-16 3×3
