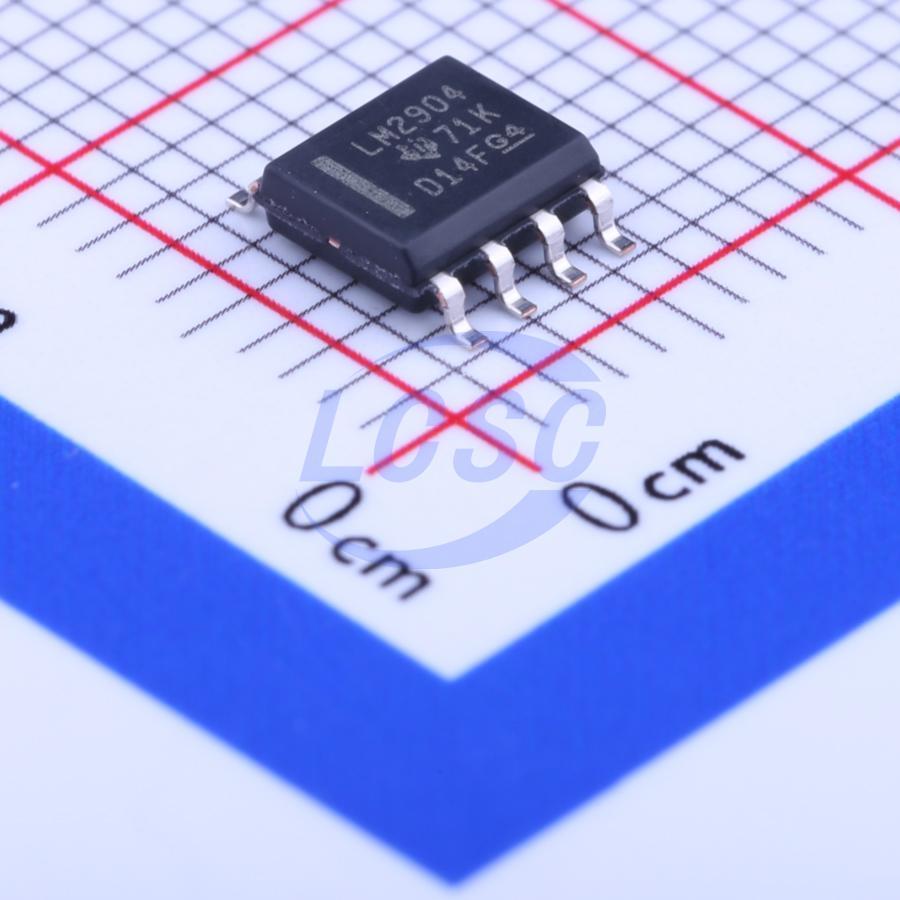

LM2904DR
30mA 2 3mV 300V/ms 80dB 20nA 700uA 700kHz SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
Dual Operational Amplifiers
- Manufacturer
- TI
- Manufacturer part #
- LM2904DR
- Store part #
- C7934
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,63,155 in stock
#C7934
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.64 | ₹58.20 |
| 50+ | ₹9.41 | ₹470.50 |
| 150+ | ₹8.26 | ₹1,239.00 |
| 500+ | ₹7.30 | ₹3,650.00 |
| 2,500+ | ₹6.97 | ₹17,425.00 |
| 5,000+ | ₹6.75 | ₹33,750.00 |
5 × ₹11.64
₹58.20
excl. GST
₹68.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM2904DR
₹58.20 for 5 + GST
Specifications
- Output Current
- 30mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 300V/ms
- Input Offset Current(Ios)
- 50nA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 20nA
- Input Offset Voltage Drift(Vos TC)
- 7uV/℃
- Quiescent Current
- 700uA
- Gain Bandwidth Product
- 700kHz
- Input Voltage Noise Density
- 40nV/√Hz@1kHz
- Dual Supply
- 1.5V~16V;-16V~-1.5V
- Single Supply
- 3V~32V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.173 g
Overview
These devices consist of two independent, high-gain frequency-compensated operational amplifiers designed to operate from a single supply over a wide range of voltages. Operation from split supplies also is possible if the difference between the two supplies is 3 V to 32 V (3 V to 26 V for the LM2904), and VCC is at least 1.5 V more positive than the input common-mode voltage. The low supply-current drain is independent of the magnitude of the supply voltage.
Applications
- transducer amplifiers
- dc amplification blocks
- all the conventional operational amplifier circuits that now can be implemented more easily in single-supply-voltage systems
Key features
- Wide Supply Ranges
- Single Supply: 3 V to 32 V (26 V for LM2904)
- Dual Supplies: ±1.5 V to ±16 V (±13 V for LM2904)
- Low Supply-Current Drain, Independent of Supply Voltage: 0.7 mA Typ
- Wide Unity Gain Bandwidth: 0.7MHz
- Common-Mode Input Voltage Range Includes Ground, Allowing Direct Sensing Near Ground
- Low Input Bias and Offset Parameters
- Input Offset Voltage: 3 mV Typ A Versions: 2 mV Typ
- Input Offset Current: 2 nA Typ
- Input Bias Current: 20 nA Typ A Versions: 15 nA Typ
- Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage: 32 V (26 V for LM2904)
- Open-Loop Differential Voltage Gain: 100dB Typ
- Internal Frequency Compensation
