HGSEMIDatasheet (PDF)

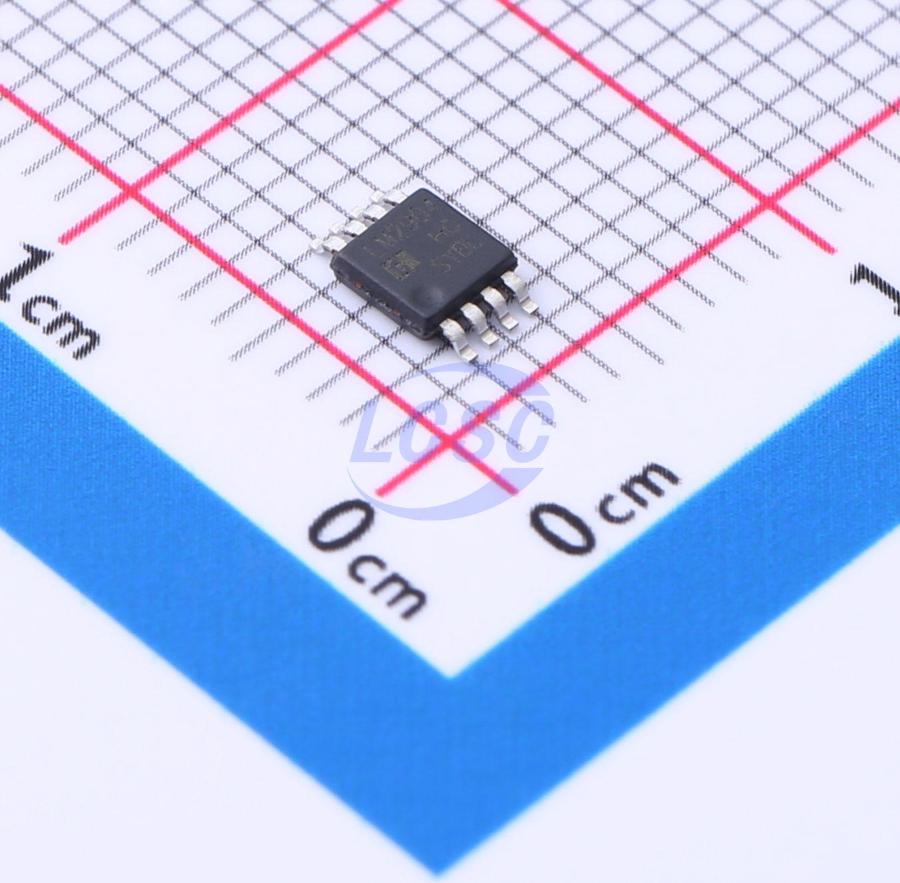

LM2904MM/TR
Standard (General Purpose) Amplifier 2 Circuit MSOP-8
MSOP-8RoHSActive
Dual Low-Power Differential Operational Amplifier
- Manufacturer
- HGSEMI
- Manufacturer part #
- LM2904MM/TR
- Store part #
- C5116312
- Package / case
- MSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,860 in stock
#C5116312
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.46 | ₹104.60 |
| 100+ | ₹8.37 | ₹837.00 |
| 300+ | ₹7.33 | ₹2,199.00 |
| 3,000+ | ₹6.39 | ₹19,170.00 |
| 6,000+ | ₹5.77 | ₹34,620.00 |
| 9,000+ | ₹5.45 | ₹49,050.00 |
10 × ₹10.46
₹104.60
excl. GST
₹123.43 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM2904MM/TR
₹104.60 for 10 + GST
Specifications
- Output Current
- 24mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 5mV
- Input Offset Current(Ios)
- 10nA
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 250nA
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Quiescent Current
- 500uA
- Gain Bandwidth Product
- 1.2MHz
- Dual Supply
- -18V~18V
- Single Supply
- 3V~36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.16 g
Overview
The LM2904 is a dual low-power differential operational amplifier capable of operating from either a single or dual power supply. It features high open-loop gain, internal compensation, wide common-mode input range, excellent temperature stability, and output short-circuit protection. It is widely used in sensor amplification circuits, DC amplifier modules, audio amplification circuits, and conventional op-amp circuit applications.
Applications
- Sensor signal amplifier
- DC gain
- Audio amplifier
- Other applications
Key features
- Internal frequency compensation
- Short-circuit protection
- Low power consumption: typical 0.5mA @ VCC=5
- Single supply voltage range: 3V ~ 36V
- Dual supply voltage range: ±18V
- Unity-gain bandwidth: up to 1.2MHz
- Package types: DIP-8, SOP-8, MSOP-8, DFN-8
